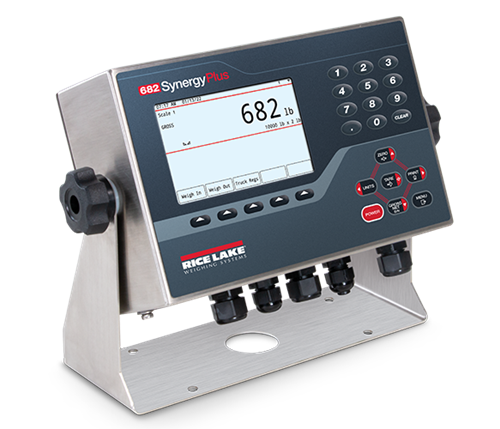

682 Synergy Series Weight Indicator

  • Graphical, LCD color display with configurable softkeys
  • Numeric, tactile keypad for scale operations, numeric entry and navigation
  • Multi-language operation and text entry
  • Formattable tickets
  • Battery backed time and date
  • Multiple communication ports
  • Eight setpoints and 22 configurable types
  • Fieldbus communication using Rice Lake’s SCT-2200 modules and RS-485 port
  • Built-in web server for remote access, systems integration and data monitoring
  • Built-in Truck In/Out application
  • Four onboard configurable digital I/O points, TTL logic
  • Local/Remote

Options

  • Analog output: 16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA
  • Relay card
  • Dual serial card
  • RJ45 Ethernet connector

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW ULCUS CE Mark UKCA Black Fill LOGO EU Certified NAWI

Rice Lake Weighing Systems' 682 Synergy Plus Series digital weight indicator is an advanced solution with the simplicity of a basic weight indicator.

The durable 682 Synergy Series indicator is constructed with 304 stainless steel and has an IP69 ingress rating to stand up to high-pressure, high temperature washdowns found in food processing and other environments.

The 682 indicator has a bright five-inch color LCD screen and configurable softkeys for an interface that is easy to use.

Advanced Connectivity

The 682 indicator comes standard with advanced communications to take on a wide range of applications. Connections to external devices and networks are available through RS-232 and RS-485 serial ports, USB, Ethernet, fieldbus, Wi-Fi and Bluetooth®. This digital weight indicator also has a built-in web server for easy remote monitoring and process control.

Truck Weighing

The 682 indicator has an integrated truck in/out mode specifically designed for vehicle scale applications. This mode stores the transaction after each weigh-out with truck ID, gross, tare and net weights. Transactions may be printed or cleared at any time.

Power:
Line Voltage: 100 to 240 VAC, 50/60Hz
Optional: 9 to 23 VDC

Power Consumption:
3.2W (AC) with one 350 ohm load cell, 15W max;
4W with four 350 ohm load cells or eight 700 ohm load cells

Excitation Voltage:
10 VDC (± 5 VDC), 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-5 mV to +70 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1 μV/graduation recommended

A/D Sample Rate:
6.25 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 count
Display: 1,000,000

System Linearity:
Within 0.01% full scale

Digital I/O:
Four configurable I/O, 5V logic

Communication Ports:
Two RS-232 (three-wire)
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)
Wi-Fi
Bluetooth®

Annunciators:
Zero, Gross/Net, Tare, Wi-Fi, Bluetooth®

Display:
Five-inch LCD, 800 × 480 pixel, 500 NIT

Keys/Buttons:
Flat membrane panel, tactile feel
18 buttons plus 5 softkeys and power

Dimensions:
(L x W x H)
11.6 × 8.6 × 4.0 in
(295 × 218 × 102 mm)
With RJ45 option:
11.6 × 8.6 × 4.5 in
(295 × 218 × 114 mm)



Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
IP69K (IP66 with RJ45 option)
AISI 304 Stainless Steel

Weight:
6.25 lb (2.84 kg)

Warranty:
Two-year limited

Approvals:
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C, Class III/IIIHD,
10,000d
OIML pending
EU-NAWI pending
cULus
CE Marked
UKCA



Dimensions
A 10 in (254 mm) D 6.0 in (152 mm) G 4.0 in (102 mm)
B 9.5 in (241 mm) E 11.6 in (295 mm)
C 8.6 in (218 mm) F 3.5 in (89 mm)





Resources / Downloads

Title Download Email
682 Synergy Series Catalog Page Download Email

Title Size Download Email Category
682 Fieldbus Configuration Files 72.9 KB Download Email

Title Version Revision Download Email Category Archived
682 Synergy Plus Weight Indicator Technical Manual 1 B Download Email Indicators / Controllers|Weight Indicators No
Synergy Series Single Analog Output Option Card Addendum B Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware/Options No
Synergy Series Dual Serial Option Card Installation Addendum A Download Email Indicator Hardware|Indicator Hardware/Options|Weight Indicators|Indicators / Controllers No
Synergy Series Relay Option Card Installation Addendum A Download Email Indicator Hardware|Indicators / Controllers|Indicator Hardware/Options|Weight Indicators No
682 Synergy Plus Indicador digital de pesaje Manual técnico (Latin Spanish) 1 A Download Email Weight Indicators|Indicators / Controllers No
Serie Synergy Tarjeta de opción de salida analógica simple (Latin Spanish) B Download Email Indicator Hardware|Indicator Hardware/Options No
Serie Synergy Instalación de la tarjeta opcional serial dual (Latin Spanish) A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No
Serie Synergy Instalación de la tarjeta opcional de relé (Latin Spanish) A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No
480, 482, 680 and 682 Panel Mount Option D Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware/Options No

Title Collateral Wizard Request Download Email Category
682 Synergy Plus Digital Weight Indicator Download Email Indicators / Controllers|Weight Indicators
Synergy Series Digital Weight Indicators Matrix Download Email
Rice Lake Indicator Family Matrix Request Download Email Indicators / Controllers

Title Version Size Release Date Download Email
682 Synergy Plus Firmware 1.02.00 922 KB 09/08/2022 Download Email

Title View Download Email Category
682 Synergy Plus Batching Capabilities View Download Email
682 Synergy Plus Truck Mode View Download Email

Parts
