A&D Inspection Checkweighers

AD-4961 Checkweighers

  • Stainless steel, IP65 rated
  • Seven-inch, color touchscreen
  • Modbus RTU/Modbus TCP standard
  • Rejecter output, alarm output, metal detector input, RS-232C, TCP/IP and USB port

*Assembly is required

AD-4971 Metal Detector

  •  Protected from dust and water to IP65 standards.Hygienic design with the entire system washable
  •  Suitable for use in HACCP program
  •  Automatic sensitivity setting function
  •  Easy operation with 7 inch color touch panel
  •  Variable belt speed of 10-60m/min
  •  Standard Ethernet I/O allowing easy networking via LAN
  •  Inspection history function with the ability to record 100 inspection results in the internal memory
  •  Detachable conveyor belt

*Assembly is required

Precision Checkweighing and Metal Detection-The Inspection Series

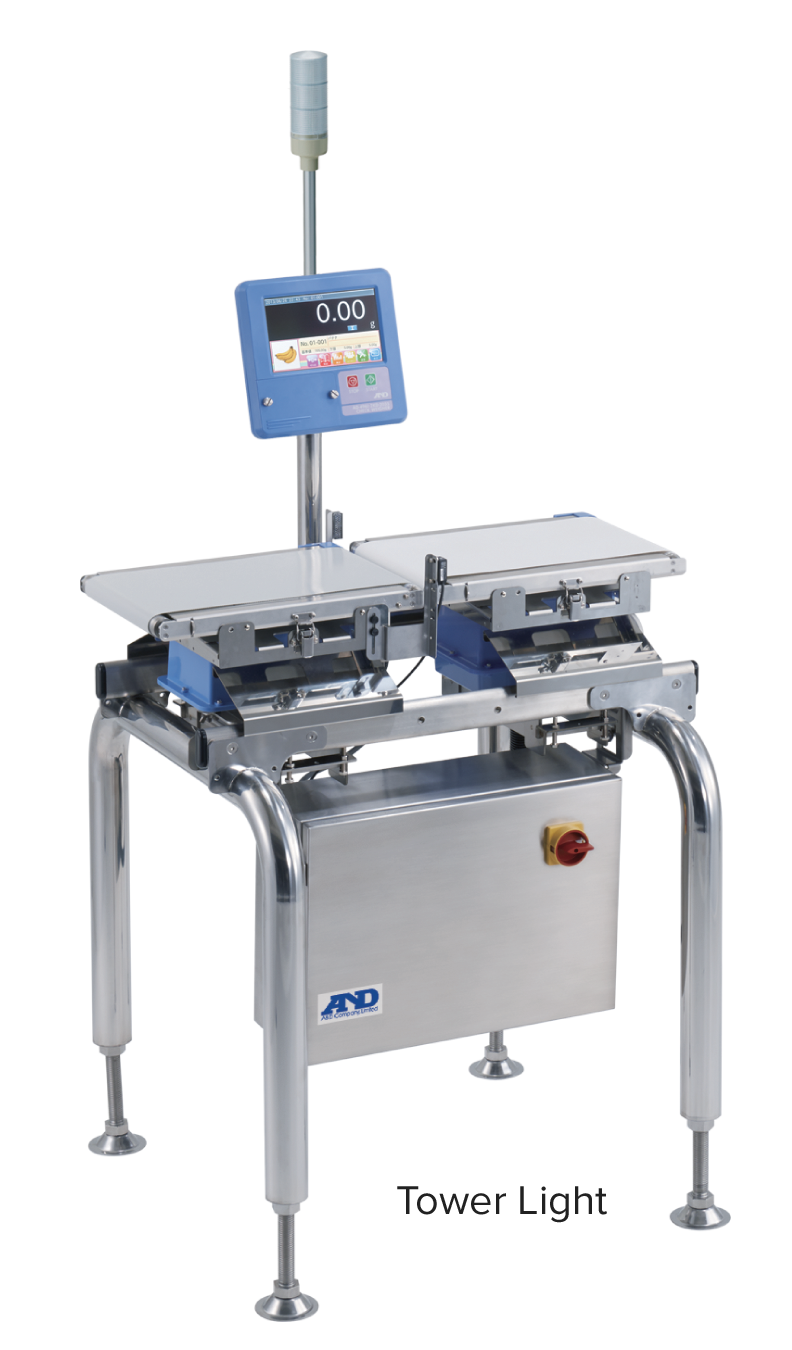

AD-4961 Checkweigher

Checkweighing with unparalleled simplicity and best-in-class precision is possible with the AD-4961. The A&D Inspection series checkweigher has a newly developed digital load cell with precise checkweighing within 0.08 grams. This level of precision minimizes the giveaway of materials above the specified weight, while also maintaining a high maximum speed of 320 pieces per minute. The AD-4961 utilizes a modular, IP65 stainless steel design for an entire system washdown, and its seven-inch color touchscreen provides a graphic user-friendly interface for easy system operation.

AD-4971 Metal Detector

Metal detection simplified, the A&D metal detector is capable of detecting metal contaminants in products, contributing to the delivery of safe goods to customers. The AD-4971 provides high-sensitivity detection with an automatic sensitivity setting, and its seven-inch color touch panel with a graphic interface offers simple and user-friendly operation. The system is protected from dust and water to IP65 standards with its hygienic, washable design, suitable for use in HACCP applications.



Specification AD-4961-600-1224 AD-4961-2KD-2035 AD-4961-6K-3050 AD-4971 Metal Detector
Capacity 600g 500g/2,000g 6,000g N/A
Resolution 0.01 g 0.01 g/0.1 g 0.1 g N/A
Accuracy 0.08 g 0.08 g/0.18 g 1.0 g N/A
Construction IP65 stainless steel construction with ABS resin display IP65 stainless steel construction with ABS resin display IP65 stainless steel construction with ABS resin display and stainless steel control box and base IP65 stainless steel construction with ABS resin display
Aperture Sizes N/A N/A N/A From 13.7 in x 3.9 in to 17.7 in x 9.8 in
Display 7 in color touchscreen 7 in color touchscreen 7 in color touchscreen 7 in color touchscreen
Alarm Included Included Included Included
Configurations Checkweigher or conveyor scale Checkweigher or conveyor scale Checkweigher or conveyor scale Checkweigher or conveyor scale
Speed Up to 240 ft per minute Up to 240 ft per minute Up to 240 ft per minute Up to 196 ft per minute
Max Throughput 150 pcs per min 150 pcs per min 100 pcs per min N/A
Belts Food grade urethane belt Food grade urethane belt Food grade urethane belt Food grade urethane belt
Belts Width 4.7 in 7.8 in 11.8 in Model dependent
Conveyor Length 14.2 in 13.7 in 19.6 in Model dependent
Recorded Items 1,000 items (ten groups
x 100 items)
1,000 items (ten groups
x 100 items)
1,000 items (ten groups
x 100 items)
1,000 items
Communication Modbus TCP, Modbus RTU, RS-232, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use) Modbus TCP, Modbus RTU, RS-232, RS-485, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use) Modbus TCP, Modbus RTU, RS-232, RS-485, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use) Modbus TCP, Modbus RTU, Ethernet TCP/IP (PostScript Printer), USB (for PostScript Printer, USB memory, data storage, image import use)
Input/Output External input for four non-voltage contact points
External output for eight
relay points
External input for four non-voltage contact points
External output for eight
relay points
External input for four non-voltage contact points
External output for eight
relay points
External input for four non-voltage contact points
External output for eight
relay points
Power Configuration 100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA 100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA 100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA 100 VAC-240 VAC (+10%/-15%) single phase, 50/60 Hz; 180 VA
Operating Temperature 23°F to 104°F (-5°C to 40°C) 23°F to 104°F (-5°C to 40°C) 23°F to 104°F (-5°C to 40°C) 32°F to 104°F (0°C to 40°C)
External Dimensions (L x W x H) 26 in x 23.7 in x 28.1 in-33.9 in (L x W x H) 27.5 in x 25.9 in x 27.9 in-33.8 in (L x W x H) 39.5 in x 28.9 in x 28.3 in-34.2 in Model dependent





Resources / Downloads

Title Download Email
A&D Inspection Checkweigher and Metal Detector Catalog Page Download Email

Title Download Email
A&D Weighing AD-4961 Series Replacement Parts Download Email

Parts

AD-4961-600-1224 600g Checkweigher

Part # Description List Price Cart
186317 EZICheck 600g Checkweigher

List Price: $16,115.00

AD-4961-600-1224 600g Rejector

AD-4961-2K-2035 2kg Checkweigher

AD-4961-2K-2035 2kg Rejector

AD-4961-6K-3050 6kg Checkweigher

AD-4961-6K-3050 6kg Rejector

AD-4971 Metal Detector

Options

AD-4961-600-1224 600g Options/Accessories

Part # Description List Price Cart
186319 EZICheck 600g Breeze Break

List Price: $715.00

176622 EZICheck Leg Extensions Set of 4, Required for greater than 850mm line height

List Price: $495.00

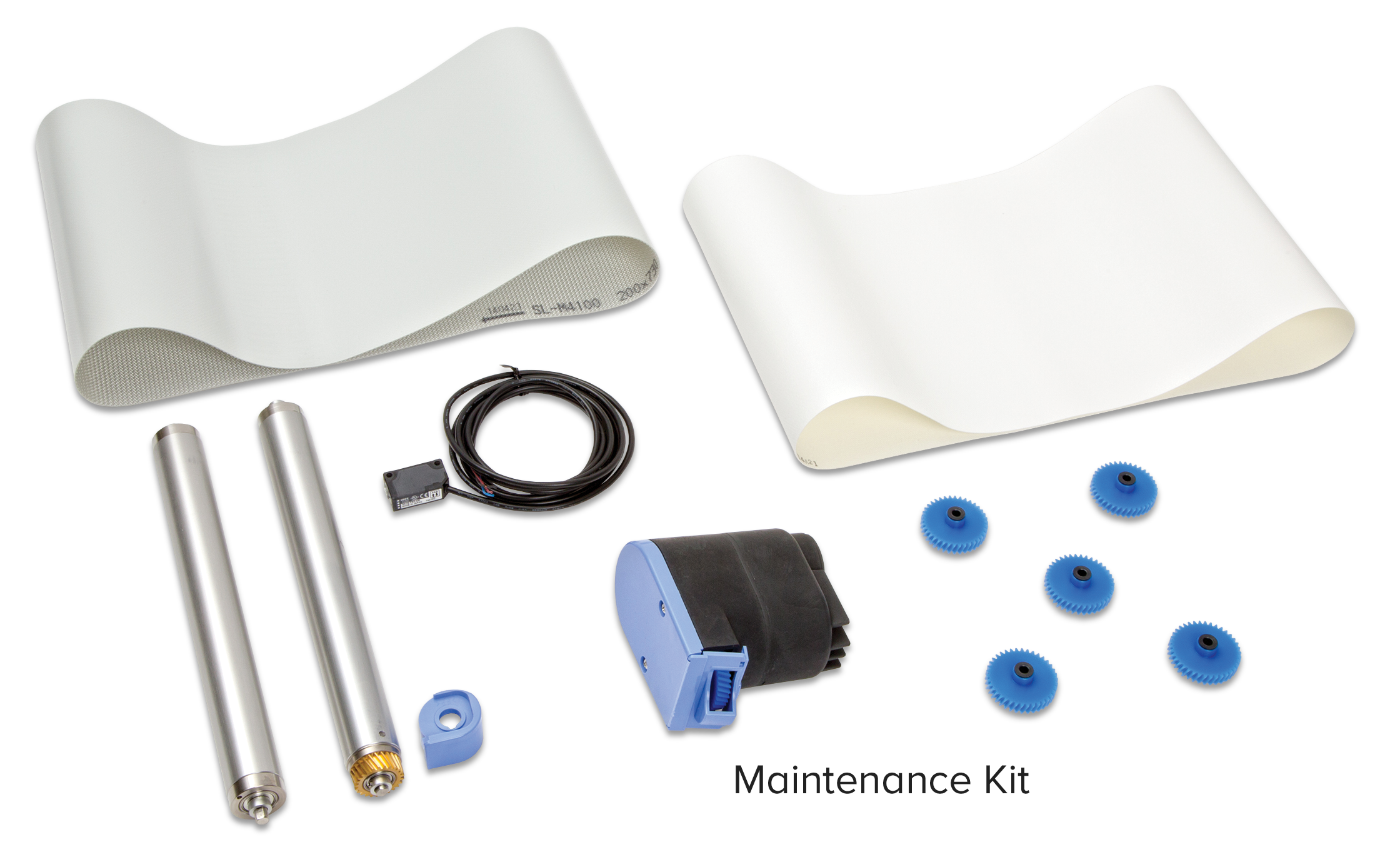

186320 EZICheck Maintenance Kit 600g

List Price: $2,695.00

203601 EZICheck Caster Package Set of 4 for 1 frame.

List Price: $1,825.00

AD-4961-2K-2035 2kg Options/Accessories

AD-4961-6K-3050 6kg Options/Accessories

AD-4971 Metal Detector

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
