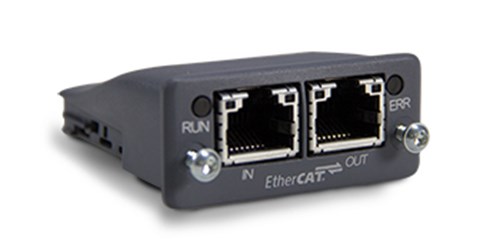

EtherCAT Interface 880/882D/882IS/1280

  • Two RJ-45 EtherCAT 100 Mbit/s ports available simultaneously
  • Can be wired in several topologies including star, line or tree
  • Has built-in redundancy that compensates for potential breaks in wiring
  • No network switches necessary, can be wired directly from device to device
  • Includes self-terminating network
  • Onboard diagnostic LEDs
  • CE, cULus and RoHS compliant

3.3 VDC, 500 mA

Connector Type:
RJ-45 (dual port)

Diagnostic LEDs:
Module status and network status

2.04 × 1.97 × 0.86 in
(52 × 50 × 22 mm)

Temperature Range:
-40 °F to 158 °F (-40° C to 70 °C)

Resources / Downloads

Title Download Email
EtherCAT for 880/1280 Catalog Page Download Email

Title Version Revision Download Email Category Archived
1280 Fieldbus EtherCAT® Installation and Programming Manual C Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware|Indicator Hardware/Options No
1280/880 Interface Option Card Installation Addendum Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
880 EtherCAT Interface Option Card Installation and Programming Manual B Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware/Options|Indicator Hardware No


Part # Description List Price Cart
179158 Ind Opt,EtherCat Model 880 Indicator

List Price: $600.00

179533 1280 Opt,EtherCAT CompactCom Option

List Price: $620.00

190535 882 Opt,EtherCAT CompactCom Option

List Price: $620.00


Part # Description List Price Cart
164394 LIT,Fieldbus Manual EtherCAT 1280 Interface Option Card Installation and Programming (English)

Call for price
