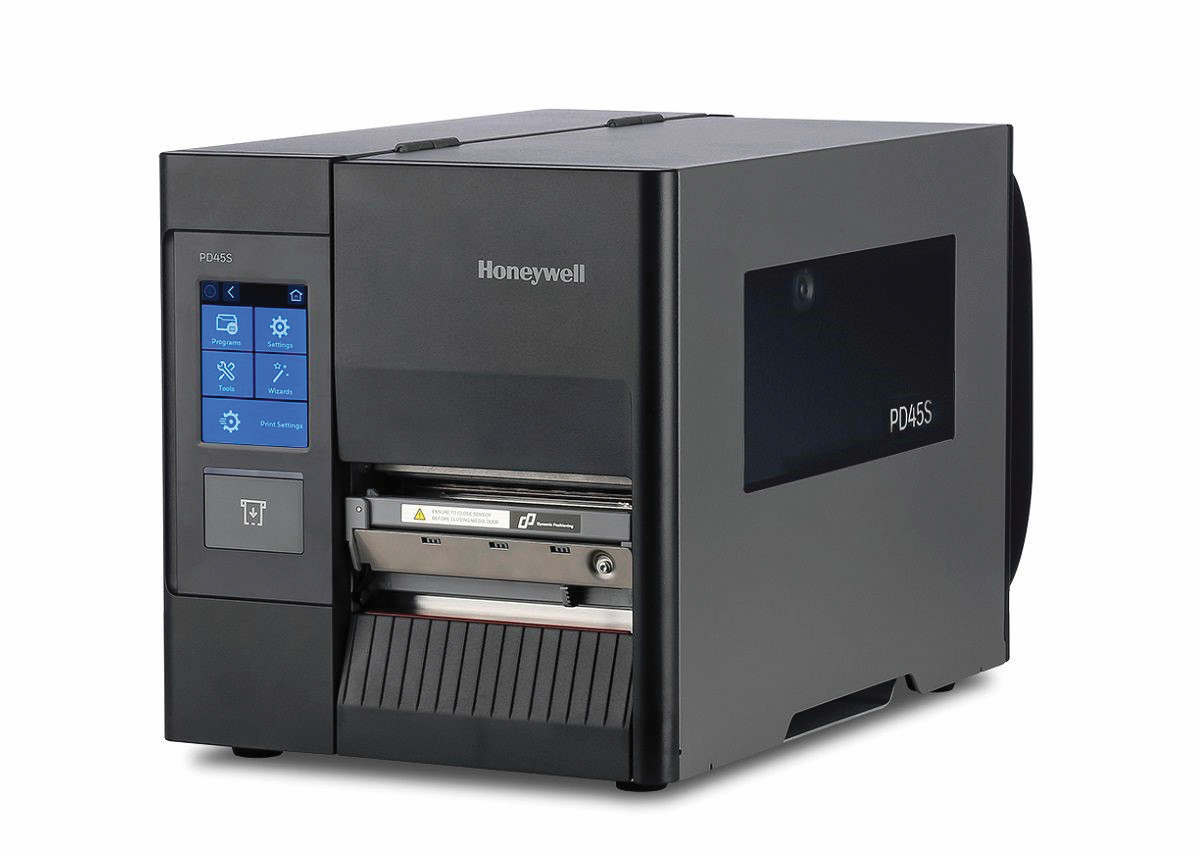

Honeywell PD45S Direct Thermal / Thermal Transfer Label Printer

(Replacing M-Class Printers)

  • 203 dpi or 300 dpi
  • Serial, USB, wired TCP/IP
  • Real-time clock
  • Color graphical display


  • Consult (to be determined)


Some approval documents are available to view by clicking the icons below.

CE Mark LOGO FCC Notext UL Listed CSA

WARNING: Cancer and Reproductive Harm California Proposition 65

Print Speed:
203 dpi: 2 to 10 ips
300 dpi: 2 to 8 ips

Supply Roll Capacity:
8 in (203 mm) O D on 1.5 to 3.0 in (38 mm to 76.2 mm) cores
Fanfold stock accepted from rear and bottom of printer

Bar Code Modulus:
5 mil to 55 mil “X” dimension in picket fence or ladder orientations

Media Width:
0.75 to 4.5 in (17 to 114 mm)

Media Type:
Roll fed or fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock

Print Length:
0.25 to 99 in (6 to 2,475 mm)

Media Thickness:
0.0025 to .01 in (0.0635 to 0.254 mm)

Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved
2 of 5, Code 128, EAN-8, EAN-13, HIBC,
Codabar, Plessey, UPC 2 and 5 digit
addendums, Code 93, Postnet, UCC/EAN Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec,
TLC 39, Micro PDF417, RSS

Graphics Supported:
.PCX, .BMP and .IMG files

(L x H x W)
438 × 270 × 249 mm
(17.24 × 10.63 × 9.80 in)

10.82 kg (23.85 lbs)

128 MB RAM

Arm Cortex®-A7 800 MHz

Power Source:
Auto-sensing 90 to 132 or 180 to 264 VAC at 47 to 63 Hz

Operating Temperature:
40 °F to 95 °F (4 °C to 35 °C)

One-year limited
Printhead (original): One-year or 1 million linear inches
Printhead (replacement): 90 days

CSA certified
TUV-GS safety standards
WEE compliant

Resources / Downloads

Title View Email Category Type
Give Your Balance a Brain View Email Precision Balances Articles

Title Download Email
Honeywell PD45S Catalog Page Download Email

Title Download Email
Custom Label Format Form Download Email

Title Collateral Wizard Request Download Email Category
Honeywell PD45 Industrial Label Printer, Data Sheet Download Email

Title Version Size Release Date Download Email
Honeywell Label Format Strings 1 7.1 KB 10/19/2009 Download Email
Revolution Format Examples DPL 1 7.6 KB 11/11/2011 Download Email


Part # Description List Price Cart
209079 Printer,Label PD45S With Color Display, Ethernet, Thermal Transfer, 203dpi, Power Cord (15438) Sold Separately.

List Price: $2,000.00

209080 Printer,Label PD45S With Color Display, Ethernet, Thermal Transfer, 203dpi, Peel and Present, Internal Rewind, US Power Cord (15438) Sold Separately

List Price: $2,500.00

209081 Printer,Label PD45S With Color Display, Ethernet, Thermal Transfer, 300dpi, Peel and Present, Internal Rewind, US Power Cord (15438) Sold Separately

List Price: $2,600.00


Part # Description List Price Cart
15438 Power Cord,Detachable 18 AWG, 7.5' Long, C13, 5-15P Plugs, SVT Cord Black

List Price: $25.00

35664 Label,Pre-Saturated Cards 4x6 25/Box for 4in Wide Printers

List Price: $60.00

93181 Film,Printhead Cleaning 4IN Wide, 3/Box

List Price: $21.50

Label Stock/Ribbon (W x L)

Print Head


Related Products

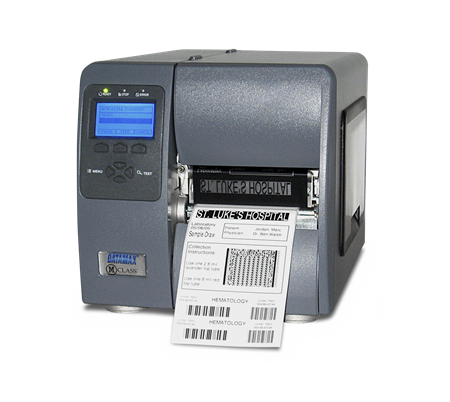

Honeywell Industrial Printer M 4206 M4210 Mark II
