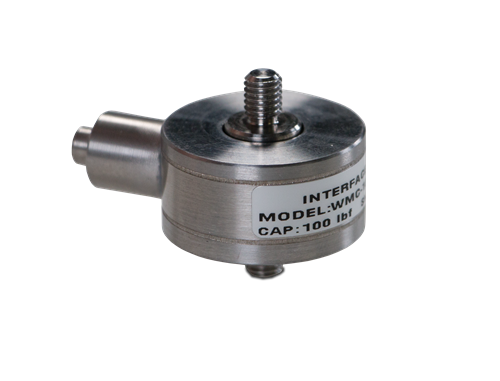

Interface WMC Miniature Sealed Tension/Compression Load Cell

Constructed from stainless steel in capacities ranging from 5 lb to 10,000 lb. The extremely miniature envelope allows for a wide variety of weighing applications in tension or compression. Features 5 ft of cable.

Request More Information
rl-interface-wmc-miniature-sealed-tension-compression-load-cell

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
Stainless steel

Temperature:
Operating range
-65 °F to 250 °F (-54 °C to 121 °C)

Safe Overload:
150% full scale

Rated Excitation:
12 VDC

Nonlinearity:
5 to 500 lb: ± 0.15% full scale
1,000 to 10,000 lb: ± 0.20% full scale

Hysteresis:
5 to 500 lb: ± 0.15% full scale
1,000 to 10,000 lb: ± 0.20% full scale

Insulation Resistance:
> 5,000 megohm

Cable Length:
5 ft

Cable Color Code:
Red  +Excitation
Black –Excitation
White +Signal
Green –Signal

Warranty:
One-year limited

Rated Capacity A B C D E F G H
lb/in
5 to 10 0.45 0.06 0.75 0.25 6-32 UNC  0.50  0.39 1.01
25 to 100 0.52 0.03 1.00 0.25 10-32 UNF  0.50 0.39 1.05
250 to 500 0.53 0.03 1.00 0.38 1/4-28 UNF  0.50 0.39 1.32
1,000 0.53 0.03 1.00 0.38 0.25-28 UNF 0.50 0.39 1.32
2,000 to 3,000 0.72 0.03 1.00 0.50 0.38-24 UNF 0.50 0.39 1.75
5,000 0.94 0.03 1.25 0.63 0.50-20 UNF 0.50 0.39 2.23
7,500 to 10,000 1.09 0.03 1.38 0.88 0.75-16 UNF 0.50 0.39 2.88
