Product PDF

Ishida IP-Ai-P Large Roll Label Printer

  • Large color touchscreen with adjustable viewing angle
  • Front-loading, 9 in (230 mm) label roll capacity
  • Prints all legally required ingredient and nutritional information
  • Stores and prints graphics for custom labels
  • Ethernet communications
  • ScaleLink Pro 5 communications
  • Assign images to category, presets or function keys
  • 21 tactile keys
  • 585 MB of memory
  • 80mm wide printing
  • Up to 150mm/sec print speed
  • Linux operating system
  • Compatible with third-party communication software including Invafresh's ePLUM®, Upshop’s InterScale® and Droste's PCScale Manager
  • 80 mm wide printing
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
Request More Information

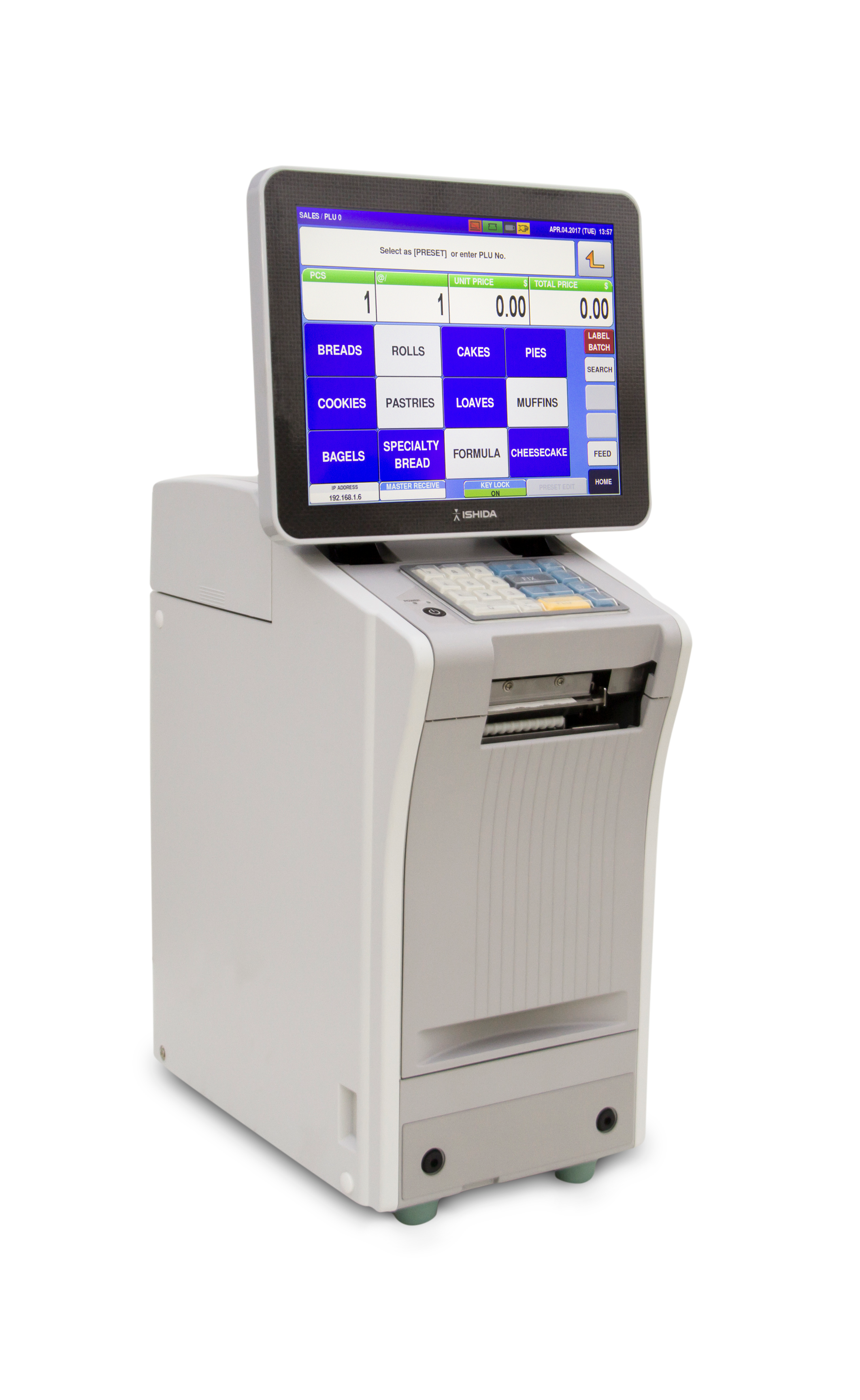

Hdimage(1)

A Retail Label Printer Designed for Bakeries and Grocery Stores

The IP-Ai-P prints at a speed of 4.7 inches per second and, with its unique batching capabilities, is ideal for high-volume printing applications in bakeries. Its custom graphics feature creates stunning labels with all required nutritional and ingredient information, and a fully customizable color touchscreen provides easy access to PLUs via category keys.

The IP-Ai-P features easy label roll front-loading with a nine-inch roll capacity to streamline prepackaging operations. For consistent and accurate pricing, the IP-Ai-P networks with ScaleLink Pro 5 and other third-party product management software.

Operating Environment:
Temperature: 23 °F to 104 °F (-5 °C to 40°C)
Humidity: 20% to 85% (no condensation)

Display Unit:
12.1 in TFT color LCD with LED
backlight SVGA (800 × 600)

Input/Output:
LAN × 1 channel
USB × 4 channel
SD card × 1 channel
(for transaction data)

Memory:
585 MB

Communications:
Static or DHCP TCP/IP 10/100 Base
T Ethernet

Print Head:
3.1 in (80 mm) direct thermal (12 dot/mm)

Print Speed:
3.9/ 4.7/ 5.9 in/sec
(100/ 120/ 150 mm/sec)

Label Size:
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30 to 200 mm)



Label Roll:
Inside diameter: 3.0 in (76 mm) min
Outside diameter: 9.0 in (230 mm) max

Weight:
42 lb (19 kg)

Power Supply:
AC110 to 120V, 50/60Hz, 4A

Power Consumption:
Stand-by: 50W
In operation: 120W

Classification:
UL listed

Warranty:
One-year limited

Resources/Downloads

Title Download Email
IP-Ai-P Base Unit Replacements Parts Page Download Email
IP-Ai-P Cassette Unit Replacements Parts Page Download Email
IP-Ai-P Display Unit Replacements Parts Page Download Email
IP-Ai-P Head Unit Replacements Parts Page Download Email
IP-Ai-P Keyboard Unit Replacements Parts Page Download Email
IP-Ai-P Main Body Frame and Wiring Diagram Replacements Parts Page Download Email
IP-Ai-P Printer Unit Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida IP-Ai-P Label Printer Request Download Email Retail Equipment|Retail Labelers
New FDA Nutrition Label Requirements Download Email Retail Labelers|Retail Equipment
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment

Parts

Part # Description List Price Cart/Quote
220067 Printer, Bakery IP-Ai-P S Ver. CFast, 9 inch OD label support, 115VAC, Ishida

Consult

Options

Part # Description List Price Cart/Quote
47670 Retail Scale OPT,Base Unit Scalemate 27 Deep x 23 Wide x 32 High Scale Shelf 36 inch Overall Height 2 Roll 18 in Max Roll Size 750 Watt 6 x 15 in Heat Pad w/Cover 115 VAC 12ft Power Cord Ishida

Consult
47672 Retail Scale OPT,Wrap Station Wing Left, SM20ES, 200ES, 14 x 22 in, (Scalemate Hand Wrap Station), Heat Seal, Ishida

Consult
102933 Wrap Station,Right Wing w/o Hood 14 x 34 SST, With Support Leg

Consult
53963 Retail Scale OPT,Wrap Station All Purpose Shelf, SM20ES, 200ES 12x24 or 15x24, (Scalemate Hand Wrap Station), Heat Seal, Ishida

Consult
104948 Mounting kit, Handwrap station, Uni-7RP, Uni-9RP 60lb, Uni-3RP, Ishida

Consult
178842 Shelf Assembly, Hand Wrapping Station, IP-Ai, Ishida

Consult
155176 Option,UNI-7 RP POP Label Dispenser with Mounting Hardware for ScaleMate

Consult
151761 Option, Spacer POP label dispenser, Set of 10, Ishida, use for wider core POP labels

List Price: $30.00
53866 Non-Stick Cover,PTFE, Teflon, 6x15, Sealing Plate, (Scalemate Hand Wrap Station), Ishida

Consult
98400 Option,10 Key Cover Clear Membrane Self Adhesive Tenkey SOLD PER EACH OMNi-4000 IP-EMZ WM-4000, WM-Ai, WM-Micro, IP-Ai, IP-Ai-P Ishida

List Price: $66.00
174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

Consult
186485 Base Plate Stabalizer Roll over protection base for IP-AI-P, SST

Consult

Communication

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
