Ishida Uni-9 Hanging PC-Based Scale

  • Adjustable touchscreen viewing angle
  • Customer display can play video
  • Dual-range weighing (0 to 15 lb x 0.005 lb, 15 to 30 lb x 0.01 lb)
  • Label printing: die-cut labels and/or continuous paper
  • Customizable label formats: 999
  • Wireless communication, 802.11 b/g
  • Intra-net browsing capabilities for order entry, recipe lookup and more
  • Solid state drive eliminates moving parts
  • SSD memory 250 MB
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Barcodes: EAN/UPC 8/12/13, ITF FS1, QR CODE, Databar/Limited/Expanded, CODE128, EAN128
  • Up to 150mm/sec print speed
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French, and German
  • Compatible with third-party communication software, including ADC's InterScale, Invatron's PLUM and Droste's PCScale Manager

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

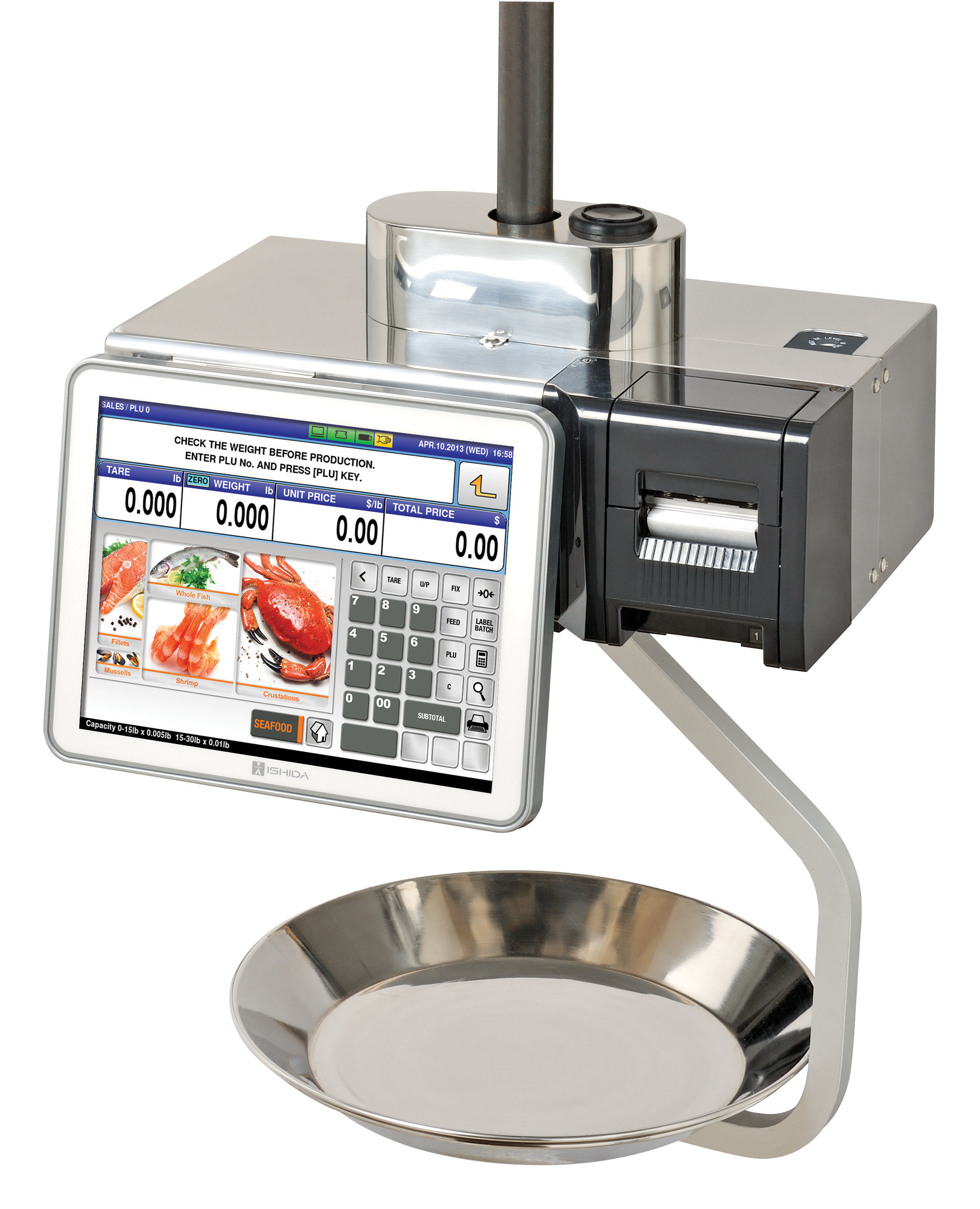

Hanging Scale with Eye-Level Touchscreen Display

The brilliant color touchscreen and suspended ergonomic design of the Uni-9 hanging scale is ideal for seafood and other high-moisture food applications. The suspended design holds product far from the operator screen, which resounds with a beep when buttons are pressed. Customers and employees alike will find the large, 12-inch LED display easy to read and use.

Capacity (Dual Range):
0 to 15 x 0.005 lb, 15 to 30 x 0.01 lb

Print Speed:
3.9/ 4.7/ 5.9 in/sec
(100/ 120/ 150 mm/sec)

Label Size:
Width: 1.2 to 3.1 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)

Display:
Operator side: 12 in (800 × 600) color touch panel

Customer side: 7 in (800 × 480)
Type: Five-wire resistive

Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits

Memory:
SSD memory 250 MB

Communications:
Static TCP/IP 1 G Base T Ethernet auto duplex, Wireless WEP/WPA/WPA2

Platter:
15.7 × 10.8 in (398 × 275 mm)

Print Head:
Direct thermal 2.2 in head (56 mm)

Print Speed:
3.9/ 4.7 in/sec
(100/ 120 mm/sec)

Input/Output:
LAN 1 channel
USB 4 channel
SD 1 channel (SDHC: MAX 32 GB)
(for transaction data)

Operating Voltage:
Range: 100 to 240 V, 50/60 Hz
Permissible tolerance: +/- 10%

Operating Environment:
32 °F to 104 °F (0 °C to 40 °C)
20 to 85% relative humidity

Power Supply:
AC100 to 240 V, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 120 W

Classification:
NTEP CC 12-121
UL listed

Warranty:
One-year limited



Dimensions
A 10.7 in (271 mm) G 5.5 in (140 mm)
B 11.8 in (300 mm) H 21.7 in (550.5 mm)
C 9.3 in (236 mm) I 14.1 in (359 mm)
D 17.2 in (437 mm) J 11.2 in (285.5 mm)
E 2.4 in (62 mm) K 8.6 in (218.5 mm)
F 6.9 in (174 mm) L 11.9 in (302 mm)
  Mounting specifications
  Pipe: 1.10 in outside diameter

Resources / Downloads

Title Version Revision Download Email Category Archived
Ishida Uni-9 Operation Manual: Jan 2016 Download Email Retail Equipment No

Title Download Email
Uni-9H Scale Replacements Parts Page Download Email
Uni-9H Printer Replacements Parts Page Download Email
Uni-9H Cassette Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title View Email Category
Ishida SLP-5: Automatic Presets for the Uni-9, Rev 3 April 2020 Download Email Retail Equipment|Retail Software

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment

Parts

Part # Description List Price Cart
191674 Retail Scale, Uni-9H Hanging, 107mm, Internal RF, 0-15 x 0.005 / 15-30 x 0.01lb 115VAC, PC Based, Uni-9 Ishida

List Price: $6,554.00

Options

Ishida Uni-9 Hanging Options

Part # Description List Price Cart
155393 Option,Label Cassette UNI-9 UNI-9DB UNI-9XL UNI-9DXL UNI-9DB RP Ishida

List Price: $245.50

105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida

List Price: $93.00

110996 Retail Scale OPT,Label Cassette UNI-7, Replacement or Additional w/Special Front Plate For UNI-7H units, Order Black Cassette PN 190565 Ishida

List Price: $234.50

174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

List Price: $158.50
