ISOBAR® AC Transient Protector

Four outlets
Six-foot cord with grounded three-prong plug
Lighted on/off switch
Circuit breaker protected
Multiple filter design prevents the different components of your system from interfering with each other
UL1449 listed at 330 volts
Exclusive isolated filter banks prevent equipment interaction
ISOBAR’s cascade circuitry allows you to choose more protection for your most sensitive equipment and a lesser degree of protection for equipment with more tolerance

WARNING: Cancer and Reproductive Harm California Proposition 65

Portals 0 Products 0C24c868d6f24e6aa6bbeda64b19a2cf Orig

HD View

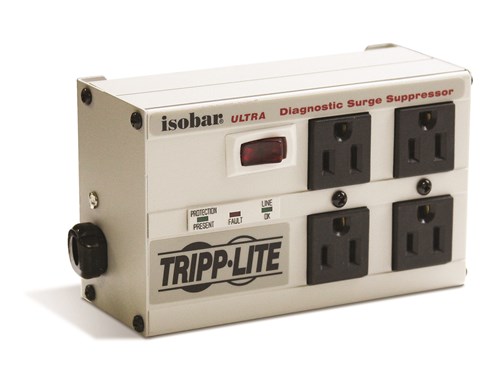

The Isobar® AC Transient Protector features four outlets for two isolated filter banks to prevent equipment interaction, and two outlets for basic or maximum level equipment protection. This cascade circuitry feature allows you to customize your security level based on equipment sensitivity.

ISOBAR AC Transient Protector Specifications

Clamp Voltage:
140 V rms

Peak Surge Current:
13,000 amps

Clamping Time:
Less than five nanoseconds

Input Voltage:
120 VAC

Maximum Current:
15 amps

Maximum Power:
1,875 watts

Noise Suppression:
Frequency Attenuation
50 KHz>20 db
150 KHz>40 db
1 MHz>80 db
>6 MHz>30 db

Dimensions:
6.15 in x 3.56 in x 2.48 in
(W x H x D)

Weight:
Approximately 2 lb

ISOBAR AC Transient Protector Dimensions

Resources / Downloads

Catalogs

Title	Download	Email
ISOBAR Catalog Page	Download	Email

Parts

Part #	Description	List Price	Cart
21146	AC Protection,Isobar ISO-4 4 Outlet 115 VAC	List Price: $110.00	View Cart
36663	AC Protection,Isobar 220VAC Euro-4 4 Outlet 6 ft Cord	List Price: $155.00	View Cart

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
