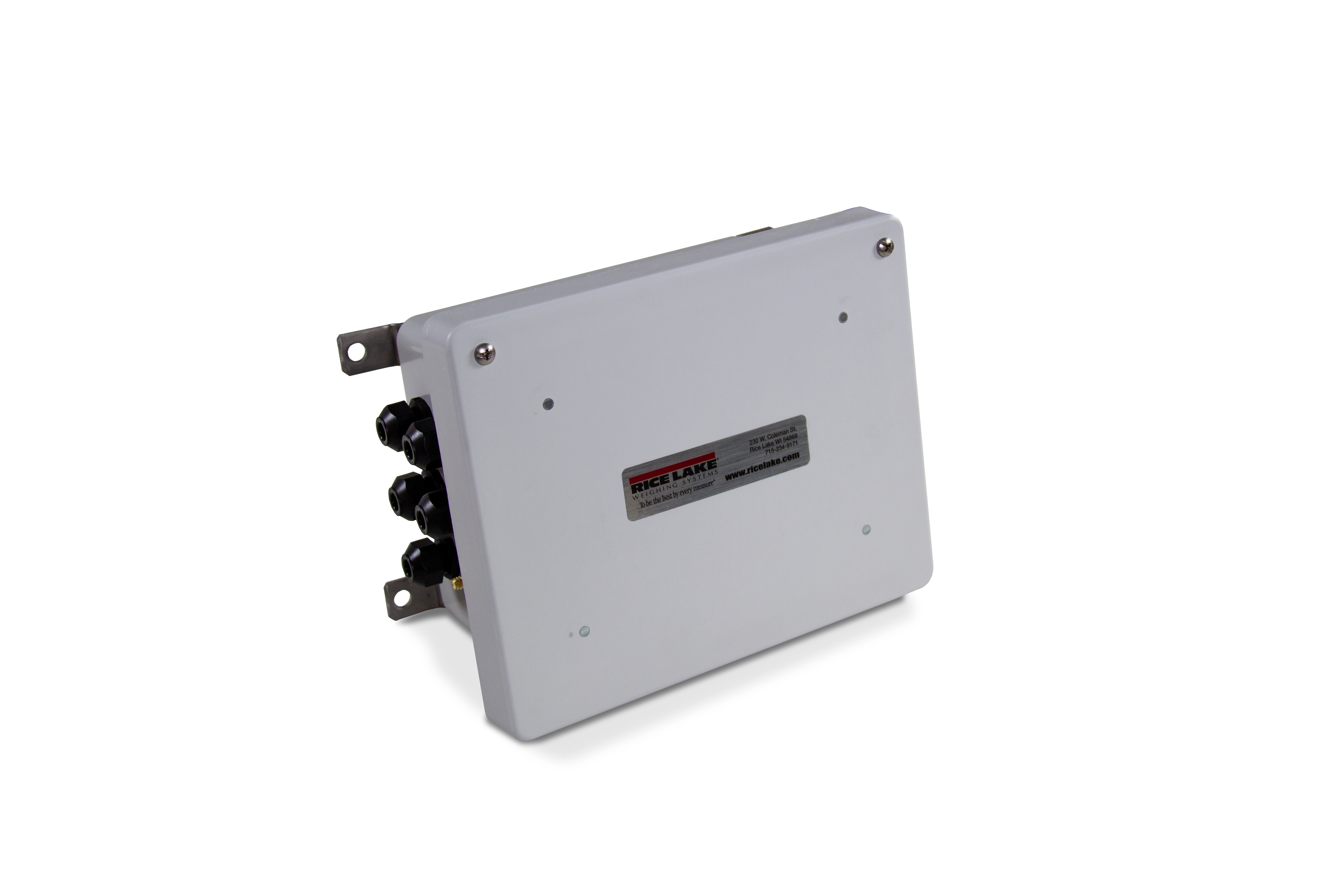

JB1010T Signal/Excitation Trim Junction Box

  • Transient protection
  • Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
  • Signal or excitation trim
  • Front panel mounting
  • Strain relief cable fittings
  • Number of cells: 1 through 10
  • Trims odd numbers of cells without modification
Applications
  • Tank, truck, railroad, hopper and floor scales
  • Universal field replacement of existing boxes
  • Expansion of existing scales

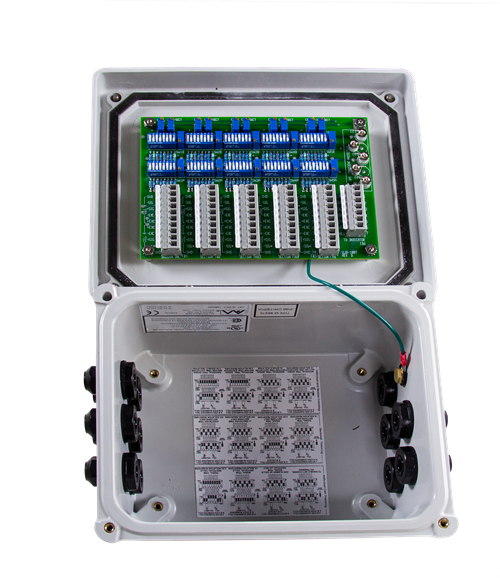

When trimming junction boxes for paralleling load cells, the JB1010 provides signal or excitation trim capabilities. Whether expanding an existing scale or replacing a junction box on a truck or floor scale, the JB1010 provides easy access for trimming up to ten load cells per unit or conveniently adjust multiple cell modules by section.

Mounting Centers:
3.75 in x 2.31 in (95.2 mm x 58.7 mm)

Cable Fittings:
Nylon waterproof strain-relief type

Temperature:
Operating Range: 0°F to 122°F (-18°C to 50°C)

Cable Diameter:
0.079-0.314 in

Potentiometers:
100,000 ohm, 25-turns cerment

Trimming:
Individual cell and section signal and excitation trimming

Terminal Block:
Rated 300V/15A; 7-position screw terminal can each accommodate up to #16 AWG

Warranty:
One-year limited warranty

del Complete J-Box Replacement Replacement Board Only Replacement Cord Grips Replacement Pressure & Condensation Vent Desiccant Packs
JB4SS 88956 88958 58983 59001 88733 PreVent™ breather (vent) 88734 (vent nut) 92240
JB4ES 91779 89446 58983 59001 88733 PreVentbreather (vent) 88734 (vent nut) $1.05 92240
JB4SP JB4SPT 91780 92762 88958 (load cell) and
89894 (transient protection)
58983 59001 88733 PreVent breather (vent) 88734 (vent nut) 16039
JB4EP JB4EPT 91781 92763 89446 (load cell) and
89894 (transient protection)
58983 59001 88733 PreVent breather (vent) 88734 (vent nut) 16039
EL204 73428 88958 N/A N/A N/A
JB8SP 91782 **89889 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and
15630 (nut)=1/2" NPT
88733 PreVent breather (vent) 88734 (vent nut) 16039
JB8SPT 91783 89889 (load cell) and 89894 (transient protection) 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and
15630 (nut)=1/2" NPT
88733 PreVent breather (vent) 88734 (vent nut) 16039
EL304A 21169 21301 N/A N/A N/A
JB1010 36231 36351 N/A N/A N/A
JB1010ST 68813 68811 N/A N/A N/A
EL210 91781, JB4EP* 92472 58983 59001 N/A N/A
EL211A 91780, JB4SP (However the board does not have section trim capabilities)* 92473 (However the board does not have section trim capabilities) 58983 59001 N/A N/A
EL604-AL 88956, JB4SS* 88958 58983 59001 N/A N/A
EL604STA 88956, JB4SS* 88958 58983 59001 N/A N/A
EL604ETA 91779, JB4ES* 89446 58983 59001 N/A N/A
EL504 21165 21296 N/A N/A N/A
JB808S 91782, JB8SP* 92471 15655 (cord grip) and
15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT
N/A N/A
JB818ST 91783, JB8SPT* Need (1) 77445 (1) 89889 and (1) 89894 15655 (cord grip) and
15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT
N/A N/A

Resources / Downloads

Title Download Email
JB1010T Catalog Page Download Email

Title Version Revision Download Email Category Archived
JB1010 Installation Manual Download Email Junction Boxes No

Title Download Email
Replacement Junction Boxes, Boards or Components Catalog Page Download Email

Parts

Part # Description List Price Cart
36231 J-Box,JB1010 10 Channel FRP NEMA 4X ST

List Price: $685.00

36351 Board,ST JB 1010 10 CHAN

List Price: $475.00

165276 Enclosure,JB1010 Only JB1010 Junction Box Enclosure w/Cord Grips, Backplate and Cover.

List Price: $275.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC JB1010ST

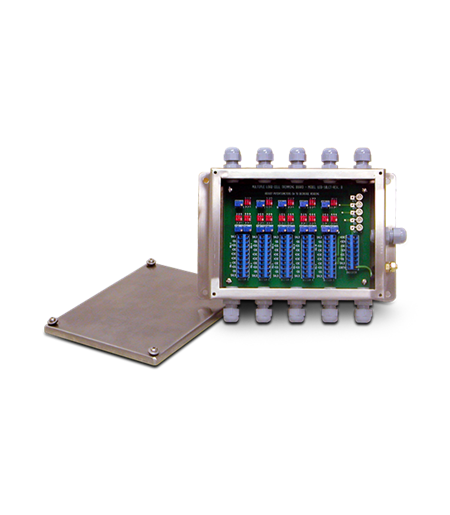

JB1010ST Signal Trim Junction Box
