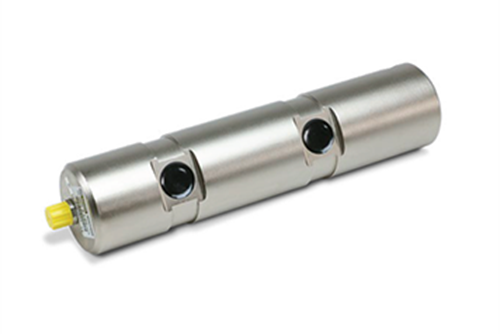

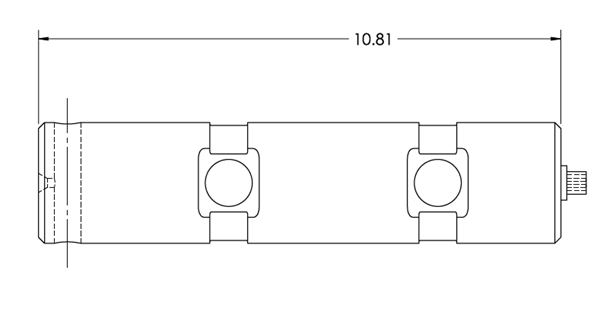

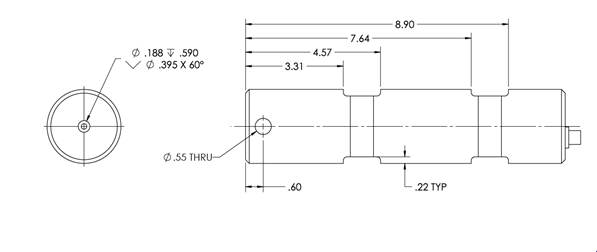

Load Pin - 2.5 Inch 20K Alloy Steel, Environmentally Sealed

Request More Information
Load Pin 2.5 Inch, 20K

Full Scale Output:
1.3 mV/V

Output Resistance:
350 (nominal)

Input Resistance:
350 (nominal)

Material/Finish:
Alloy steel

Temperature:
14° F to 104° F (-10° C to 40° C)

Rated Excitation:
15 VDC (5-10 V recommended)

Insulation Resistance:
500 megaohms at 50 VDC

Seal Type:
Environmentally sealed

Connector Type:
Turck, M12 4-pin male

Connection Pin Out:
Pin 1 - Excitation +
Pin 2 - Signal +
Pin 3 - Excitation -
Pin 4 - Signal -

Warranty:
One-year limited warranty



Resources / Downloads

Title Download Email
Load Pin - 2.5 Inch, 20K, Alloy Steel, Environmentally Sealed Download Email
Onboard Weighing Load Cell, Complete Selection Download Email
