Master™ 211 Belt Scale Weigh Frame

  • Friction-free pivot points
  • One load cell carrier beam
  • Fits standard conveyors
  • Custom built for each application

Options

  • 304/316 Stainless steel
  • Dual load cells
  • Dual idler
  • Custom lifting weights available on request

Applications

  • Medium to heavy capacity, mining and agriculture

211 Master Belt Scale Weigh Frame

The 211 Master belt scale weigh frame consists of an inner frame-mounted with two friction-free pivots to one end of the scale. The load cell is located on the opposite end with the idler mounted on the inner frame. The friction-free pivots absorb tensile stress in a horizontal direction, creating a very solid weigh frame well-suited for heavy-duty applications.

Conveyor Width:
20 to 80 in (500 to 2,000 mm)

Capacity:
3,000 tons per hour

Maximum Belt Speed:
800 ft/minute (4 m/s)
Maximum Inclination:
25 degrees

Material:
Powder coated mild steel

Accuracy System:
0.5 %
Load Cell:
RL20001 alloy steel, S-beam
(capacity selected from application)

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Master 211 Belt Scales Catalog Page Download Email

Title Version Revision Download Email Category Archived
Master 211 Belt Scale Installation Manual A Download Email Belt Scale Weigh Frames|Belt Scale Components No

Title Download Email
Belt Scale Application Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
Belt Scale In-Motion Solutions Request Download Email Belt Scale Weigh Frames|Bulk Indicators/Controllers

Parts

Part # Description List Price Cart / Quote
Consult Consult Factory for all available models and pricing

Consult

Related Products

Portals 0 Products F6e25adde0464843b2d7f753226576da Orig

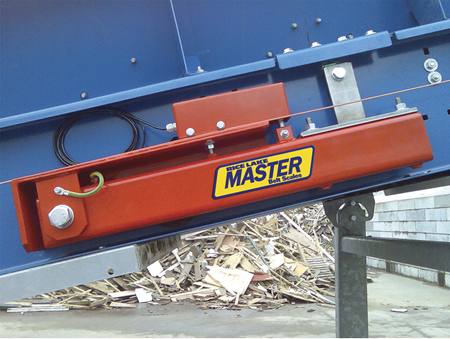

Master™ 221DB Belt Scale Weigh Frame
