MotoWeigh® Metal Detection Systems

Software

Four levels of security
Easy setup and product learning
Easily change product boundaries/rejection
One touch log reporting
Eight fields of data recorded on large hard drive
USB, Ethernet and RS485 communication ports
Up to 97 products
English or Spanish

Hardware

7-inch color touchscreen interface
304 stainless steel construction
NEMA Type 4X, 304 stainless steel housing and enclosure
IP66 rated
Easily removable belt
Adjustable foot pads or optional casters
Single-point junction box
Anti-static UHMW slider bed
Variable speed control

Options

Reject mechanism
Paddle
Linear
Drop
Lock box
IP69K
Meets HACCP requirements
Ferrous, non-ferrous and 316 stainless steel test wands; individual wands and kits
LED communication tower
Audible alarms
Caster package
Guide rails
AC power conditioner

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

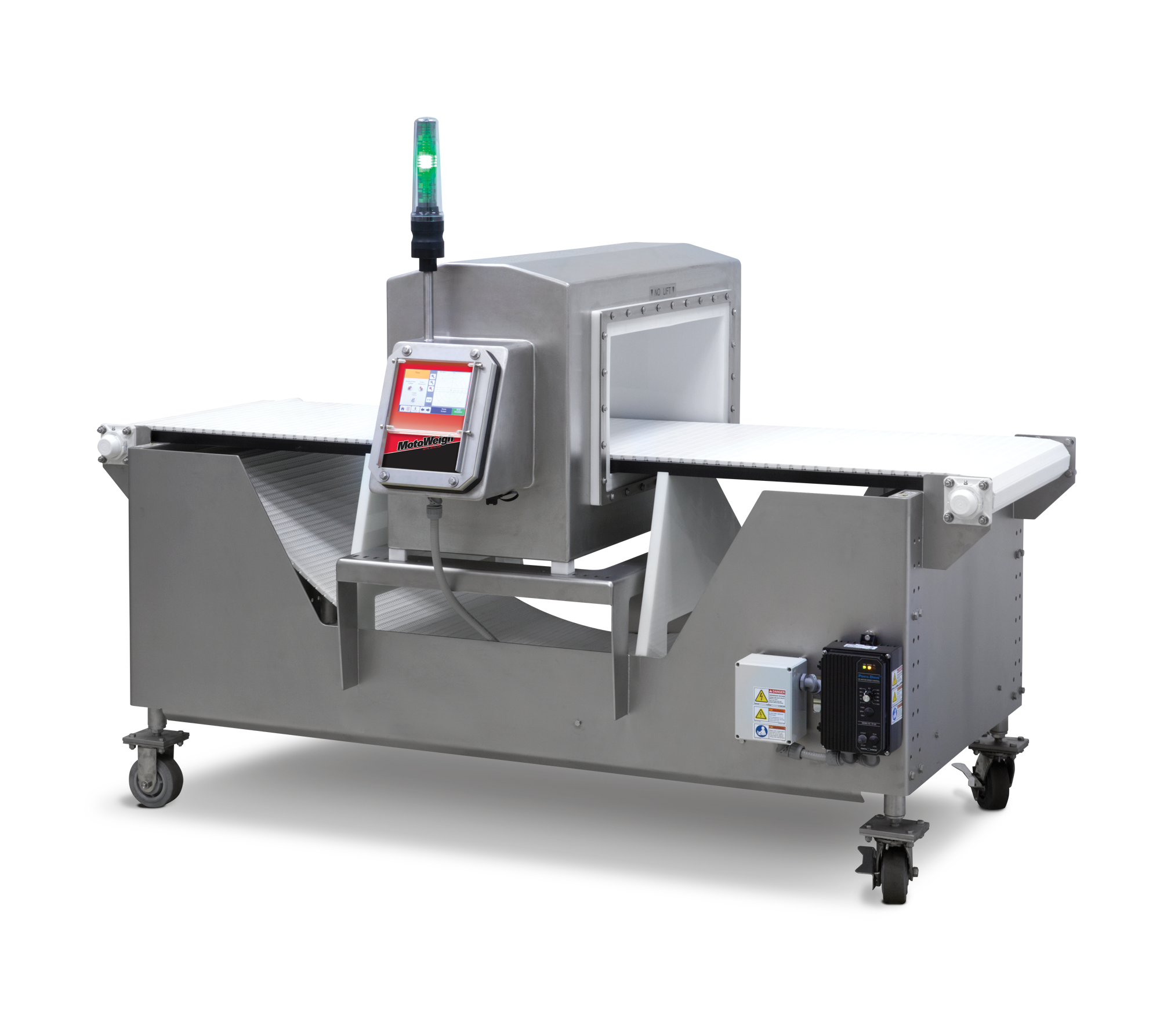

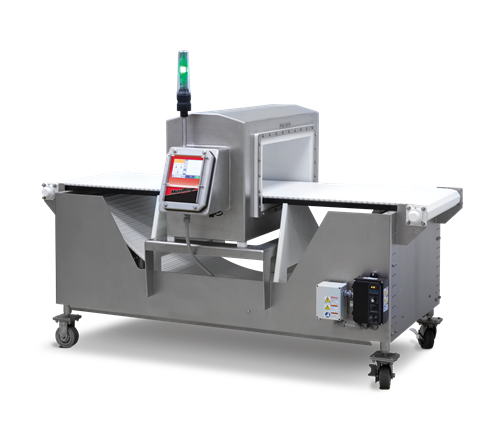

Portals 0 Products 74Dc6a6aadd4496f9feba5182e937cc9 Orig

Metal Detector Checkweigher

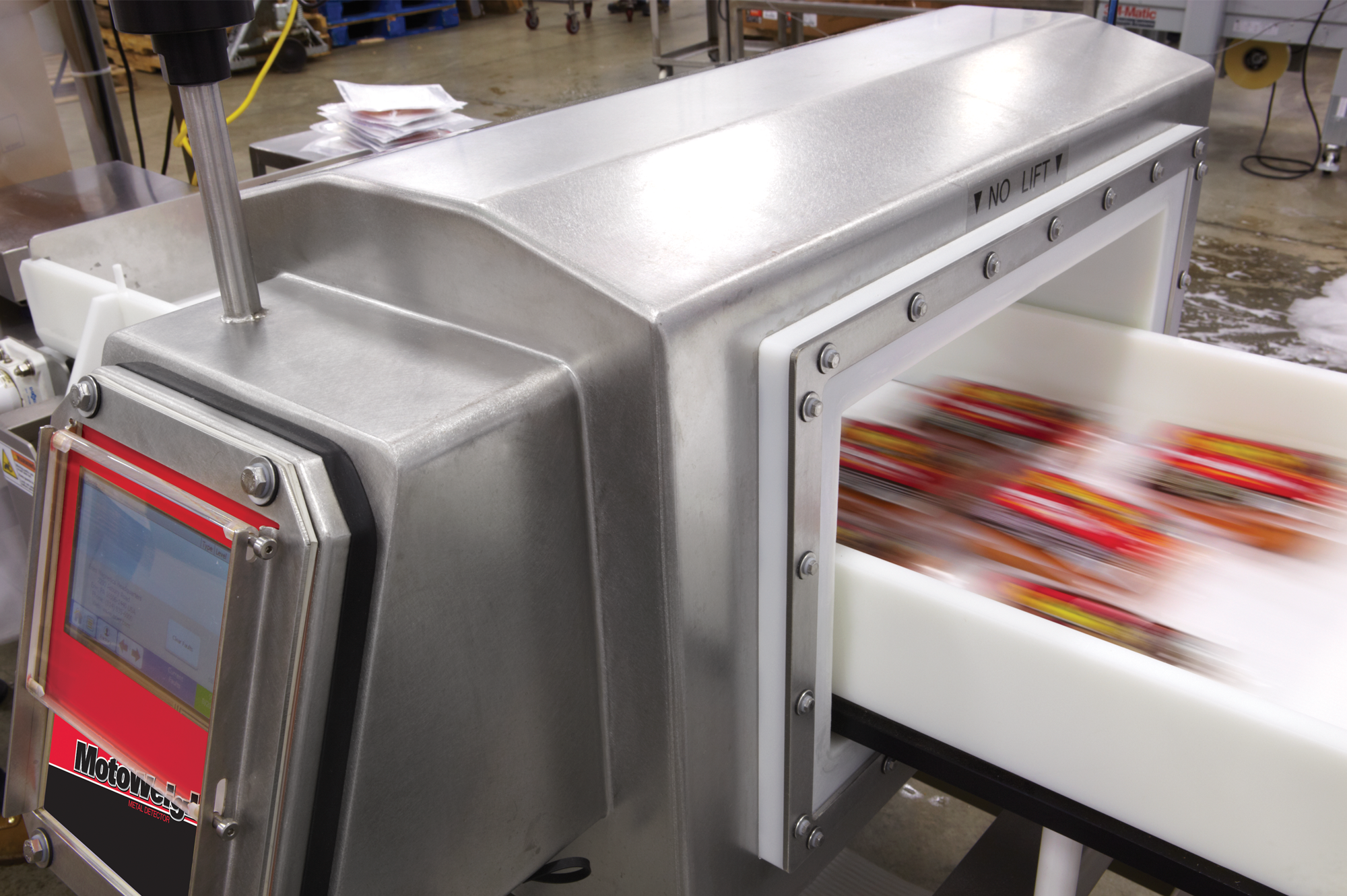

For detecting ferrous, non-ferrous and stainless steel contaminants, MotoWeigh Metal Detection Systems offer a critical balance of sensitivity without the more common show-stopping alarms. Unlike x-ray systems, MotoWeigh Metal Detection Systems are designed to detect disturbances in a generated magnetic field, making them better suited for products varying in size, shape and orientation. Metal detector checkweighers have also been proven to last up to three times longer in harsh industrial settings.

MotoWeigh checkweigher metal detectors arrive factory programmed to detect spherical metallic contaminant. Food-grade, stainless steel washdown design MotoWeigh models can be quickly disassembled with modular, variable-speed belting that removes easily for easy cleaning and sanitation.

MotoWeigh Metal Detector Specifications

Construction:
304 stainless steel

Display:
7-inch color touchscreen

Language Support:
English and Spanish

Inputs:
Eight configurable (for photo eyes, remote emergency stop, etc.) that can be set to active high or active low

Outputs:
Nine programmable (for reject mechanism, system faults, system warnings, etc.)

Speed:
Up to 120 ft/minute depending on configuration

Operating Temperature:
Integral control 14 °F to 120 °F (-10 °C to 49 °C)

Storage Temperature:
14 °F to 175 °F (-10 °C to 80 °C)

Maximum Operating Altitude:
6,561 ft (2,000 m)

Power Requirements:
100 to 240 VAC, 50 or 60 Hz

Resources / Downloads

Articles

Title	View	Email	Category	Type
The Food Safety Modernization Act and the Role of Scales in Food Processing	View	Email	Floor Scales\|In-Motion Checkweighers\|Bench Scales	Articles

Catalogs

Title	Download	Email
MotoWeigh Metal Detector Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Motoweigh Metal Detection Operation Manual			Download	Email	In-Motion Checkweighers	No

Product Questionnaires

Title	Download	Email
MotoWeigh Metal Detector Questionnaire	Download	Email

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
MotoWeigh In-Motion Metal Detection System		Request	Download	Email	In-Motion Checkweighers\|Bulk Material Weighing

Videos / Webinars

Title	View	Email	Category
MotoWeigh In-motion Weighing System Demo: 360° VR Video	View	Email	In-Motion Checkweighers
	View	Email	In-Motion Checkweighers
	View	Email	In-Motion Checkweighers

Parts

Part #	Description	List Price	Cart
Consult	Please consult factory for configuration and pricing	Call for price	View Cart

Options

Main Systems

Part #	Description	List Price	Cart
200804	Caster Package, MotoWeigh Set of 4- 2 Swivel and 2 Fixed Casters For Motoweigh Metal Detection Conveyors	List Price: $4,900.00	View Cart
186279	Informational Dome Light Motoweigh Metal Detector 5 Zone with Buzzer	List Price: $1,500.00	View Cart
186280	Remote Electronics Motoweigh Metal Detector Up to 100 Feet of Cable	List Price: $1,315.00	View Cart
186281	Constant Volt Transformer Motoweigh Metal Detector NEMA 4X Enclosure	List Price: $3,040.00	View Cart
186282	PLC Module, Motoweigh Motoweigh Metal Detector	List Price: $2,410.00	View Cart
186284	Kit, Preventive Motoweigh Motoweigh Metal Detector -Control Vent Housing and Nut -USB Plug Connector and Cap -Ethernet Cable Plug and Cap -Sealing Washers -Washdown Cover Assembly	List Price: $1,010.00	View Cart

Ferrous (Mild Steel) Test Wands

Part #	Description	List Price	Cart
168370	Test Wand for Metal Detector Calibration, 1.0 MM ferrous (chrome steel 52100), clear with red engraving	List Price: $19.25	View Cart
168383	Test Wand for Metal Detector Calibration, 1.2 MM ferrous (chrome steel 52100), clear with red engraving	List Price: $19.25	View Cart
168384	Test Wand for Metal Detector Calibration, 1.5 MM ferrous (chrome steel 52100), clear with red engraving	List Price: $19.25	View Cart
168385	Test Wand for Metal Detector Calibration, 1.8 MM ferrous (chrome steel 52100), clear with red engraving	List Price: $19.25	View Cart
168386	Test Wand for Metal Detector Calibration, 2.0 MM ferrous (chrome steel 52100), clear with red engraving	List Price: $19.25	View Cart
168387	Test Wand for Metal Detector Calibration, 2.2 MM ferrous (chrome steel 52100), clear with red engraving	List Price: $19.25	View Cart
168388	Test Wand for Metal Detector Calibration, 2.5 MM ferrous (chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168389	Test Wand for Metal Detector Calibration, 2.8 MM ferrous (chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168390	Test Wand for Metal Detector Calibration, 3.0 MM ferrous (chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168391	Test Wand for Metal Detector Calibration, 3.2 MM ferrous(chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168392	Test Wand for Metal Detector Calibration, 3.25 MM ferrous(chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168393	Test Wand for Metal Detector Calibration, 3.5 MM ferrous(chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168394	Test Wand for Metal Detector Calibration, 4.0 MM ferrous(chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart
168395	Test Wand for Metal Detector Calibration, 4.5 MM ferrous(chrome steel 52100) clear with red engraving	List Price: $19.25	View Cart

Non-Ferrous (Brass) Test Wands

Part #	Description	List Price	Cart
168411	Test wand for Metal Detector Calibration, 1.0 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168413	Test wand for Metal Detector Calibration, 1.2 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168414	Test wand for Metal Detector Calibration, 1.5 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168415	Test wand for Metal Detector Calibration, 1.8.MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168416	Test wand for Metal Detector Calibration, 2.0 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168418	Test wand for Metal Detector Calibration, 2.2 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168420	Test wand for Metal Detector Calibration, 2.5 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168421	Test wand for Metal Detector Calibration, 2.8 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168422	Test wand for Metal Detector Calibration, 3.0 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168423	Test wand for Metal Detector Calibration, 3.2 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168424	Test wand for Metal Detector Calibration, 3.5 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168425	Test wand for Metal Detector Calibration, 4.0 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168426	Test wand for Metal Detector Calibration, 4.5 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart
168427	Test wand for Metal Detector Calibration, 5.0 MM non-ferrous (brass) clear with yellow engraving	List Price: $19.25	View Cart

316 Stainless Steel Test Wands

Part #	Description	List Price	Cart
168428	Test wand for Metal detector calibration, 1.5 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168429	Test wand for Metal detector calibration, 1.8 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168430	Test wand for Metal detector calibration, 2.0 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168431	Test wand for Metal detector calibration, 2.2 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168432	Test wand for Metal detector calibration, 2.5 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168433	Test wand for Metal detector calibration, 2.8 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168434	Test wand for Metal detector calibration, 3.0 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168435	Test wand for Metal detector calibration, 3.2 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168436	Test wand for Metal detector calibration, 3.5 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168437	Test wand for Metal detector calibration, 4.0 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168438	Test wand for Metal detector calibration, 4.5 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168439	Test wand for Metal detector calibration, 5.0 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168440	Test wand for Metal detector calibration, 5.5 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart
168441	Test wand for Metal detector calibration, 6.0 MM stainless 316, clear with blue engraving	List Price: $19.25	View Cart

Test Wand Kits

Part #	Description	List Price	Cart
168445	Test Wand Master kit for Metal Detector Calibration, 42 test wands in hard case with private labeling and USB mem tab, includes one each Ferrous(Chrome Steel 52100}kit 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.5, 2.8, 3.0, 3.2, 3.25, 3.5, 4.0, 4.5 MM, Non Ferrous (brass) kit 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.5, 2.8, 3.0 3.2, 3.5, 4.0, 4.5, 5.0 MM, and Stainless 316 kit 1.5 1.8, 2.0, 2.2, 2.5, 2.8, 3.0, 3.2, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0MM	List Price: $1,500.00	View Cart
168442	Test Wand for Metal Detector Calibration, ferrous(chrome steel 52100) clear with red engraving, 14 test wands in hard case with private labeling and USB mem tab, 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.5, 2.8, 3.0, 3.2, 3.25, 3.5, 4.0, 4.5 MM	List Price: $500.00	View Cart
168443	Test wand kit for Metal Detector Calibration, non-ferrous (brass), clear yellow engraving clear with yellow engraving, 14 test wands in hard case with private labeling and USB mem tab, 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.5, 2.8, 3.0, 3.2, 3.5, 4.0, 4.5, 5.0 MM	List Price: $500.00	View Cart
168444	Test wand kit for Metal Detector Calibration, stainless 316, clear blue engraving, 14 test wands in hard case with private labeling and USB mem tab 1.5, 1.8, 2.0, 2.2, 2.5, 2.8, 3.0, 3.2, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 MM	List Price: $500.00	View Cart
