Product PDF

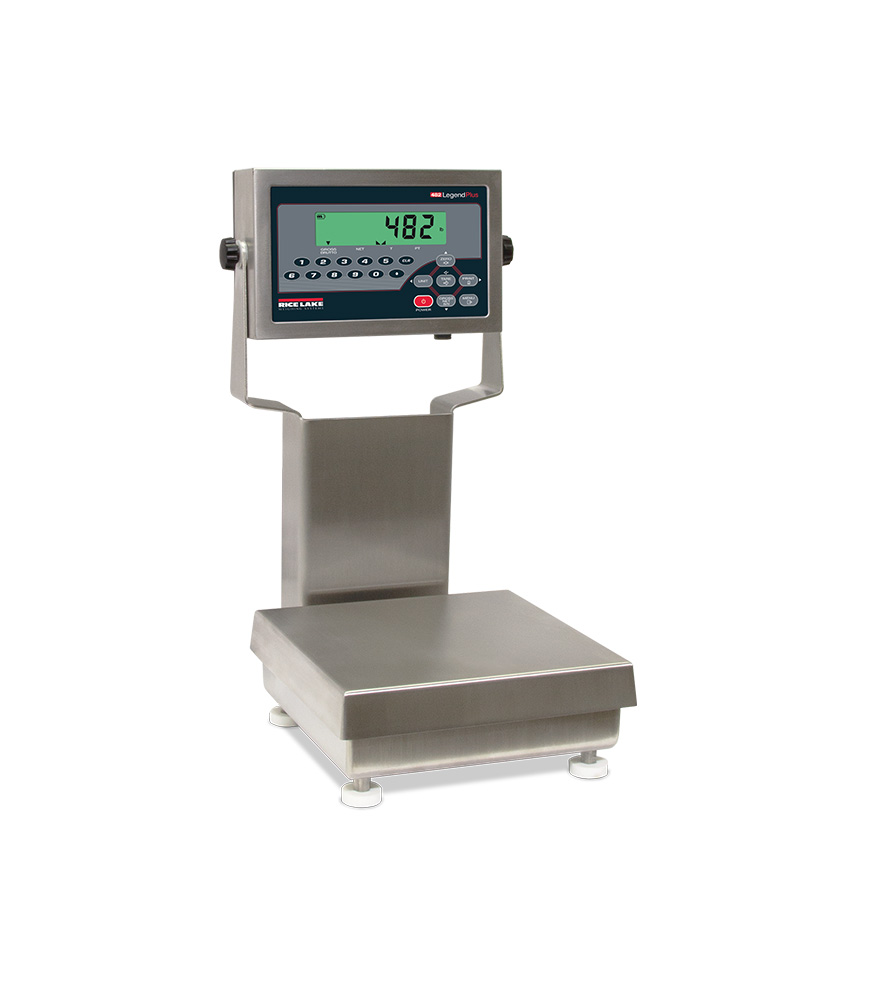

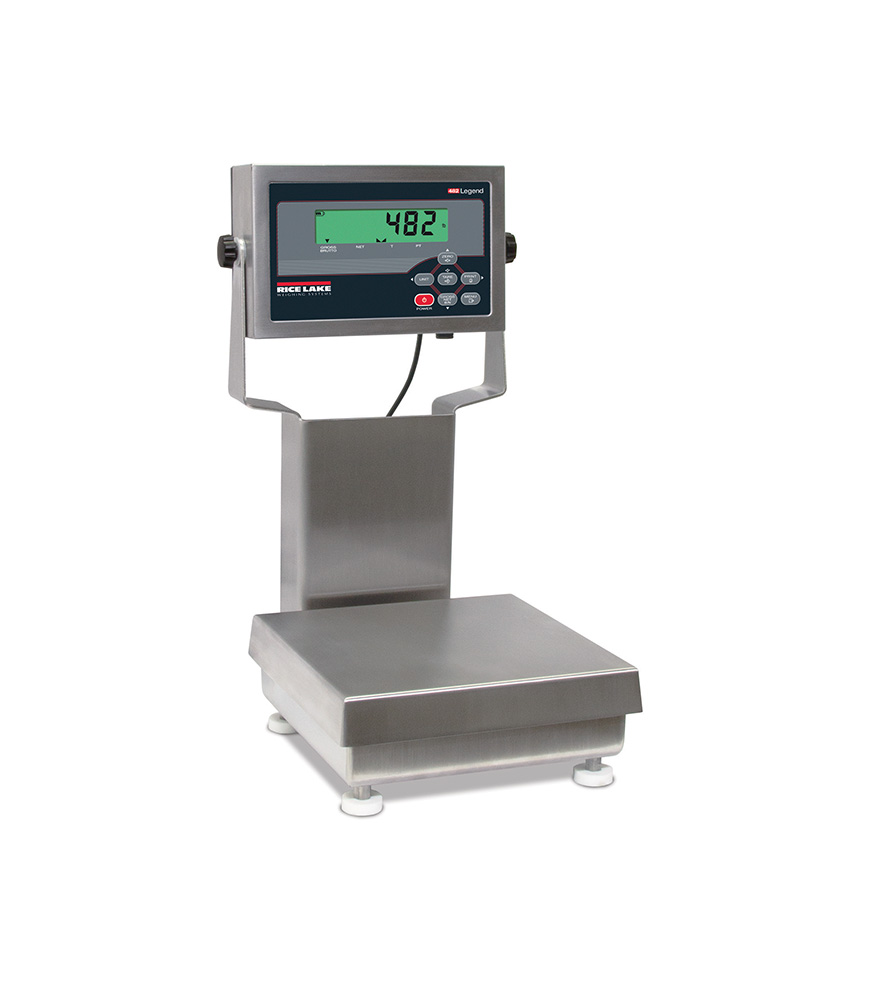

Ready-n-Weigh Bench Scale System CW-90B Scale Base 482/482 Plus Indicator

  • Package includes scale with IP67 aluminum environmentally sealed load cell
    with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • AC power 100 to 240 VAC
  • LCD backlit indicator display for a variety of environments
  • Battery backed time and date
  • Standard RS-232 serial ports for connecting to a variety of peripherals
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65
482 Package

Bench Scale Package

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Scale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, straight line finish, Ra = 45 ±10

Scale Cover:
AISI304L, straight line finish, Ra = 45 ±10

Cable Length:
34 in

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)

Approvals:
NTEP 12-123, Class III 5,000 d
Measurement Canada AM-5892C
CE
cULus

Warranty:
Two-year limited

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

Display:
LCD backlit display, transmissive/transflective 0.8 in (20 mm), six-digit, seven-segment

Status Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Approvals:
NTEP 12-123
Measurement Canada AM-5892C
CE Marked
cULus Listed

Warranty:
Two-year limited

CW-90B with 482 Indicator



10 × 10 in
A 19.50 in  E 9.25 in
B 10.25 in F 4.25 in
C 14.53 in G 10.25 in
D 13.25 in
12 × 12 in
A 19.50 in E 9.25 in
B 12.25 in F 4.25 in
C 16.53 in  G 12.25 in
D 13.25 in
Note: 1 in = 25.4 mm



Resources/Downloads

Title Download Email
Ready-n-Weigh CW-90B/482 Catalog Page Download Email

Title Version Revision Download Email Category Archived
CW-90B and CW-90XB Technical Manual C Download Email Checkweighers|Bench Scales|Indicators / Controllers|Weight Indicators No

Title Collateral Wizard Request Download Email Category
CW-90B/482 Ready-n-Weigh Bench Scale Package Request Download Email Bench Scales|Complete Scale Package

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

482 Package 115 VAC, LCD, US Plug-Type B

Part # Description List Price Cart/Quote
201463 Scale PKG, CW-90B-482 10x10 5 lb/2.5 kg with 12 inch column 115VAC SST

List Price: $1,810.00
201464 Scale PKG, CW-90B-482 10x10 10 lb/5 kg with 12 inch column 115VAC SST

List Price: $1,810.00
201465 Scale PKG, CW-90B-482 10x10 25 lb/10 kg with 12 inch column 115VAC SST

List Price: $1,810.00
201466 Scale PKG, CW-90B-482 12x12 25 lb/10 kg with 12 inch column 115VAC SST

List Price: $1,900.00
201467 Scale PKG, CW-90B-482 12x12 50 lb/25 kg with 12 inch column 115VAC SST

List Price: $1,900.00
201468 Scale PKG, CW-90B-482 12x12 100 lb/50 kg with 12 inch column 115VAC SST

List Price: $1,900.00

482 Package 90-264 VAC, LCD, Euro Plug-Type E

482 Plus Package 115 VAC, LCD, Numeric keypad, US Plug-Type B

482 Plus Package 90-264 VAC, LCD, Numeric keypad, Euro Plug-Type E
