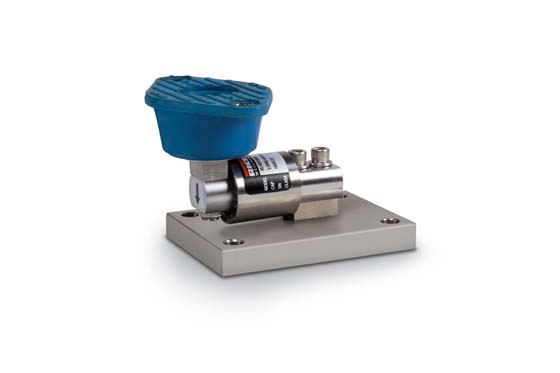

RL50219SS-TA Mini Tank Weighing Module, Stainless Steel

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three or four RL50219SS cantilever beam load cells (50 to 250 lb models)
  • Three or four stainless steel single-ended beam load cells (500 lb models)
  • Three or four neoprene isolation/compression mounts
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Stainless steel modules
  • Lower weighing ranges from 50 to 500 lb per module
  • Environmentally protected load cells
  • Neoprene isolation/compression mounts allow for minor misalignment, thermal expansion and shock absorption
  • Overload stop for 500 lb modules provides durability

The RL50219SS-TA weigh module kit provides a cost-effective alternative for your customers’ low-range weighing needs. A variety of features makes this kit easy to install and an exceptional choice for various indoor weighing applications where checking requirements are low. Environmentally protected load cells, neoprene isolation/compression mounts and other Rice Lake Weighing Systems components are the keys to this module’s outstanding performance.

Applications

50 to 250 lb

500 lb

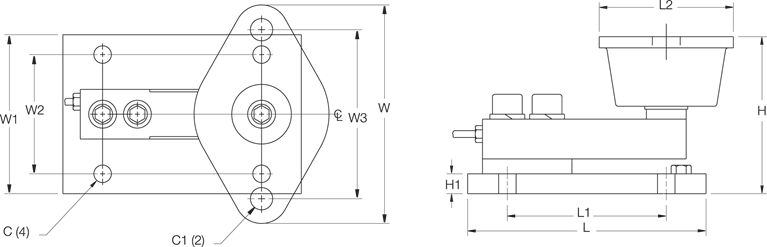

Rated Capacity C C1 H H1 L L1 L2 W W1 W2 W3
lb/in
50 to 250 0.34 - 3.13 0.50 4.00 3.25 2.38 3.88 3.00 2.25 -
500 0.44 0.56 3.88 0.50 6.00 4.00 3.38 5.50 4.00 3.00 4.13

Resources / Downloads

Title Download Email
RL50219SS-TA Weigh Module Catalog Page Download Email

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Stainless Steel Single-Module Kit (Includes Load Cell)

Part # Description List Price Cart
196829 Mount Assy, RL50219-SS-TA 50 50lb SST Incl RL50219SS-50lb Load Cell

List Price: $695.00

196830 Mount Assy, RL50219-SS-TA 75 75lb SST Incl RL50219SS-75lb Load Cell

List Price: $695.00

196831 Mount Assy, RL50219-SS-TA 100 100lb SST Incl RL50219SS-100lb Load Cell

List Price: $695.00

196832 Mount Assy, RL50219-SS-TA 150 150lb SST Incl RL50219SS-150lb Load Cell

List Price: $695.00

196833 Mount Assy, RL50219-SS-TA 250 250lb SST Incl RL50219SS-250lb Load Cell

List Price: $695.00

17954 Mount ASSY,RL50210-500 500 lb SST Compression INCL RL39123-500 lb

List Price: $715.00

Stainless Steel 3-Module Kit

Stainless Steel 4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
