RL9000TWM Series Weigh Module

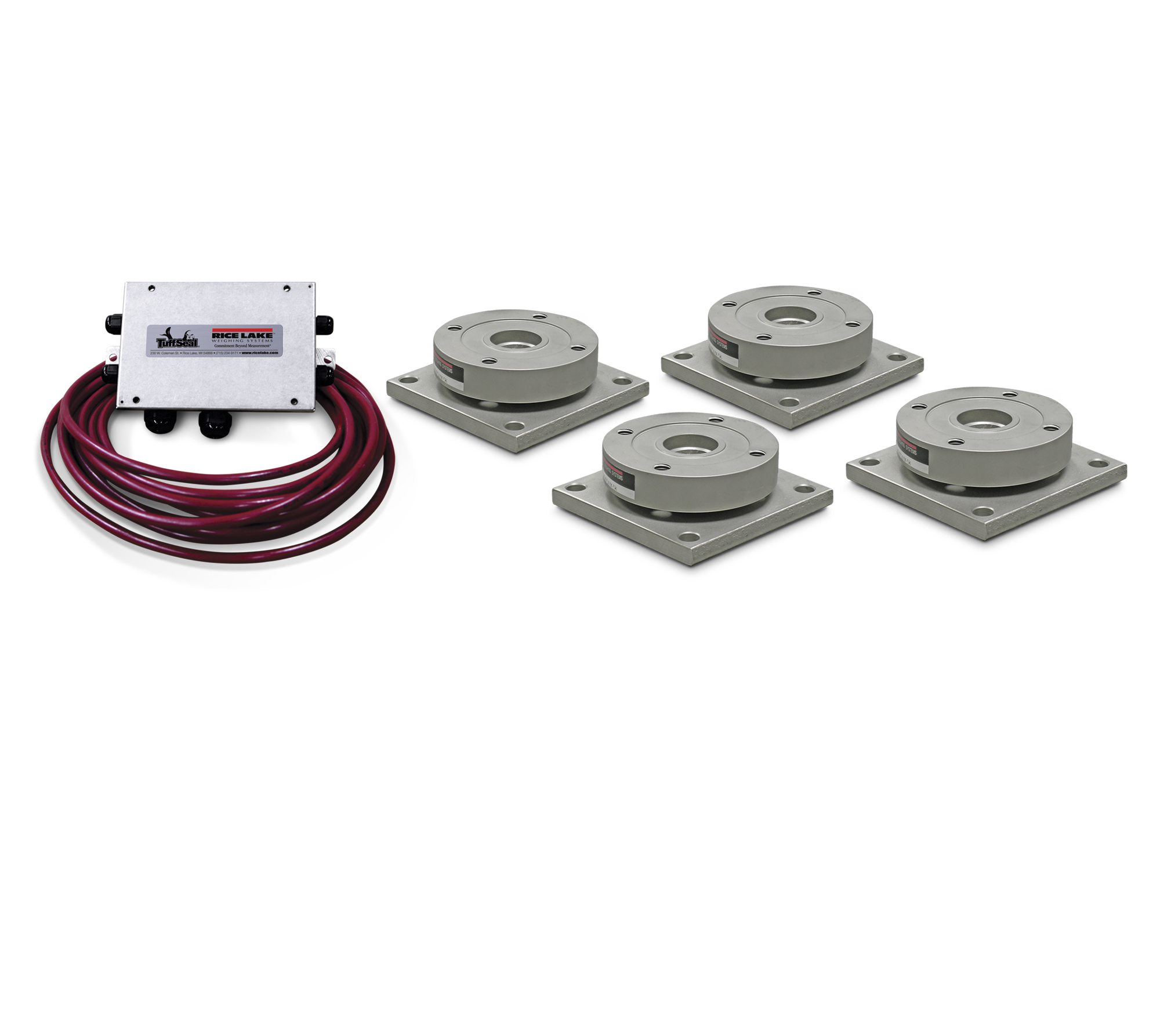

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three or four stainless steel mounting assemblies
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features:

  • Capacities: 1,000 to 450,000lb
  • Very low profile design
  • 3 mV/V output
  • Self-centering
  • Self-checking assembly
  • Offers 100% sideload, 100% uplift and 150% static safe load and 300% ultimate static overload protection
  • Stainless steel construction
  • Welded seal
  • Weighs accurately with as much as a 3° non-parallel load
  • Includes 25 ft load cell cable

Optional Features

  • Stainless steel top plates (150,000 to 450,000 lb have mild steel painted base plate)

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

High-Precision Stainless Steel Weigh Module

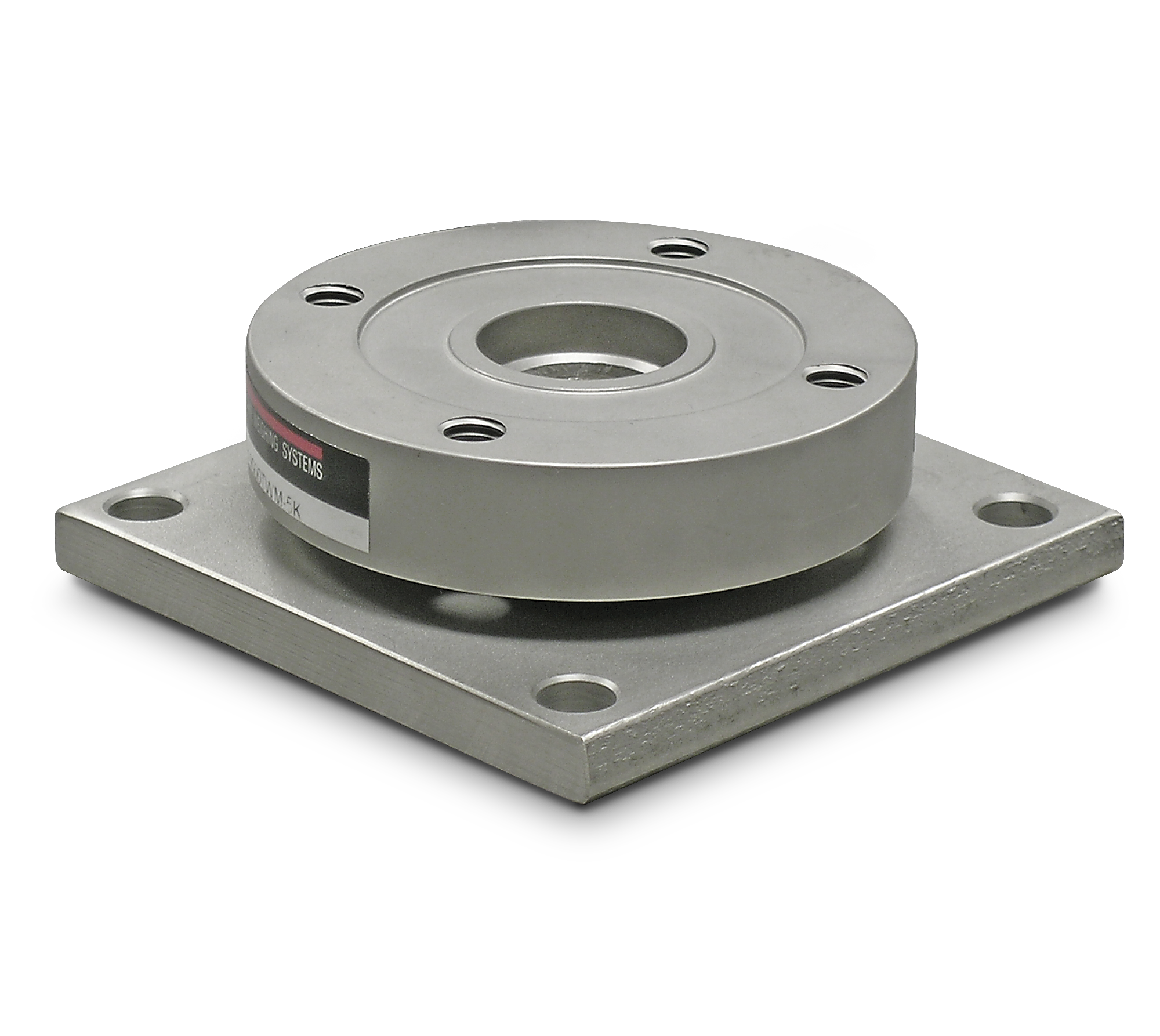

The RL9000TWM Series stainless steel weigh module is ideal for use in tank, hopper, vessel and many other applications. The low-profile design offers an economical solutions in a competitive marketplace. This rugged, high-precision mount is designed for easy installation and does not require check rods or other stabilizing hardware. The stainless steel construction and welded seal offer additional protection in washdown areas.

Applications:



Full Scale Output:
3 (± 0.1%) mV/V

Bridge Resistance:
350 ohms

Material/Finish:
Stainless steel

Operating Temperature:
0 °F to 150 °F (-17 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% Full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
5,000 megohms

Non-linearity:
1 to 100 K: 0.05% FS
150 to 450 K: 0.1% FS

Non-repeatability:
1 to 100 K: 0.02% full scale
150 to 450 K:0.03% full scale

Cable Length:
25 ft

Deflection at Capacity:
1 to 15 K: 0.002in
20 to 50 K: 0.004in
60 to 100 K: 0.007in
150 to 200 K: 0.007in
250 to 400 K: 0.009in

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
Two-year limited

Rated Capacity A B1 C D E F G H I Conduit Adapter
lb/in

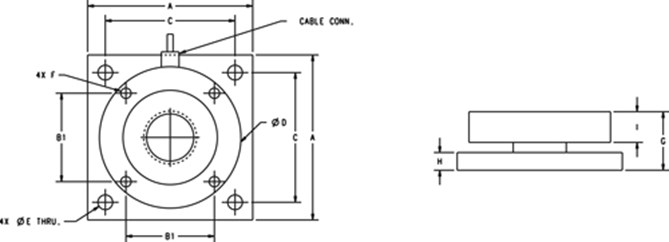

1,000 to 10,000 4.00 2.00 3.25 3.50 0.40 3/8-16 UNC 1.35 0.375 0.75 -
15,000 4.00 2.00 3.25 3.50 0.40 3/8-16 UNC  1.60 0.625 0.75 -
20,000 to 50,000 7.00 3.75 5.50 6.00 0.63 1/2-13 UNC 2.48 0.75 1.30 1/2-14 NPT
60,000 to 100,000 8.00 4.25 6.50 7.00 0.81 3/4-16 UNC 2.50 1.00 1.30 1/2-14 NPT

Rated Capacity A B1 C D E F G H I Conduit Adapter
lb/in

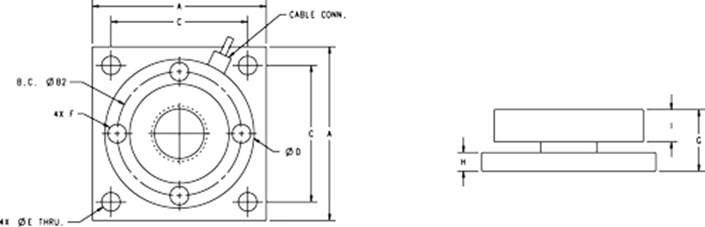

150,000 to 200,000 10.0 7.825 8.00 9.00 1.10 1-14 UNF 4.75 2.00 1.70 1/2-14 NPT

Rated Capacity A B1 C D E F G H I Conduit Adapter
lb/in

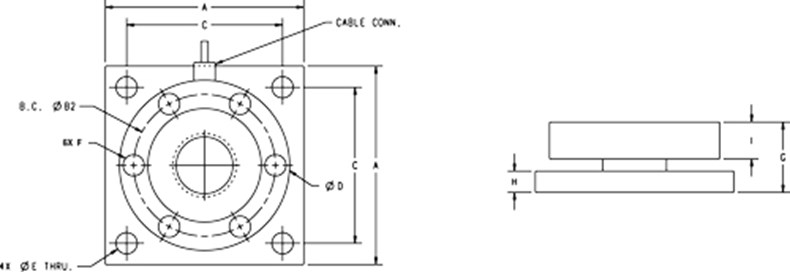

250,000 to 450,000 11.00 7.75 9.00 9.00 1.30 7/8-14 UNF 6.42 3.00 2.25 1/2-14 NPT

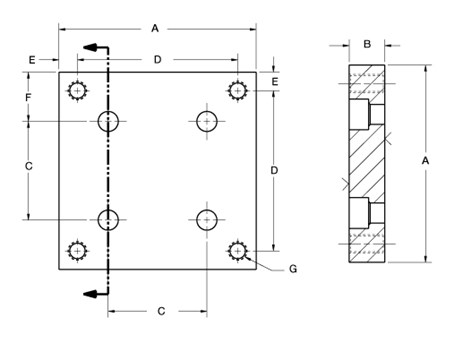

Rated Capacity A B C D E F G
lb/inches
1,000 to 15,000 4.00 0.72 2.00 3.25 0.38 1.00 3/8-16 UNC
20,000 to 50,000 7.00 0.97 3.75 5.50 0.75 1.62 5/8-11 UNC
60,000 to 100,000 8.00 1.46 4.25 6.50 0.75 1.88 3/4-16 UNF
150,000 to 200,000 10.00 1.94 5.53 8.00 1.00 2.25 1-14 UNS
250,000 to 450,000 11.00 2.94 7.75 B.C. 9.00 1.00 1.00 1-1/4-12 UNF

Resources / Downloads

Title View Email Category Type
Our Day at the Zoo View Email Vehicle Scale System|Axle Scales Application Story
Weighing the World View Email Indicators / Controllers|Truck Scales|Load Cells Application Story

Title Download Email
RL9000TWM Series Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL9000TWM Load Cell Mount Installation Guide B Download Email No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
RL9000TWM Series Weigh Module Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RL9000TWM Series Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module

Part # Description List Price Cart
84353 Mount Assy,RL9000TWM 1K 1000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $710.00

84354 Mount Assy,RL9000TWM 2.5K 2500LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $710.00

84355 Mount Assy,RL9000TWM 5K 5000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $710.00

84356 Mount Assy,RL9000TWM 10K 10000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $710.00

84357 Mount Assy,RL9000TWM 15K 15000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $710.00

84358 Mount Assy,RL9000TWM 20K 20000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $1,350.00

84359 Mount Assy,RL9000TWM 25K 25000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $1,350.00

84360 Mount Assy,RL9000TWM 35K 35000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $1,350.00

84361 Mount Assy,RL9000TWM 50K 50000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $1,350.00

84362 Mount Assy,RL9000TWM 60K 60000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $2,255.00

84363 Mount Assy,RL9000TWM 75K 75000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $2,255.00

84364 Mount Assy,RL9000TWM 100K 100000LB SST WS 3 MV/V 350 OHM 25 FT FM

List Price: $2,255.00

84365 Mount Assy,RL9000TWM 150K 150000LB SST WS 3 MV/V 350 OHM 25 FT ALLOY BASE FM

List Price: $4,600.00

84366 Mount Assy,RL9000TWM 200K 200000LB SST WS 3 MV/V 350 OHM 25 FT ALLOY BASE FM

List Price: $4,600.00

84368 Mount Assy,RL9000TWM 250K 250000LB SST WS 3 MV/V 350 OHM 25 FT ALLOY BASE FM

List Price: $6,750.00

84369 Mount Assy,RL9000TWM 300K 300000LB SST WS 3 MV/V 350 OHM 25 FT ALLOY BASE FM

List Price: $6,750.00

84370 Mount Assy,RL9000TWM 400K 400000LB SST WS 3 MV/V 350 OHM 25 FT ALLOY BASE FM

List Price: $6,750.00

84371 Mount Assy,RL9000TWM 450K 450000LB SST WS 3 MV/V 350 OHM 25 FT ALLOY BASE FM

List Price: $6,750.00

3-Module Kit

4-Module Kit

Top Plates (Stainless Steel) with bolts

Top Plates (Mild Steel) with bolts

Options

Dummy Weigh Modules - Mild Steel (Non-Functioning)

Part # Description List Price Cart
158749 Dummy Load Cell, RL9000 TWM 1k-10k mild steel

List Price: $100.00

158750 Dummy Load Cell, RL9000 TWM 15k mild steel

List Price: $130.00

158752 Dummy Load Cell, RL9000 TWM 20k-50k mild steel

List Price: $145.00

158753 Dummy Load Cell, RL9000 TWM 60k-100k mild steel

List Price: $160.00

158754 Dummy Load Cell, RL9000 TWM 150k-200k mild steel

List Price: $410.00

158755 Dummy Load Cell, RL9000 TWM 250k-450k mild steel

List Price: $435.00

Shims

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
