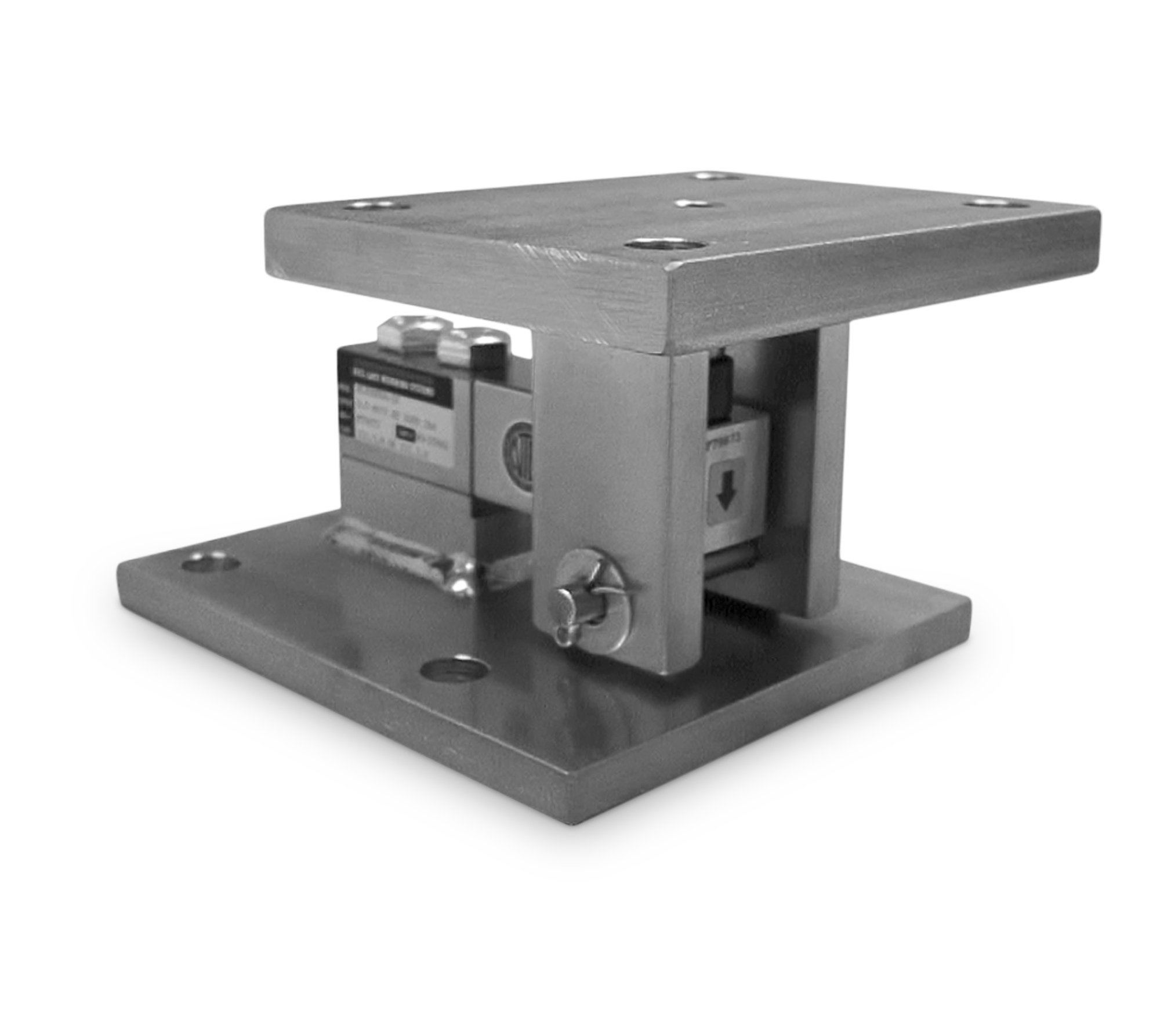

RLBTM Mild/Stainless Steel Weigh Module

  • Capacities (per module): 250 to 5,000 lb SE
  • Zinc plated, mild steel construction or stainless steel construction
  • Self-checking, multi-directional movement
  • Design incorporates a ball and cup for self-centering
  • The RLBTM will accommodate a standard shear beam 250 to 5,000 lb SE load cell that has a threaded load hole such as the RL30000, RL39123, RL35023, RL35082 and RL35083

Mild or Stainless Steel Weigh Module

The RLBTM mount was specifically created to take advantage of the improved load introduction accuracy of the ball and cup design. This multi-purpose mount is ideal for both indoor and outdoor applications, and can be used with a variety of single-ended beam load cells. Available in both mild and stainless steel. This product offers superior accuracy at an affordable price. These assemblies are also quick and easy to install, making the RLBTM the perfect choice for your low-capacity, multi-purpose weighing needs.

Applications:

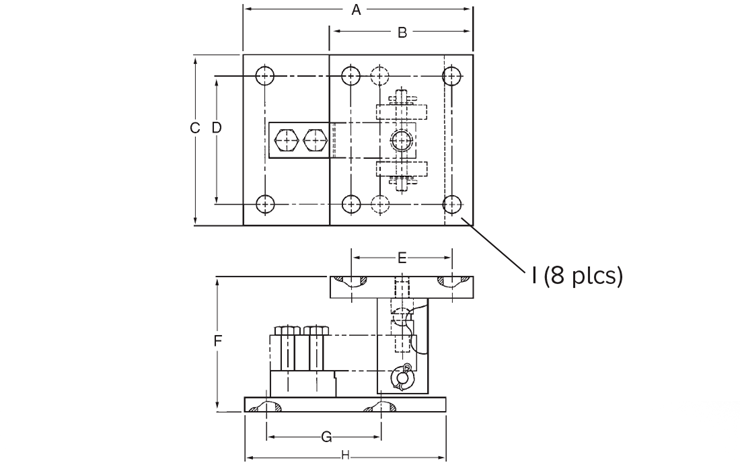

Rated Capacity A B C D E F G H I
lb/in
250 to 5,000 SE 8.00 5.00 6.00 4.50 3.50 4.75 4.00 7.00 0.63

Resources / Downloads

Title Download Email
RLBTM Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RLBTM Series Weigh Module Kit Installation Guide Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Mild Steel Single Module (Does NOT Include Load Cell)

Part # Description List Price Cart
53059 Mount ASSY,RLBTM Mild Steel Plated 250lb Thru 5KSE

List Price: $410.00

Stainless Steel Single Module (Does NOT Include Load Cell)

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
