RLTM Stainless Steel Tank Weigh Module

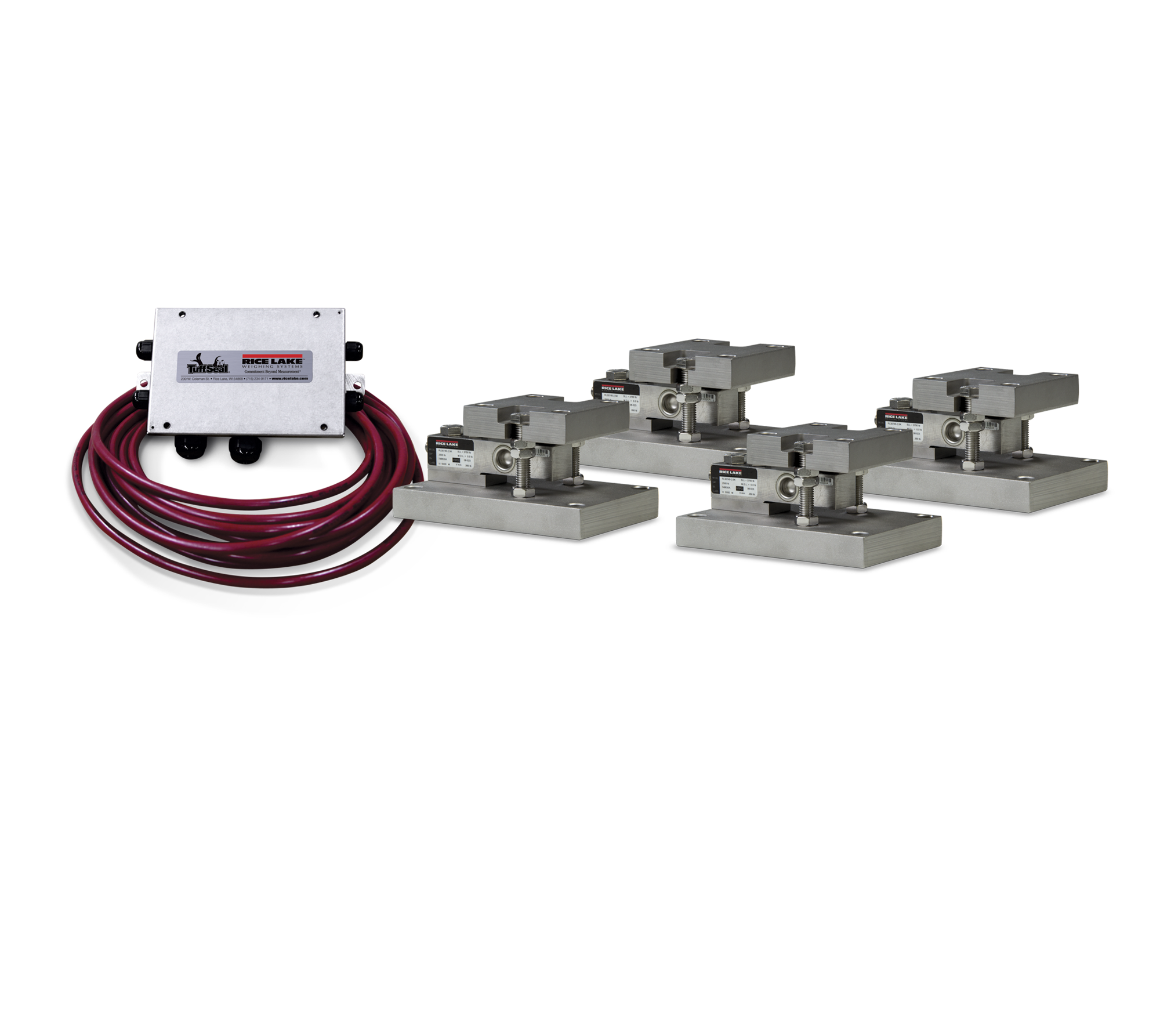

Complete Kit Includes
- Three or four Rice Lake RLTM stainless steel mounting assemblies with RL32018S-T NTEP Certified, welded-seal stainless steel load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
- Capacities (per module) 500 to 10,000 lb
- NTEP Certified load cells, 1:5,000d, Class III multiple cell
- Stainless steel construction
- Overload and uplift protection
- Rocker pin loading
- Integral lateral stops
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Stainless Steel Tank Weigh Module
The RLTM weigh module assembly features a stainless steel, welded sealed RL30745 load cell and a fully stainless mount including all associated hardware. Using a rocker pin-loading concept, this design provides accurate weighing in most conditions. Standard features include both overload and overlift protection, making it ideal for most outdoor low-capacity tank and vessel weighing applications. Each Rice Lake RLTM module is provided standard with one load cell with 30 ft of cable and one mount.
Applications:
- Lower capacity tank and vessel weighing
- Process control and batching

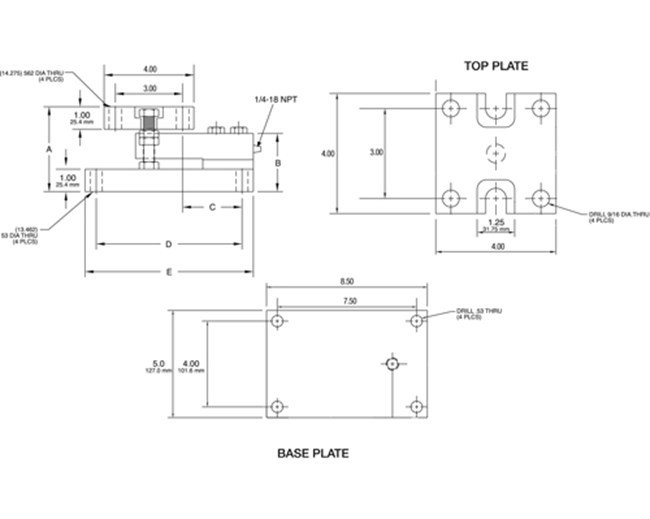

RLTM Dimensions
| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/inches | |||||
| 500 to 2,500 | 3.77 | 2.59 | 2.62 | 6.50 | 7.50 |
| 5,000 | 3.99 | 2.83 | 2.62 | 6.50 | 7.50 |
| 10,000 | 4.27 | 3.08 | 3.88 | 7.50 | 8.50 |
Resources / Downloads
Parts
Single Module (Includes Load Cell)
| Part # | Description | List Price | Cart |
|---|---|---|---|
|
159288
|
Mount Assy,RLTM-500lb 500lb Tank Weigh Module Stainless Steel Incl RL32018S-T Load Cell
|
List Price: $1,085.00 |
|
|
159289
|
Mount Assy,RLTM-1250lb 1250lb Tank Weigh Module Stainless Steel Incl RL32018S-T Load Cell
|
List Price: $1,085.00 |
|
|
159290
|
Mount Assy,RLTM-2500lb 2500lb Tank Weigh Module Stainless Steel Incl RL32018S-T Load Cell
|
List Price: $1,085.00 |
|
|
159291
|
Mount Assy,RLTM-5000lb 5000lb Tank Weigh Module Stainless Steel Incl RL32018S-T Load Cell
|
List Price: $1,310.00 |
|
|
159292
|
Mount Assy,RLTM-10,000lb 10,000lb Tank Weigh Module Stainless Steel Incl RL32018-T Load Cell
|
List Price: $1,310.00 |
3-Module Kit
4-Module Kit
Related Products
Rice Lake RL30745 Stainless Steel, Single-Ended Beam Load Cell
The Rice Lake RL30745 Stainless Steel, Single-Ended Beam Load Cell provides excellent protection against corrosive and washdown environments.
Rice Lake RL32018S-T Stainless Steel, Single-Ended Beam Load Cell
The RL32018S-T is a replacement for the RL30745 load cell used in the RLTM weigh modules as well as a replacement for the Mettler Toledo Model 745. Complete with 15ft or 30ft of cable, it is NTEP as well as FM approved.
