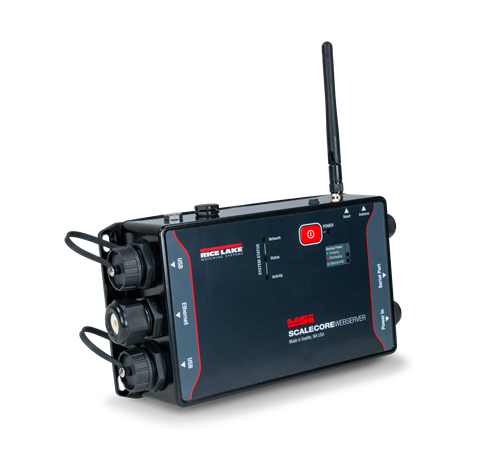

MSI ScaleCore Webserver

  • Display and control multiple ScaleCore based scales, indicators, remote displays
    and receivers through network connected devices using a web browser, including
    cell phones, tablets, and PCs.
  • Capable of functioning either with an existing Wi-Fi network or as its own Wi-Fi router
  • Can be powered by a dedicated power input or directly through the Ethernet cable where PoE (Power over Ethernet) is supported
  • RS-232 communications at up to 460 Kbps
  • Scale / load cell summing
  • Tiered login to limit scale functionality for different levels of users

(Contact MSI for application consultation)

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

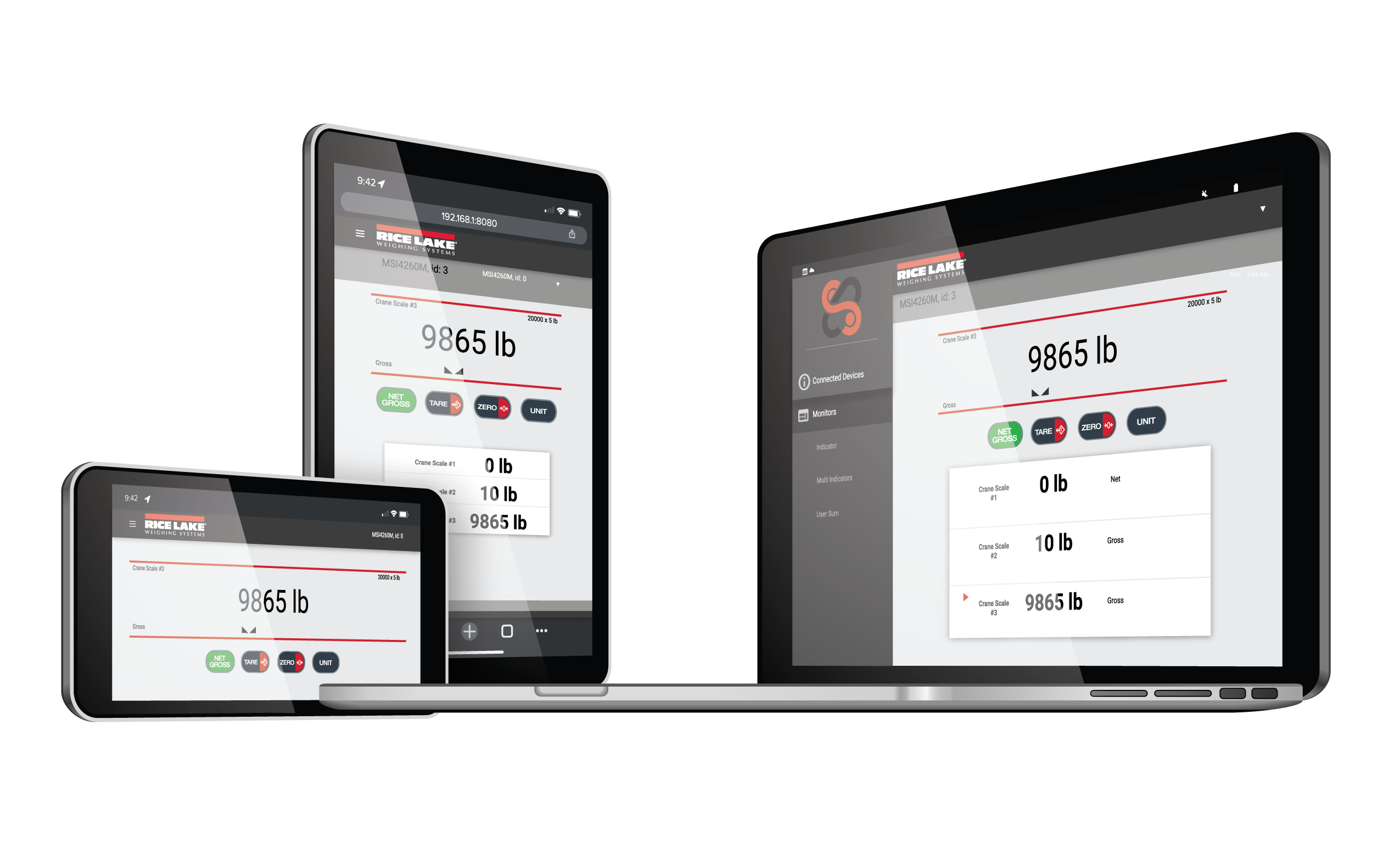

MSI ScaleCore Webserver is a network interface with a built-in web-browser allowing remote monitoring of your scale system from virtually anywhere.

Multiple Weighing Devices

Communicate with any combination of up to seven devices and any MSI ScaleCore based scale or weighing instrument equipped with Wi-Fi modem.

This can include:
MSI-3460
MSI-4260
MSI-4260M
MSI-7300*
MSI-8000
MSI-8000HD
MSI-8004HD
MSI-7000
MSI-7000HD
MSI-7001
MSI-7001HD
*(consult for applications utilizing the MSI-7300)


Operators have the option of viewing individual scale weights or easily summing several scales together. This makes the MSI ScaleCore Webserver ideal for applications utilizing multiple pick points in a lifting application or for viewing individual tank leg values for load cell mount kits.

Wireless Network Router

MSI ScaleCore Webserver can operate as its own wireless router or be used in conjunction with an existing wireless network to connect with each weighing device. A tiered login for supervisors and operators will help simplify operation by protecting critical functions and settings not used in day-to-day processes.

Minimum System Requirements:
Will display on any device with a web browser supporting HTML 5
Connected ScaleCore based MSI scales and indicators are required to have the optional Wi-Fi radio module

Connectivity:
Wi-Fi 2.4 GHz IEEE 802.11g
Gigabit Ethernet
2 × USB 2.0 Interface
RS-232 Serial

Status Annunciators:
Units (lb, kg, short tons (tn), metric tons (t), (NONE) gross/net, motion, center of zero

Operating Temperature:
-10 °C to 40 °C (14 °F to 104 °F)

Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Enclosure:
IP65, aluminum black powder coated (excludes 85 to 265VAC model)

Power:
5 to 6 VDC, 7 to 14 VDC, 85 to 265 VAC, PoE

Warranty:
One year limited

Approvals:
NTEP CC 21-098 Classes III and IIIL at 10,000d

Dimensions
A 8.54 in (217 mm) H 2.23 in (57 mm)
B 8.09 in (205 mm) I 9.13 in (232 mm)
C 4.70 in (119 mm) J 7.40 in (188 mm)
D 3.97 in (101 mm) K 4.90 in (124 mm)
E 3.47 in (88 mm) L 4.50 in (114 mm)
F 0.17 in (4 mm) M 4.70 in (119 mm)
G 0.25 in (6 mm)



Resources / Downloads

Title Download Email
MSI ScaleCore Webserver Download Email

Title Version Revision Download Email Category Archived
ScaleCore Webserver Technical Manual C Download Email MSI Crane Scales No

Title Collateral Wizard Request Download Email Category
MSI ScaleCore Webserver Download Email MSI Software

Title View Download Email Category
What Is MSI ScaleCore Webserver? View Download Email MSI Crane Scales|MSI Software|MSI Instrumentation

Parts

Part # Description List Price Cart
207943 Final Assembly, Scalecore Webserver 5VDC

Call for price

209704 Final Assembly, Scalecore Webserver 7-14VDC

Call for price

210817 Final Assembly, Scalecore Webserver 5VDC w/ wall adapter

Call for price

Options

Part # Description List Price Cart
213559 MSI-8000 Remote Display WiFi Handheld

Call for price

Consult Extended Range Antennas

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
