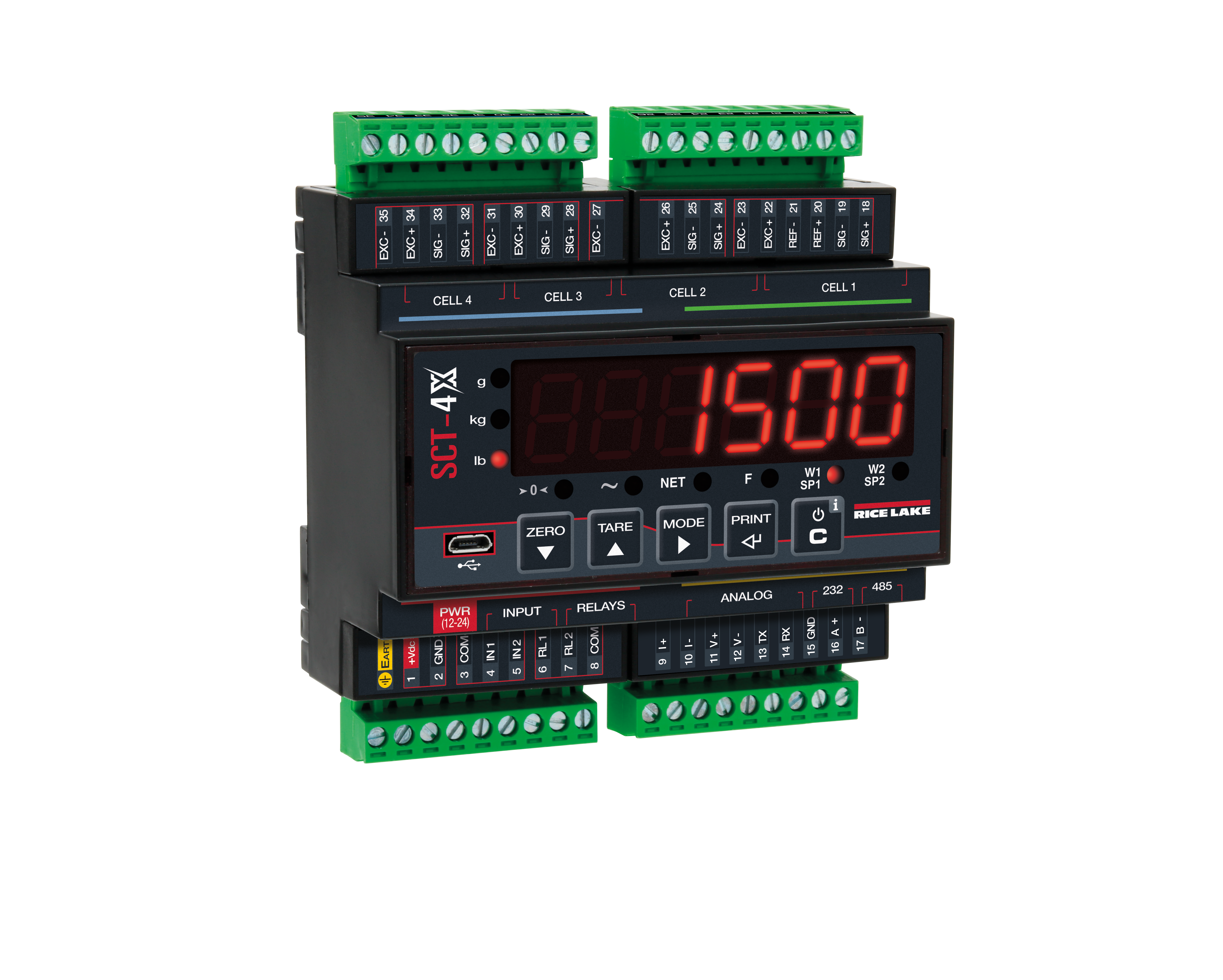

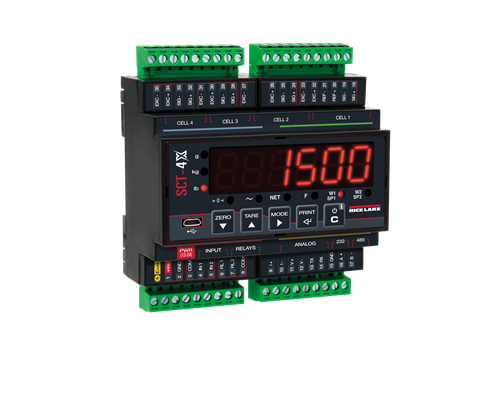

SCT-4X High-Speed Transmitter with Integrated Fieldbus and Webserver

Power:
12 to 24 VDC

Power Consumption:
5W

Excitation Voltage:
5 VDC, 120 mA
up to 16 x 350 ohm cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

A/D Sample Rate:
24-bit A/D
Single-channel up to 2600 conv/sec
4 channels up to 100 conv/sec

Resolution:
Internal: 3,000,000 counts
Display: up to 800,000
Up to 8 linearization points

Digital I/O:
Two inputs: 12/24 VDC
Two outputs:150 mA 48 VAC/ 150 mA 60 VDC

Communication Ports:

1 Micro-USB port (device) for PC configuration
(1) RS-485, (1) RS-232

Analog Output (if equipped):
Opt. isolated, 16-bit
0-20mA, 4-20mA (Maximum 350 ohm)
0-5VDC, 0-10VDC (Minimum 10,000 ohm)

Annunciators:
Nine LEDs

Display:
Six-digit 0.31 in (8 mm), red LED

Keys/Buttons:
Five tactile keys
Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by

Dimensions:
(L × W × H)
4.17 x 2.20 x 4.64 inches
(106 x 56 x 118 mm)

Temperature & Humidity:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
80% RH, non-condensing

Rating/Material:
NEMA Type 1 plastic pluggable connectors
ABS

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
CE-M EN 45501
