SURVIVOR® RL1855 HE-HS Weigh Modules

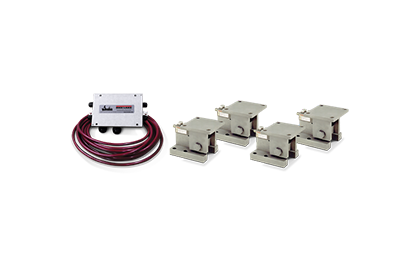

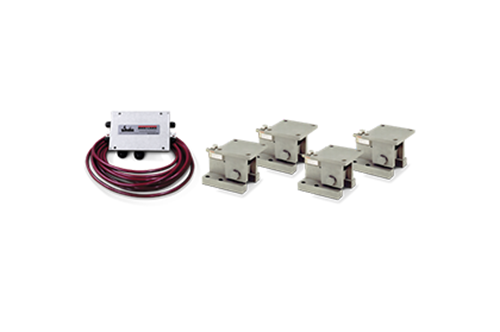

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three or four RL1855 HE stainless steel mounts
  • Three or four RL32218S-HE hermetically sealed NTEP Certified load cells
  • 25 ft of hostile environment EL147HE SURVIVOR load cell cable

Standard Features

  • All stainless steel construction
  • Hermetically sealed, stainless steel IP69K
  • NTEP Certified load cells, 5,000 d Class III multiple load cell
  • Self-checking design with lift off/tip off protection
  • Two-year limited warranty

Applications

  • Medium-capacity hoppers, bins and tanks
  • Batching/blending

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Weigh Modules with Simple Installation and Precise Accuracy

The internal height adjustment feature of the SURVIVOR RL1855 HE weigh module reduces the need for shims or external hardware, simplifying installation. The standard conduit adapter allows for connection to conduit for cable protection. With standard NTEP Certified, 1:5000 division Class III load cells, the RL1855 HE weigh module provides an accurate weighing system when properly installed. Highly versatile, the RL1855 HE weigh module offers worry-free operation in a wide variety of rugged applications.

Applications:

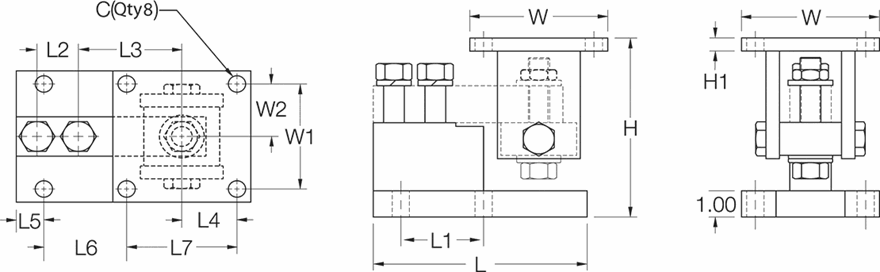

Rated
Capacity
C H
min/max
H1 L L1 L2 L3 L4 L5 L6 L7 W W1 W2
lb/in
1,000 to 4,000 0.62 5.25/5.56 0.50 6.00 2.00 1.00 3.00 2.00 0.68 1.94 4.00 5.00 4.00 2.00
5,000 to 10,000 0.62 6.12/6.62 0.50 7.75 3.00 1.50 3.75 2.00 1.03 2.97 4.00 5.00 4.00 2.00

Resources / Downloads

Title Download Email
RL1855 HE-HS Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Modules (Includes Load Cell)

Part # Description List Price Cart
170857 Mount Assy,1855HE-HS 1000 1000lb SST HE INCL RL32218S-HE IP69 Load Cell

List Price: $1,060.00

170858 Mount Assy,1855HE-HS 2500 2500lb SST HE INCL RL32218S-HE IP69 load cell

List Price: $1,060.00

170859 Mount Assy,1855HE-HS 4000 4000lb SST HE INCL RL32218S-HE IP69 load cell

List Price: $1,060.00

170860 Mount Assy,1855HE-HS 5000 5000lb SST HE INCL RL32218S-HE IP69 load cell

List Price: $1,140.00

170861 Mount Assy,1855HE-HS 10,000lb SST HE INCL RL32218S-HE IP69 load cell

List Price: $1,140.00

3-Module Kit

4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
