SURVIVOR® RT Rail and Truck Combination Scale

  • 200,00 lb capacity compression load cells
  • Standard platform sizes: 60 ft, 66 ft, 70 ft, 72 ft, 80 ft, 90 ft and 100 ft
  • 4 ft 9 in profile
  • Pandrol clips
  • Factory welded modules
  • Steel or concrete deck
  • Lightning and surge suppression kit
  • In-bridge conduit runs
  • 7 in reinforced concrete deck design
  • (1) 24 in square manhole ring and cover
  • Fully assembled factory welded modules

Options

  • Custom platform sizes and configurations
  • Concrete approach hardware
  • Additional manholes
  • Grain dumps
  • T-beam approach hardware
  • Rail trough channel

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Heavyweight Loads Need Heavy-duty Track Scales

SURVIVOR railroad track scales incorporate Rice Lake’s best-in-class weighbridge design to create a rugged, accurate, heavy-duty weighing system. Used in static weighing operations, the SURVIVOR RT Pit Type railroad track scale excels in high-accuracy, Legal for Trade weighing and meets AREMA and Cooper E-80 design specifications.

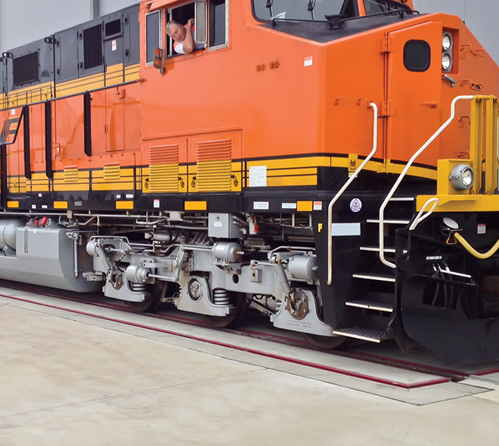

The SURVIVOR RT is a pit-type, rail/truck combination scale. Perfect for weighing a variety of car sizes, the SURVIVOR RT is capable of weighing rail cars as well as trucks. This scale is ideal for bulk cement, aggregate, grain, scrap metal and chemical applications. Cars can be positioned anywhere on the scale and a wide range of platform sizes and capacities provide accurate weighments.

Due to the variety of configurations, please consult the factory to discuss application requirements and for complete specifications and price quotations

Load Cells:
200,000 lb capacity compression load cells

Gross Capacity:
400,000 lb (Railway)
160,000 lb (Vehicle)



Sectional Capacity:
400,000 lb (Railway)

CLC:
100,000 lbs (Vehicle)

Warranty:
Weighbridge: Five-year limited
Electronic components: Two-year

Approvals:
NTEP 00-020, Class IIIL Measurement Canada AM-5642 Meets Cooper E-80 design specifications; Meets AAR and AREMA specifications



Resources / Downloads

Title View Email Category Type
How Do I Know Which Rail Scale I Need? Email Rail Scales Articles

Title Download Email
SURVIVOR RT Catalog Page Download Email

Title Version Revision Download Email Category Archived
SURVIVOR RT Rail Scale Installation Manual C Download Email Truck Scales|Rail Scales No

Title Download Email
SURVIVOR®️ RT Pit Type Railway Track Scale Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
SURVIVOR RT Rail/Truck Scale Request Download Email Rail Scales
Railroad Track Weighing Solutions Request Download Email Rail Scales

Title View Email Category
Rail Scale Glossary Download Email Rail Scales

Title View Download Email Category
Rice Lake’s Rail Scales and Configurations View Download Email Rail Scales

Parts

Part # Description List Price Cart / Quote
Consult Consult factory for rail scale products
