TransCore® Tags and Readers

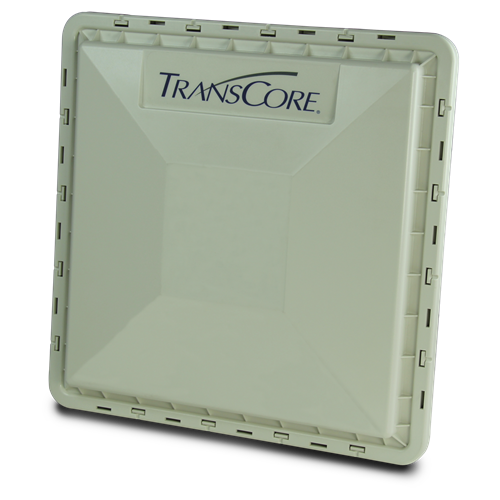

TransCore® SmartPass® RFID Reader

  • Fully self-contained, integrated reader
  • Ideal for truck scales, and parking and access control applications
  • 915 MHz RF band operation
  • Compatibility with a wide range of industry-standard formats
  • Weatherproof enclosure
  • Quick, simple installation by trained, authorized personnel
  • Programmable RF power
  • Compatible with a variety of RFID tag options including half and full frame RFID tags (beam or battery powered) as well as windshield RFID tag options (beam or battery powered)

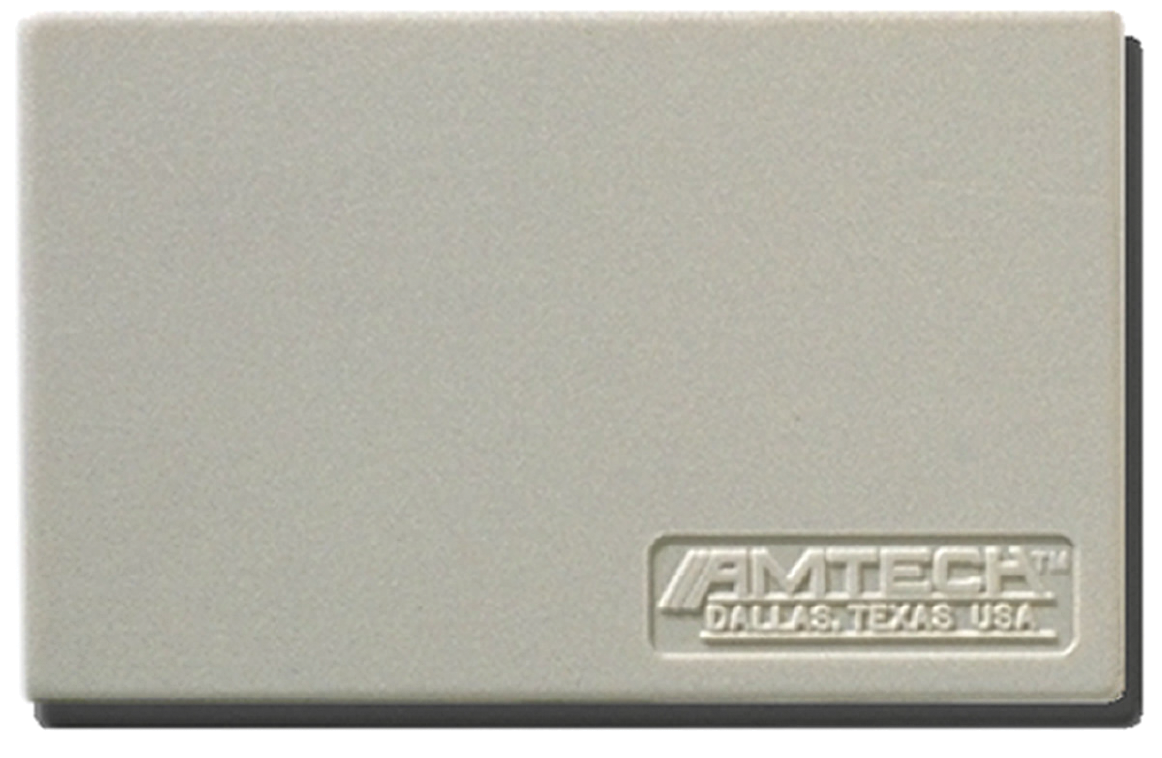

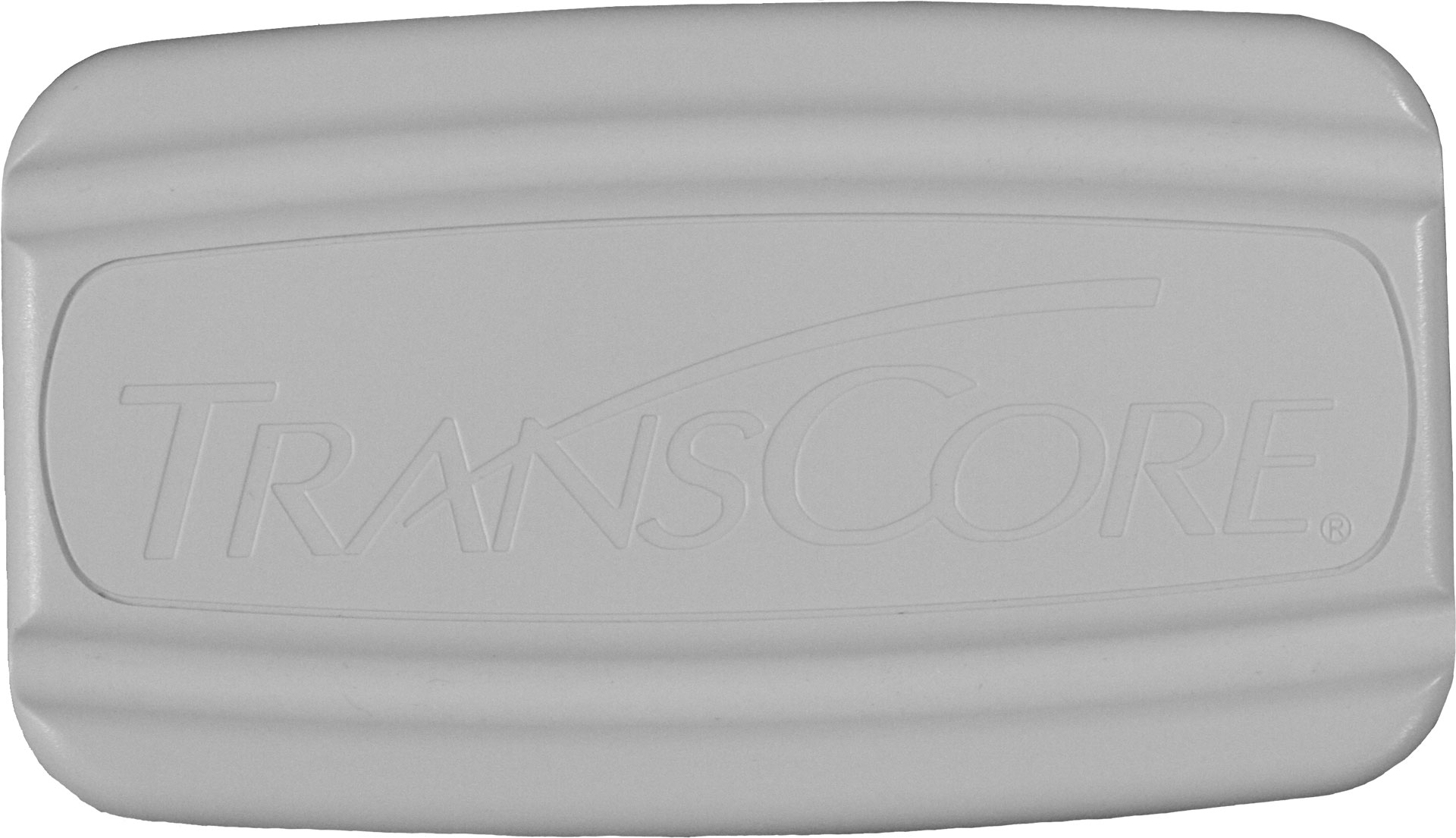

RFID Access Tags

  • Interior mounting on non-metallized windshield
  • Impact resistant, molded plastic case
  • Slim profile
  • Non-battery for extended service life (AT5402)
  • Dual-frequency (915 and 2450 MHz, AT5406)

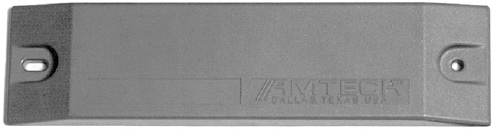

RFID Transportation Tags

  • Harsh environment durability
  • Factory sealed case
  • Non-battery for extended service life (AT5412)
  • Dual-frequency (915 and 2450 MHz, AT5414)

Frequency Range:
902 to 928MHz

RF Control:
By sense output or host command

Polarization:
Linear, horizontal

Read Range:
Read performance varies depending on tag and reader configuration and environment
Read range for all the SmartPass E4 Reader is 12 ft (3.7 m) typical to 17 ft (3.7 m) maximum

I/O Control:
Input: Two independent dry contact closures for sense circuits
Output: Two independent Form-C contacts

Dimensions:
(L × D × W)
5.5 × 15.5 × 3.25 in
(39.4 × 39.4 × 8.25 cm)

Weight:
9.5 lb (4.3 kg)

Mounting Surface:
Mount to pole or wall, indoor or outdoor

Enclosure:
Tamper-proof, polycarbonate housing

Operating Temperature:
-40 °F to 131 °F (-40 °C to 55 °C)

Humidity:
100% condensing

Vibration:
0.5 grams, 10 to 500 Hz

Input Power:
16 to 20 VAC, 47 to 63 Hz, or 16 to 28 V DC

Frequency Range:
AT5402: 902 to 928 MHz
AT5406: 902 to 928 MHz/2425 to 2475 MHz

Typical working range with TransCore® Encompass 4:
AT5402: 5 to 10 ft (1.5 to 3 m)
AT5406: 5 to 35 ft (1.5 to 11 m)

Polarization:
Parallel with longer side

Data Capacity:
Up to 10 alphanumeric characters (60 available bits) or Wiegand 26 to 54 bit formats

Power Source:
AT5402: Beam-powered
AT5406: Lithium battery

Dimensions:
(L × D × W)
AT5402: 3.6 × 2.3 × .27 in
(9.2 × 5.9 × .69 cm)
AT5406: 4.5 × 2.5 × .7 in
(11.4 × 6.4 × 1.8 cm)

Weight:
AT5402: 1.4 oz. (40 g)
AT5406: 3.5 oz. (99 g)

Service Life:
AT5402: >10 years
AT5406: Eight-year lithium battery (typical life)

Case Material:
Weatherproof, polycarbonate alloy, UV stabilized

Mounting Surface:
Interior: Non-metallic windshield

Mounting Method:
Semi-permanent mounting: Double-sided tape
Removable mounting: Adhesive-backed hook-and-loop material attached to the tag and vehicle windshield.

Operating Temperature:
-40 °F to 185 °F (-40 °C to 85 °C)

Frequency Range:
AT5412: 902 to 928 MHz
AT5414: 902 to 928 MHz/2425 to 2475 MHz

Typical Working Range with TransCore® Encompass 4:
AT5412: 5 to 10 ft (1.5 to 3 m)
AT5414: 5 to 35 ft (1.5 to 11 m)

Polarization:
Parallel with longer side

Data Memory Capacity:
SeGo and eGo Modes: 2048 bits
ATA Mode: 60 bits

Power Source:
AT5412: Beam
AT5414: Lithium battery for a typical eight-year life

Dimensions:
AT5412: 9.3 × 2.38 × 0.69 in
(23.6 × 6.0 × 1.75 cm)
AT5414: 9.32 × 2.39 × 0.75 in
(23.67 × 6.07 × 1.91 cm)

Weight:
AT5412: 5.3 oz (150.2 g)
AT5414: 6.6 oz (187 g

Case Material:
Weatherproof, polycarbonate, UV-stabilized case that is sealed after programming

Mounting Surface:
Any smooth metallic surface

Mounting Method:
Mount to any flat smooth metal surface using bolts, screws or blind rivets

Operating Temperature:
-40 °F to 185 °F (-40 °C to 85 °C)

Resources / Downloads

Title View Email Category Type
Truck Scale System Accessories View Email Truck Scales Articles

Title Download Email
RFID Access Tags Catalog Page Download Email
RFID TransCore SmartPass Catalog Page Download Email
RFID Transportation Tags Catalog Page Download Email

Parts

Access Tags

Part # Description List Price Cart
157184 Transponder, Transcore Window Tag, Interior Mount half frame beam powered 5 to 30 foot working range. Transcore AT5402

List Price: $42.00

157185 Transponder, Transcore Window Tag, Half Frame battery power, 3-35 foot working range Transcore AT5406

List Price: $58.00

159518 RFID TAG PROGRAMMING Factory RFID programming for TransCore RFID tags.

List Price: $310.00

RFID Reader

Transportation Tags

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
