UPC5000/UPC5010 Pressure Calibration Standard

  • Available in self-contained enclosure with carrying handles (UPC5000)
  • Six sets of ranges to choose from: 2,000/1,000/400 psi, 1,000/500/200 psi, 500/250/100 psi, 100/50/20 psi, 50/25/10 psi and 15/7.5/3 psi
  • Three independent selectable ranges in each instrument
  • ±0.05% F.S. accuracy of each independent selectable range
  • Available with Light Emitting Diode (LED) or Liquid Crystal Display (LCD)
  • Pressure display resolution 0.02% F.S. typical for each range
  • State-of-the-art push button calibration - No analog potentiometers or adjustments required
  • Lightweight, less than 33 pounds
  • Adjustable overpressure protection
  • Precision pressure vernier control
  • Self-contained 2,215 psi nitrogen cylinder
  • Voltage/current display mode for transducer testing
  • Supplies DC loop power
  • Non-destructible, finger tip control micrometering valves for pressure control
  • Quick-disconnect fitting and hose included
  • Different technicians can calibrate the same Device-Under-Test and get identical results
  • Calibration Certificate included; traceable to the National Institute of Standards and Technology (NIST)
  • Pneumatic only; no hydraulic fluid or distilled water messes

Applications

  • Engine test
  • Food processing
  • Pneumatic system checks
  • Aircraft manufacturing, government laboratories, oil industry, electric power plants (nuclear and fossil), and general industry
Request More Information
Portals 0 Products A4d9aabbb26b4871a6e74093d8e712ed Orig

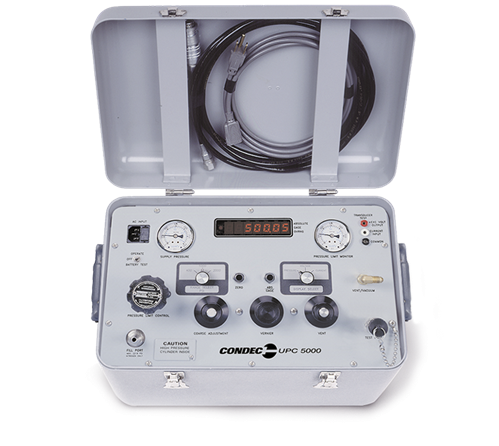

Combining heavy-duty construction and precision performance, the UPC5000 digital pressure calibration standard offers flexibility for a variety of pressure calibrating applications.

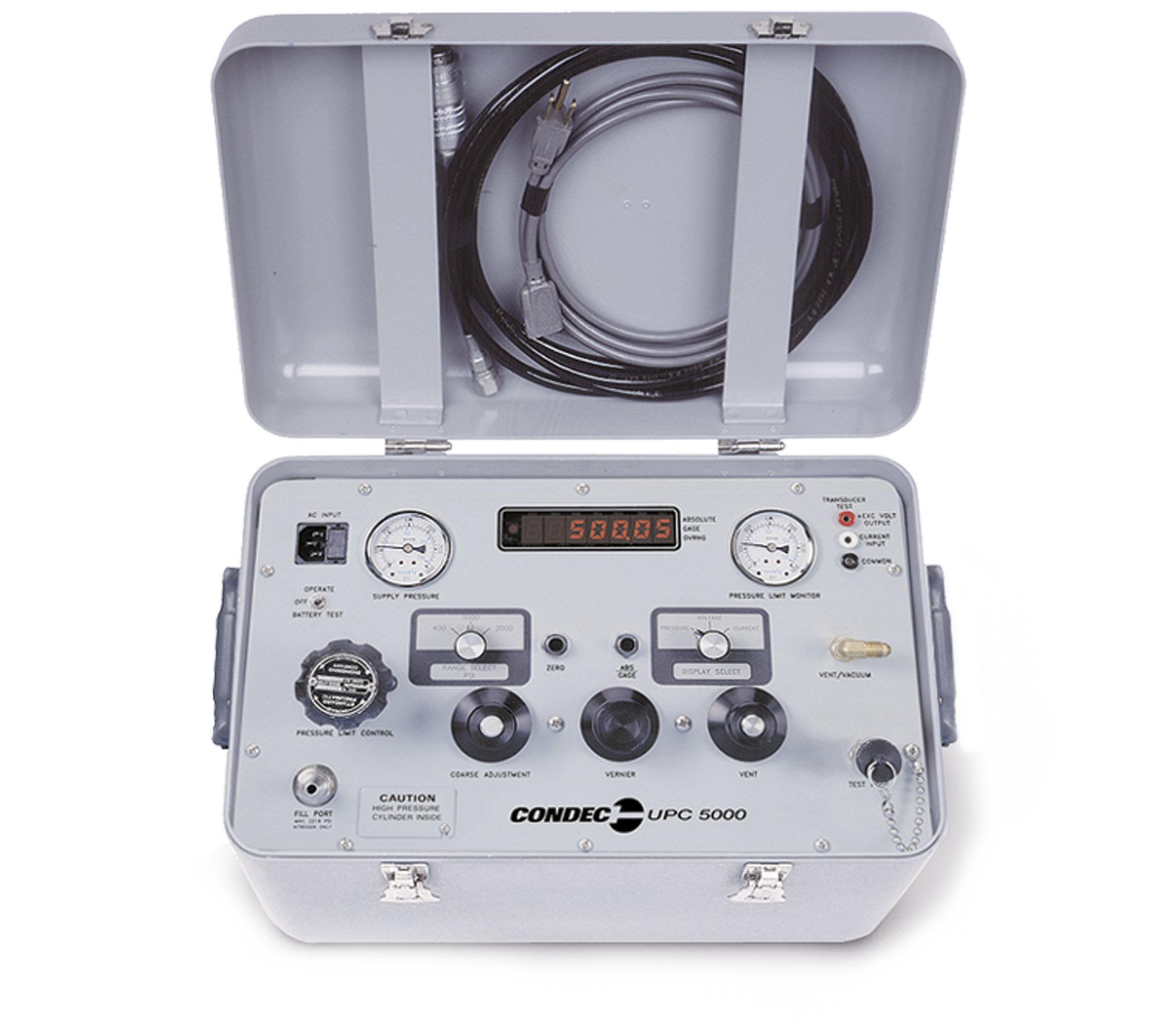

The compact UPC5000 pressure calibration standard includes a self-contained nitrogen cylinder, our patented Orion 2C valve and rechargeable battery, as well as all controls, hoses and connections required for rapid on-site calibration. A weight of less than 33 pounds makes this instrument truly portable. Whether your destination is a mountain-side wellhead transmitter or your own standards lab, this system provides industry-leading convenience for calibrating transmitters, transducers, gauges and other pressure sensitive devices.

Each UPC5000 series digital pressure calibration standard model is equipped with an exclusive precision vernier that provides infinite control to secure the most accurate readings possible. Three independent selectable ranges provide accuracy within 0.05% up to 2,000 psi. Readings appear on a large, digital LED display, eliminating parallax, interpolation and operator error. Increased protection is provided by a self-relieving regulator that eliminates costly repairs due to inadvertent pressure overshooting. The UPC5000 pressure calibration standard is easy to operate and training can be accomplished in as little as 10 minutes. Different technicians can calibrate the same transmitter and get identical results—every time.

Whether working in the oil and gas industry, metrology, power generation industry or other pressure-related industries, the UPC5000 pressure calibration standard performs beyond the standard for accurate, on-site calibration.

Available Calibration Modes:
Gauge, absolute or gauge and absolute

Overall accuracy:
±0.05% F.S. maximum. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature.

Power:
115 or 230 VAC 50/60 Hz and 12 volt, rechargeable internal, sealed lead acid battery, standard

Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing

Pressure Media:
Clean dry gaseous nitrogen, standard

Internal pressure cylinder:
Capacity: 7.0 standard cubic feet
Volume: 80 cubic inches
Rating: 2215 psi

Pressure supply gauge:
Size: Two-inch diameter
Range: 0-3000 psig

Overpressure Rupture Disc:
Rating: 3000 psig, nominal
Material: Stainless steel outer case

Pressure Media Filter:
Rating: 7 microns, nominal
Type: Field replaceable filter cartridge

Control Valves:
Type: Micro-metering with positive shut off, adjustable stop and replaceable seat, non-destructible
Material: Aluminum/stainless steel

Internal piping:
Tubing: 1/8 in. O.D., 0.028 in. wall thickness, copper, seamless
Couplings: Brass Swagelok®

Fill and Test Ports:
Style: Quick-disconnect type
Fill Port Pressure Rating: 3000 psig connected, 2000 psig disconnected
Test Port Pressure Rating: 5000 psig

Pressure Hoses:
Quantity supplied: Two; one input and one output
Length: 5 feet, nominal

Vernier Control:
Volume: 0.25 cubic inches
Vernier Mechanical Rotation: 16 turns, nominal
Adjustable Sensitivity: 0.0005 psi, minimum
Material: Aluminum/stainless steel

Pressure Limit Monitor Gauge:
Size: Two-inch diameter
Range: As appropriate for UPC5000/UPC5010 model range utilized

Pressure Limit Control:
Pressure Rating: 3000 psig maximum (inlet)
Output Pressure Range: As appropriate for UPC5000/UPC5010 model range utilized
Construction: Self-relieving, single stage regulator

Internal Pressure Sensor:
Type: Bonded, metal foil strain gauge or equal
Sensitivity: 3 mV/V, nominal
Construction: Completely weld sealed stainless steel outer body and pressure cavity

UPC5000 External Carrying Case:
Type: Aluminum case with cover and carrying handle
Material thickness: 0.090 in. nominal
Finish: Grey polyurethane baked-enamel paint, textured finish

Current Display:
0-20.000 mA counting by 0.005 mA

Weight:
UPC5000: Less than 33 lb (14.9 kg) including all hoses and cables

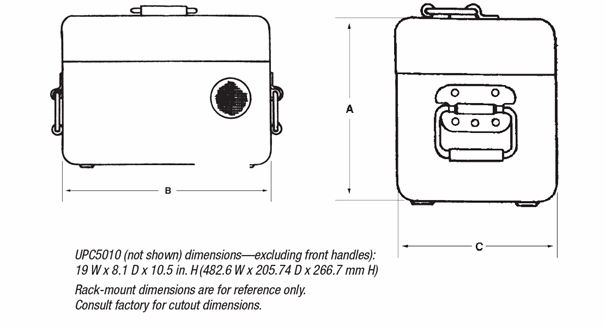

UPC5000 OVERALL DIMENSIONS
A 11.5 in (292.10 mm)
B 16.0 in (406.40 mm)
C 10.0 in (254.00 mm)

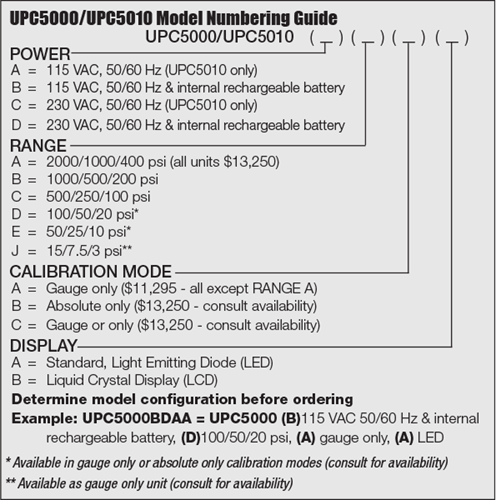

Resources / Downloads

Title Download Email
Condec UPC5000/UPC5010 Catalog Page Download Email

Parts

Part # Description List Price Cart
UPC5000 Portable Pressure Calibrator (NIST Traceable)

Call for price
UPC5010 (19in rack-mount version of UPC5000)

Call for price

Options

Part # Description List Price Cart
58483 Pressure Trap, UPC5000 All Ranges, Source 3000 PN 65315, UPS3110 Ranges 500 to 2000 PSI, DLR3110 Ranges 250 to 2500 PSI Operation Rated Working Pressure 3000 PSIG

Call for price
55354 Battery Kit,Rechargeable UPC5000 UPC5100, 12V, 2.9 Amp, Rechargeable Sealed Lead Acid Battery Approved for transport by Air. D.O.T., I.A.T., F.A.A and C.A.B. certified.

Call for price
63256 LIT,Manual UPC5000 UPC5010 Operation and Maintenance

Call for price
55294 Fitting,Test Port Quick Disconnect Fitting Male Coupling Body to 1/4 NPT Swivel Female SST Finger Tighten to DUT, Use with UPC5000 UPC5010 or Source 3000 PN 65315 Used as Non Permanent Connection

Call for price
55394 Fitting,Test Port Quick Disconnect Hose Fitting Male Coupling Body to 1/4 NPT Female SST 6500 PSI & Below for UPC5000 UPC5010 Source 3000 Adapter for DPDG Gauges to Mate with Source 3000

Call for price
130239 Fitting, Test Port Quick Disconnect Hose Fitting Male Coupling Body to 1/8 NPT Female SST 6500 PSI & Below for UPC5000 UPC5010 Source 3000

Call for price
55279 Hose Kit,Test Port Output UPC5000 DPC1000 DPC2000 5 ft Long with Quick Disconnect SST Plug One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End 2500 PSIG Working Pressure

Call for price
55300 Hose Kit,Test Port Output UPC5000 DPC1000 DPC2000 10 Foot Long with Quick Disconnect SST Plug One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End

Call for price
55310 Hose Kit,Test Port Output UPC5000 DPC1000 DPC2000 20 Foot Long with Quick Disconnect SST Plug One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End

Call for price
57716 Fitting,Fill Port Quick Disconnect Hose Fitting Female Coupling Body to 1/4 NPT Female Brass for UPC5000 UPC5010 UPC5100 UPC5110

Call for price
55282 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 5 Foot Long hose, 2500 psig working pressure, fitted with Quick Disconnect Brass Socket on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55313 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 10 Foot Long 2500 PSIG Working Pressure with Quick Disconnect Brass Socket on One End and 1/4 Inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55319 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 15 Foot Long with Quick Disconnect Brass Socket on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55322 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 20 Foot Long with Quick Disconnect Brass Socket on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
60109 CONDEC Calibration Module For UPC5000 UPC5010 UPC5100 UPC5110 UPC5200 UPC5210

Call for price
107288 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Female Quick-Disconnect to Male Coupling Body other end, 3000 PSI, Temp Range 0 Deg F to 200 Deg F, for hands-free display reading when used between Source 3000 Test Port and Condec Pressure Trap PN 58483

Call for price
60242 Fitting,External Adapter 1/4-18 Female NPT to 7/16-20 37 Degree Flare Male JIC, Max Working Pressure 4500 PSI, Length 1.39 In, Steel, Trivalent Chromium Zinc Finish, Standards SAE/JIC

Call for price
