UPC5100/UPC5110 Pressure Vacuum Calibration Standard

  • Available in self-contained enclosure with carrying handles (UPC5100)
  • Five independent selectable ranges in each instrument ±0-28 inHg, ±0-387 inH2O, 0-2771 inH2O, ±0-96 kPa, 0-100 psi
  • Available with Light Emitting Diode (LED) or Liquid Crystal Display (LCD)
  • Pressure/vacuum display resolution 0.02% F.S. typical for each range
  • ±0.05% F.S. accuracy for each range
  • State-of-the-art push button calibration—no analog potentiometers or adjustments required
  • Different technicians can calibrate the same Device-Under-Test and get identical results
  • Easy to operate, training can be accomplished in 10 minutes
  • Lightweight - less than 35 pounds
  • Adjustable overpressure protection
  • Precision vernier control
  • Self-contained nitrogen cylinder and vacuum converter provides 27 inHg (w/out external pump) to 100 psi
  • Voltage/current display mode for transducer testing
  • Quick-disconnect fitting and hose included
  • Pneumatic only; no hydraulic fluid or distilled water messes
  • Calibration certificate included; traceable to the National Institute of Standards and Technology (NIST)

Applications

  • Aircraft manufacturing, government laboratories, oil industry, electric power plants (nuclear and fossil), and general industry
  • Pharmaceutical validation and calibration
  • Bio-medical quality assurance
  • Condenser vacuum
Request More Information
Portals 0 Products 568823Ebddd64228ba92c3decaa76a08 Orig

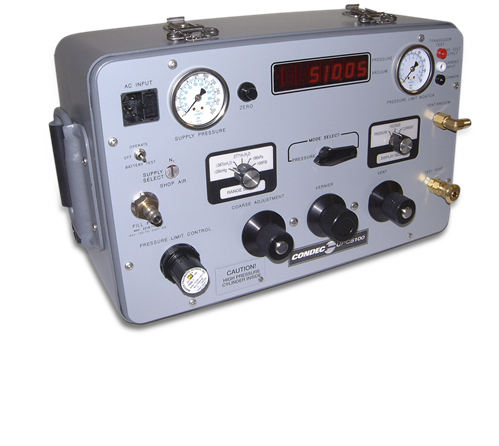

Designed for quick, convenient and accurate performance, the UPC5100 pressure vacuum calibration standard takes portability to a new level.

By incorporating self-contained pressure and vacuum sources, the UPC5100 digital pressure vacuum calibration standard eliminates the hassle and mess of hauling around extra hoses and pumps. Everything required for immediate operation is right at your fingertips. Weighing less than 35 pounds, the UPC5100 pressure vacuum calibration standard is easily transported for on-the-go operation.

Each UPC5100 pressure vacuum calibration standard is equipped with five switch-selectable measurement ranges for vacuum and low-pressure applications from 27 inches Hg vacuum to 100 psi. The patented precision Orion 2D vernier control allows the operator to rapidly secure the most accurate pressure value possible. Increased protection is provided by a self-relieving regulator that eliminates costly repairs due to inadvertent pressure overshooting. The UPC5100 pressure vacuum calibration standard is easy to operate and training can be accomplished in as little as 10 minutes. Different technicians can calibrate the same transmitter and get identical results...every time.

From aerospace, to health care, to general industry, the portable UPC5100 or 19 inch rack-mount UPC5110 provides everything you need for fast, accurate digital calibration regardless of where the job takes you.

Available Calibration Modes:
Gauge and vacuum

Overall accuracy:
±0.05% F.S. maximum. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature

Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95% non-condensing

Pressure Media:
Clean dry gaseous nitrogen or clean dry air

Pressure Media Filter:
Rating: 7 microns nominal
Type: Field replaceable filter cartridge

Control Valves:
Type: Micro-metering with positive shut off, adjustable stop and replaceable seat, non-destructible
Material: Aluminum/stainless steel

Internal piping:
Tubing: 5/32 in. nylon tubing, 1/8 in. copper
Fittings: Brass

Test Port:
Style: Quick-disconnect type
Pressure rating: 600 psi maximum, connected or disconnected

Pressure Hose:
Quantity supplied: One output
Length: 5 feet, nominal

Vernier Control:
Volume: 0.25 cubic inches
Vernier Mechanical Rotation: 16 turns, nominal
Adjustable Sensitivity: 0.0005 psi, minimum
Material: Aluminum/stainless steel

Pressure Limit Monitor Gauge:
Size: Two-inch diameter
Range: 160 psi
Pressure supply gauge: 3000 psi
Regulator: 100 psi max
Construction: Self-relieving, single stage regulator

Internal Pressure Sensor:
Type: Bonded, metal foil strain gauge or equal
Sensitivity: 3 mV/V, nominal
Construction: Completely weld sealed stainless steel outer body and pressure cavity

UPC5100 External Carrying Case:
Type: Aluminum case with cover and carrying handle
Material thickness: 0.090 in. nominal
Finish: Grey polyurethane baked-enamel paint, textured finish

Current Display:
0-20.000 mA counting by 0.005 mA

Vacuum Converter:
Capable of generating 27 inches Hg vacuum stand alone or 30 inches Hg with external vacuum pump

Weight:
UPC5100: Less than 35 lb (15.9 kg) including all hoses and cables

Resources / Downloads

Title Download Email
Condec UPC5100/UPC5110 Catalog Page Download Email

Parts

Part # Description List Price Cart

Options

Part # Description List Price Cart
58487 Pressure Trap,UPC5100 All Ranges, UPS3110 Ranges 15 to 100 PSI, DLR3110 Ranges 3 to 100 PSI Operation - Note: For Replacment Bowl O-Ring order PN 161833

Call for price
55354 Battery Kit,Rechargeable UPC5000 UPC5100, 12V, 2.9 Amp, Rechargeable Sealed Lead Acid Battery Approved for transport by Air. D.O.T., I.A.T., F.A.A and C.A.B. certified.

Call for price
55291 Fitting,Test Port Quick Disconnect Fitting Male Coupling Body to Finger Tighten 1/4 NPT Female SST for UPC5100 UPC5110 UVC1000 UVC1010, Used as Non Permanent Connection Finger Tighten to DUT, no tools required

Call for price
60195 Fitting,Test Port Quick Disconnect Hose Fitting Male Coupling Body to 1/4 NPT Female Brass for UPC5100 UPC5110 UVC1000 UVC1010 UPS3110 15-100 PSI DLR3110 3-100 PSI

Call for price
63257 LIT,Manual UPC5100 Operating

Call for price
55281 Hose Kit,Test Port Output UPC5100 5 Foot Long hose, 2500 psig working pressure, with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End

Call for price
55328 Hose Kit,Test Port Output UPC5100 10 Foot Long with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55336 Hose Kit,Test Port Output UPC5100 15 Foot Long with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55341 Hose Kit,Test Port Output UPC5100 20 Foot Long with Quick Disconnect Brass Plug on One End abd 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
57716 Fitting,Fill Port Quick Disconnect Hose Fitting Female Coupling Body to 1/4 NPT Female Brass for UPC5000 UPC5010 UPC5100 UPC5110

Call for price
55282 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 5 Foot Long hose, 2500 psig working pressure, fitted with Quick Disconnect Brass Socket on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55313 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 10 Foot Long 2500 PSIG Working Pressure with Quick Disconnect Brass Socket on One End and 1/4 Inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55319 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 15 Foot Long with Quick Disconnect Brass Socket on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
55322 Hose Kit,Fill Port Input UPC5000 UPC5100 DPC1000 DPC2000 20 Foot Long with Quick Disconnect Brass Socket on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Call for price
60109 CONDEC Calibration Module For UPC5000 UPC5010 UPC5100 UPC5110 UPC5200 UPC5210

Call for price
167474 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Female Quick-Disconnect to Male Coupling Body other end, 100 PSI, Temp Range 0 Deg F to 200 Deg F, for use between UPC5100 models Test Port and CONDEC Pressure Trap 58487 to allow Trap input/output to be parallel with UPC5100 front panel), No installation tools required

Call for price
