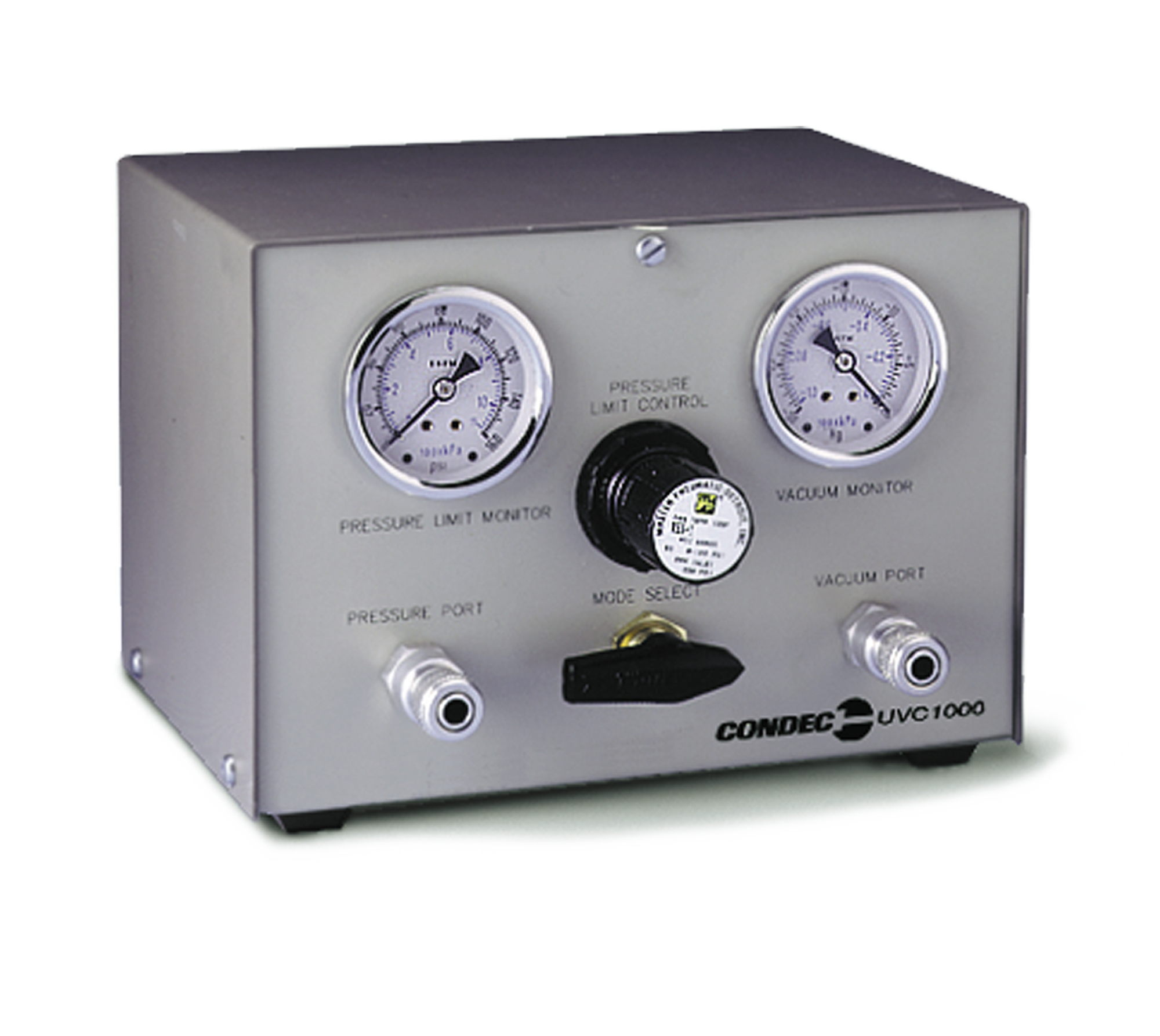

UVC1000/UVC1010 Vacuum Generator/Pressure Controller

  • Two modes of operation: vacuum or pressure
  • 29 inHg vacuum from shop air supply
  • Lightweight design
  • Built-in vacuum converter and pressure regulator
  • Two test (output) fittings

Applications

  • Hazardous environments
  • Source for calibration of compound gauges
  • Low-cost alternative to vacuum pump
  • Need for precise vacuum or pressure control

Rugged, versatile, portable—the UVC1000 vacuum generator/pressure controller packs a lot of performance into one affordable instrument.  Our 19-inch rack-mount UVC1010 is great for applications where portability is not as important.

Complete mechanical operation allows operators to utilize the UVC1000 pressure controller in areas that are off limits to vacuum pumps. This efficient pressure controller unit contains a built-in vacuum converter that works with existing shop air to power up to 29 inches of mercury vacuum. As a result, the UVC1000 pressure controller eliminates fumes and vibrations that are dangerous in nuclear power plants, oil refineries and other hazardous environments.

Regardless of the location, the UVC1000 vacuum generator and pressure controller is convenient for on-the-go operation. Its lightweight structure and compact design provide quick and convenient performance. This versatile unit can also be used to control and regulate positive pressure.

The UVC1000/UVC1010 is the ideal source for vacuum and pressure control in an endless number of applications and locations.

Pressure Media:
Filtered shop air

Pressure Input:
100-160 psi*, 4.2 SCFM, AN-4 37° flared tube setting

Pressure Limit Monitor Gauge:
Size: Two-inch diameter
Range: 0-160 psi

Vacuum Monitor Gauge:
Vacuum Monitor Gauge:
Size: Two-inch diameter

Regulator:
Aluminum/brass 0-100 psi output pressure

UVC1000 Case:
16 gauge painted steel

Pressure/Vacuum Selector:
Brass

Fittings:
Brass, two quick-disconnect male coupling to 1/4 inch female NPT
Internal Tubing: 250 psi rated tubing

Weight:
UVC1000: 6.6 lb (2.9 kg)
UVC1010: Approximately 7 lb (3 kg)

* At input pressures less than 100 psi, vacuum level may be less than 29 inches Hg

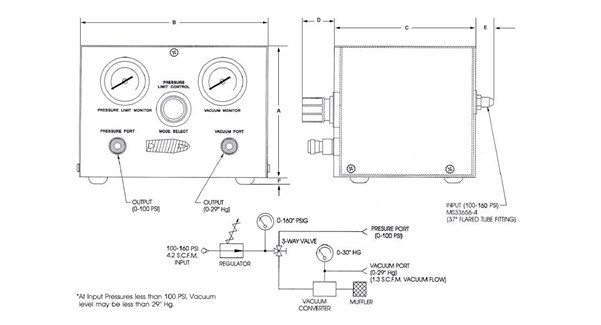

UVC1000 Dimensions
A 5.70 in. (144.78mm)
B 8.14 in. (206.75mm)
C 6.10 in. (154.94mm)
D 1.30 in. (33.02 mm)
E 0.80 in. (20.32 mm)
F 0.30 in. (7.62 mm)



Resources / Downloads

Title Download Email
Condec UVC1000/UVC1010 Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
56085 Vacuum Generator/Pressure Controller Portable Table Top - Model UVC1000-1

Consult

Options

Part # Description List Price Cart / Quote
55281 Hose Kit,Test Port Output UPC5100 5 Foot Long hose, 2500 psig working pressure, with Quick Disconnect Brass Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling On Opposite End

Consult

69481 LIT,Manual UVC1000 UVC1010 Operation And Maintenance

Consult

60195 Fitting,Test Port Quick Disconnect Hose Fitting Male Coupling Body to 1/4 NPT Female Brass for UPC5100 UPC5110 UVC1000 UVC1010 UPS3110 15-100 PSI DLR3110 3-100 PSI

Consult

55291 Fitting,Test Port Quick Disconnect Fitting Male Coupling Body to Finger Tighten 1/4 NPT Female SST for UPC5100 UPC5110 UVC1000 UVC1010, Used as Non Permanent Connection Finger Tighten to DUT, no tools required

Consult
