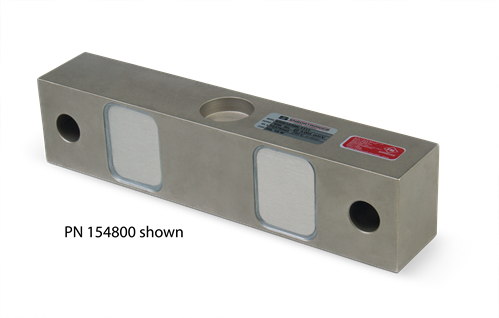

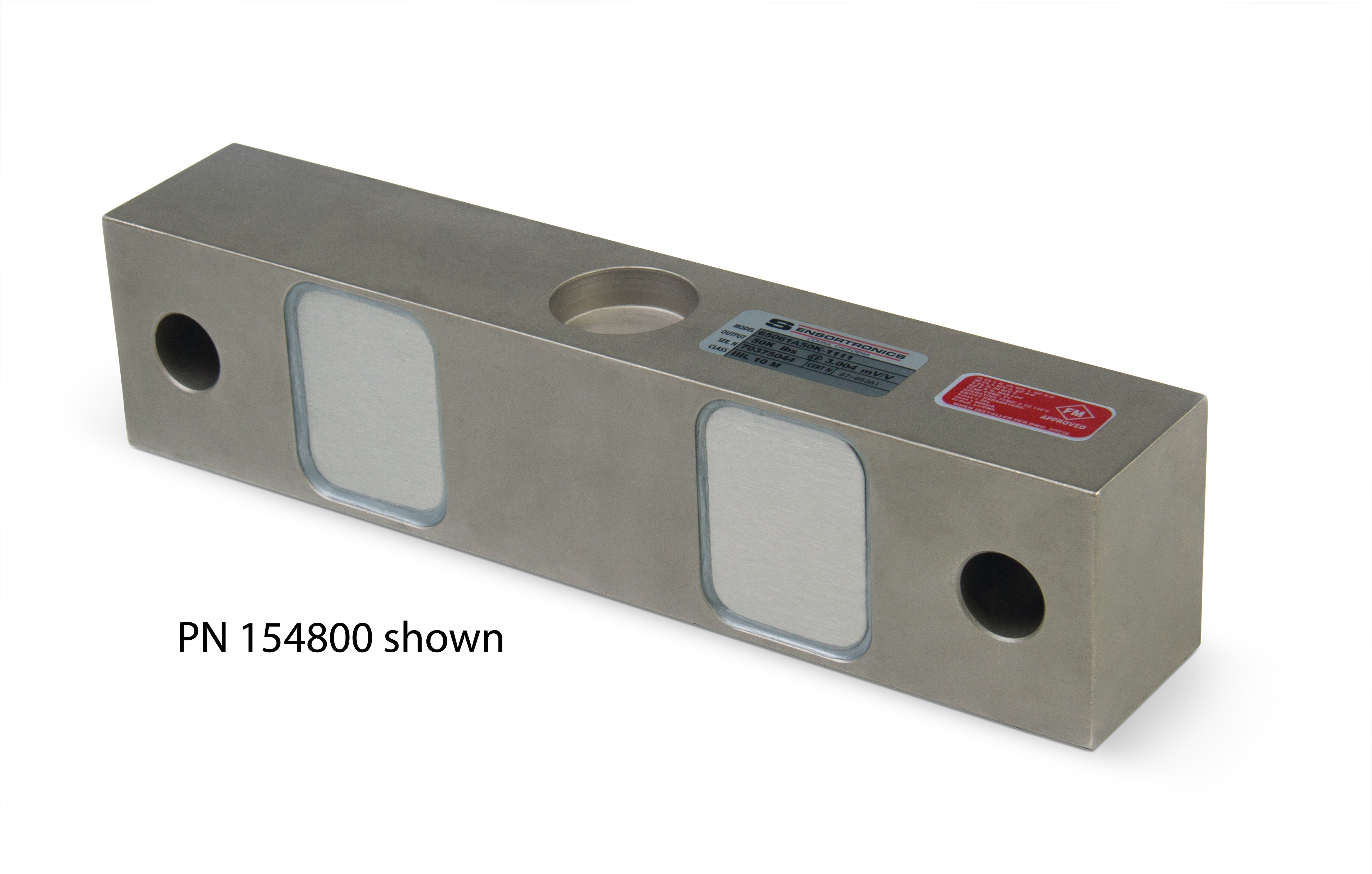

VPG Sensortronics 65061A Alloy/Stainless Steel, Double-Ended Beam Load Cell

This unique double-ended beam has been a standard model in Fairbanks truck scales for years. This NTEP Certified, zinc plated, alloy steel load cell (stainless, welded-seal in 50,000 lb is also available) is sealed with a potting compound that has been proven through the test of time in numerous applications. This unit is offered in capacities of 40,000 lb and 50,000 lb, and is affordably priced compared to other replacement load cell options in the marketplace. Each unit is provided with 60 ft of copper overbraid load cell cable.


Some approval documents are available to view by clicking the icons below.


WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
699 to 707 ohm

Input Resistance:
686 to 714 ohm

High-alloy steel, nickel plated
Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67
Welded-seal, IP67: pn 67387

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
60 ft, copper overbraid

Cable Diameter:
0.230 in
Polyurethane jacket

Cable Coloring:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

One-year limited


Rated Capacity A B C D E F
40,000 1.94 2.44 8.75 0.78 10.50 0.257 × 0.375 DP
50,000 1.94 2.44 8.75 0.78 10.50 0.257 × 0.375 DP



Resources / Downloads

Title Download Email
Sensortronics 65061A Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Alloy Steel

Part # Description List Price Cart
47850 Load Cell,DEB 65061A40K- 1108 40000lb 60ft 3mV/V 700 Ohm WW NTEP IIIL 10M IP67

List Price: $1,267.00

47851 Load Cell,DEB 65061A50K- 1108 50000lb 60ft 3mV/V 700 Ohm WW NTEP IIIL 10M IP67 alloy steel

List Price: $1,267.00

Stainless Steel


Mounting Assembly Accessories

Part # Description List Price Cart
25524 Load Button ASSY,65061 Load Cell. Not to be used with load cell with counterbore load hole.

List Price: $51.00

50807 Pin,Load Rodan 1-3/4 DIA 1-3/4 DIA x 4-1/16 Long

List Price: $98.00

44837 Bearing Screw 2-12 UNC x 2.35 Long

List Price: $130.00

50748 Bushing,.880ID x .856Long Mild Steel Plated Fairbanks Rodan

List Price: $40.00

50767 Stand,4.62x6.25x15.38 Machined And Painted Fairbanks Rodan Truck Scale

List Price: $327.00

50747 Support Pin,.75DIA x 4.50 Long Fairbanks Rodan

List Price: $35.00

15180 Washer,Plain STD 3/4 SST ID=.812 OD=1.750 Thickness=.109

List Price: $2.30

15244 Pin,Cotter 5/32x1 Extended Prong Steel Zinc Plated

List Price: $1.50

154802 Load Button, 65061A Rodan Scale with counterbore load hole Stainless Steel

List Price: $37.00
