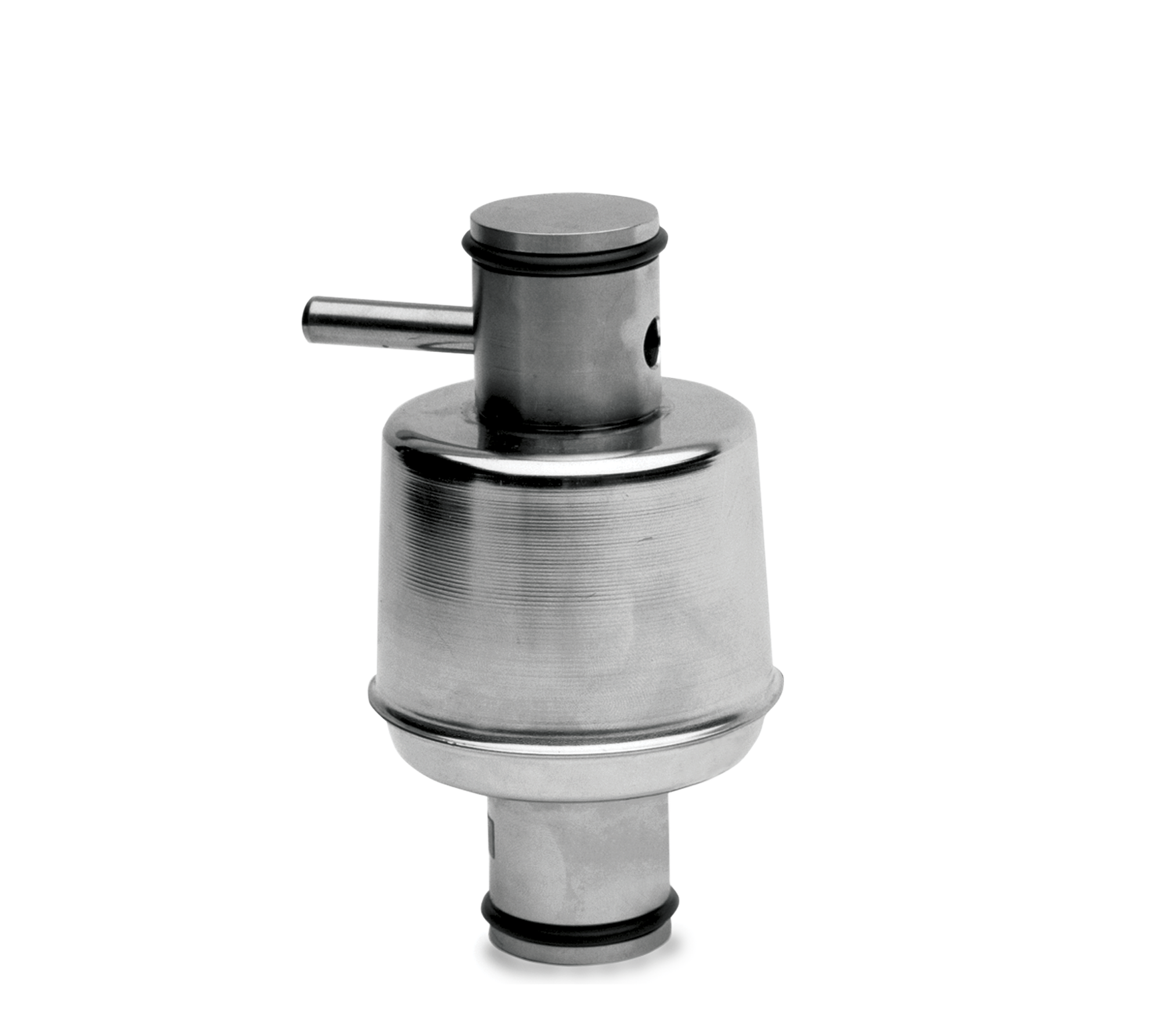

VPG Sensortronics 65114 Rocker Column Load Cell, Stainless Steel
The 65114 was specially designed to provide the superior protection of stainless steel and hermetic sealing for truck scale applications. This model is built to provide a high degree of accuracy while protecting against the severe conditions that truck scale load cells often endure. Available in two different heights, this product can easily be adapted to existing applications.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
65114 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |

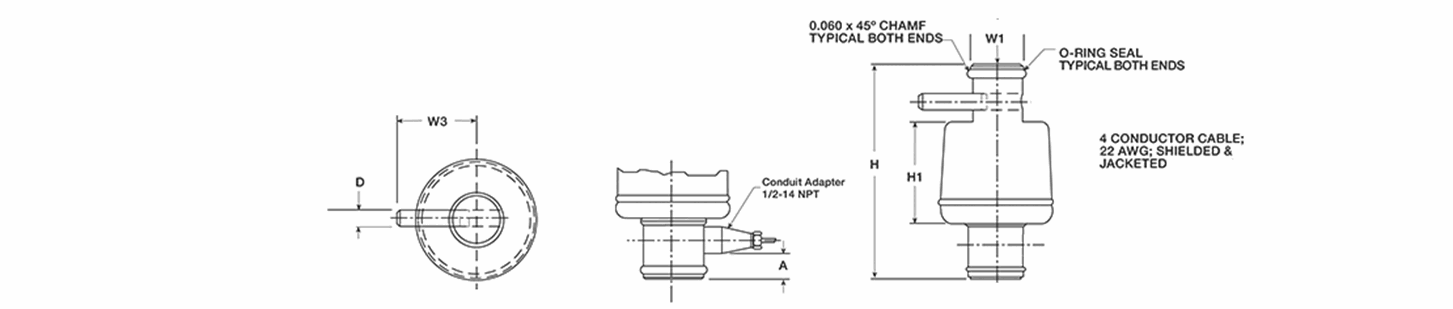

65114 Load Cell Dimensions
| Rated Capacity | A | D | H | H1 | H2 | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 50,000 | 0.62 | 0.38 | 6.00 | 2.82 | 1.59 | 1.46 | 1.46 | 2.5 |
| 50,000LE | 0.62 | 0.38 | 7.56 | 2.82 | 1.59 | 1.46 | 1.46 | 2.5 |
LE=large envelope
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 46497 | Load Cell,CSR 65114S50K- 1000H 50000lb 35ft Sensortronics 2mV/V 1000 Ohm WC SST HS IP68 NTEP IIIL 10M |
List Price: $842.00 |
|
| 47952 | Load Cell,CSR 65114S50K- 1500H 50000lb 35ft Sensortronics 2mV/V 1000 Ohm WC SST HS IP68 NTEP IIIL 10M |
List Price: $842.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 116181 | Spring Pin,Slotted 3/8 x 2 inch 420 SST Spring pin for RL75114-50k |
List Price: $5.00 |
|
| 92988 | O Ring,Buna-N-70 #218 Replacement O Ring for RLSCA/RL75114 Load Cell 1-1/4X1-1/2X1/8 |
List Price: $1.00 |
