Shipping Scale + Dimensioning Bundle
iDimension® Plus Dimensioner and BenchPro™ Scale Bundle
iDimension® PWD Dimensioner and Summit Floor Scale Bundle
BenchPro BP-S Specifications
BenchPro BP-S Manual
iDimension Plus Specifications
iDimension Plus Manual
iDimension Plus Sales Literature
iDimension PWD Specifications
iDimension PWD Manual
iDimension PWD Sales Literature
iDimension® Plus and BenchPro™ Bundle
Instantly display dimensions and weight of any item prepared for shipment. USB touchscreen display provides operator keys, weight, dimensions and image of items dimensioned. Requires integration by FedEx for compatibility with FedEx Ship Manager.
- Easy assembly and set-up, start dimensioning in less than 30 minutes
- Displays dimensions in less than one second
- 0.2" accuracy for shipping cartons
- 0.5" accuracy for irregular shaped packages
- Install on work station, table top
- Includes Rice Lake Weighing System 12" x 14" 150lb BenchPro scale with mild steel platform
- Maximum Package Size Examples shown below, contact Rice Lake for more details
| Length | Width | Height |
|---|---|---|
| 48" | 28" | 8" |
| 44" | 28" | 12" |
| 40" | 28" | 16" |
| 34" | 25" | 22" |

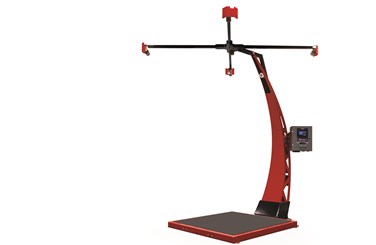

iDimension® PWD Dimensioning System and Summit Floor Scale Bundle
The iDimension PWD and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers.
- Capable of measuring pallets up to 6 feet cubed or packages as small as 6 inches
- Designed to easily transfer images and dimensions to a network
- The built-in web service interface offers simple integration through HTTP requests, status checking and XML parsing
- Installs in less than a day
- 5 x 5ft (1.5 x 1.5m), 5,000lb (2,268kg) capacity floor scale
- Built-in bumper guards
- 880 panel mount weight indicator
- USB connected touchscreen display
- Overhead sensors
- Integration Methods
- QubeVu Desktop App: Configurate keyboard to push weight and dimensions into software
- iDimension Software Suite Windows 10: Integrate data and images into WMS & ERP
Part Numbers and Pricing
| Part # | Products | Your Price |
|---|---|---|
| 186382 | iDimension Plus System Includes iDimension Plus and BP 1214-75S With Painted Shroud | $7470.00 |
| Part # | Products | Your Price |
|---|---|---|
| 199318 | iDimension PWD System, NTEP approved | $28,000.00 |
Request an Order
Please complete the information below and a Rice Lake Weighing Systems representative or an authorized Rice Lake Weighing Systems distributor will be in contact with you soon.
