MSI-8000HD Indicator/Remote Display

Power:
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC
Optional battery power module available

Excitation Voltage:
4.8V current limited and over-voltage protected

RF Remote Channels:
Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only)

Service Counters:
A/D version only

A/D Inputs:
Two independent or summing load cell inputs

Filtering:
Off, Low, Hi-1, Hi-2

RF Radio Link:
2.4 GHz 802.15.4
Compatible with all ScaleCore™ based products including:
MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3,

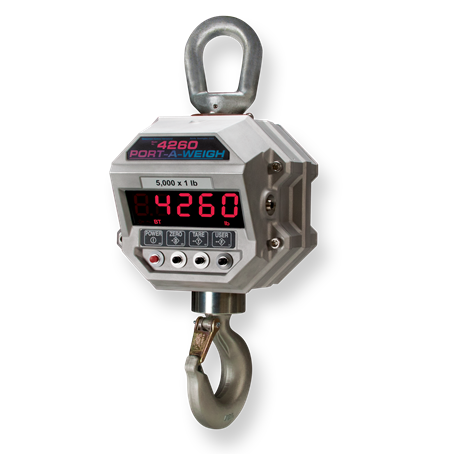

MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001

RF Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Communication Ports:
Dual RS-232 communication ports

Optional Communications:
Wi-Fi
Serial RF (Single Sequence or FHSS)

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs
Channels: 1, 2, 3, 4, TTL

Display:
Six-digit 1.0 in (26.4 mm) LCD

Units Displayed:
Pounds, kilograms, tons, metric tons, kilonewtons

Keys/Buttons:
On/Off, Zero (100%), Tare, Print, and Two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching

Rating/Material:
Enclosure: NEMA Type 4, IP68 milled anodized aluminum with O-ring gaskets

Temperature Range:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)
Certified: 14 °F to 104 °F (-10º °C to 40 °C)

Warranty:
One-year limited

Approvals:
NTEP CC 15-110 (-10 °C to 40 °C)
