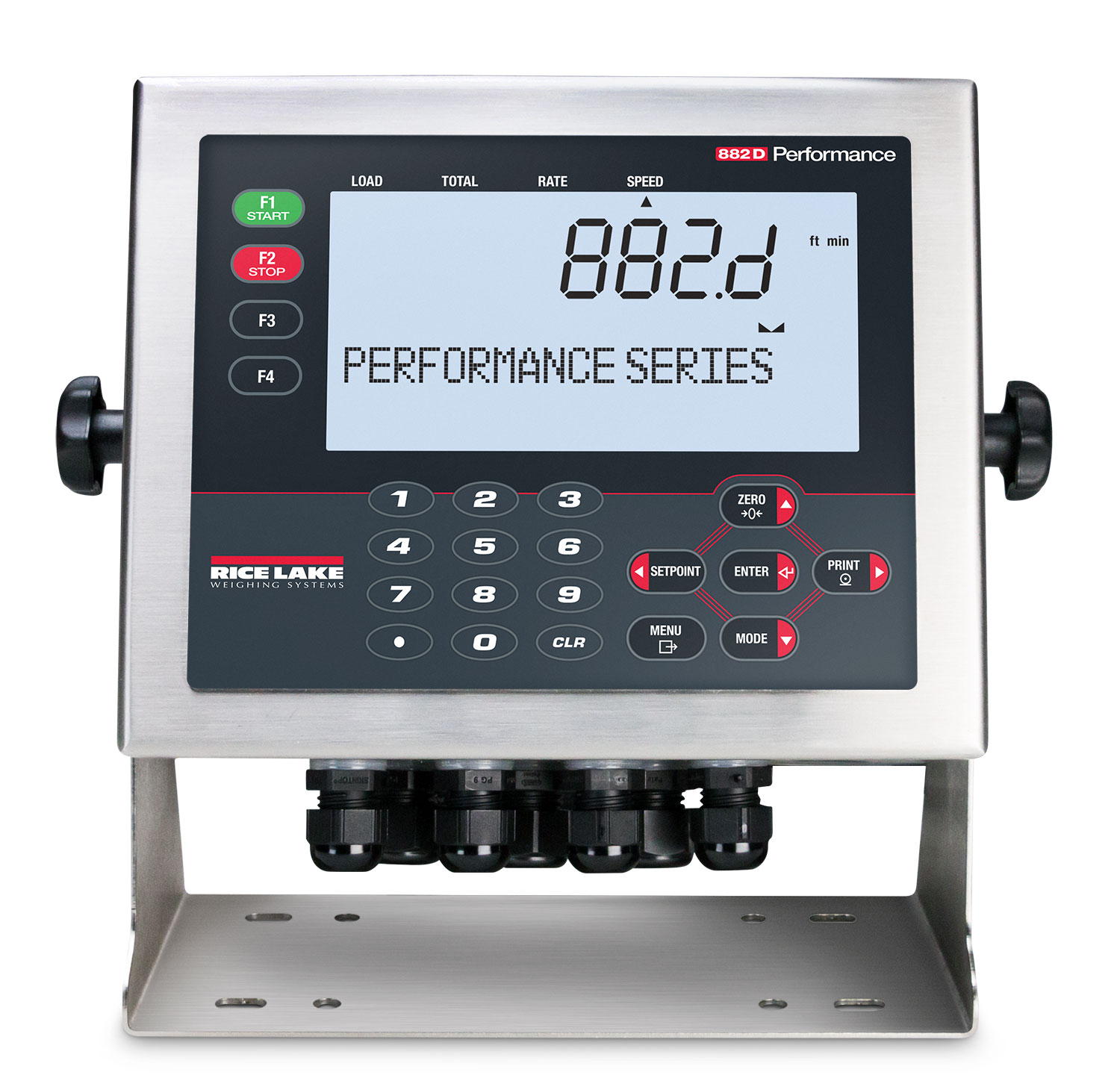

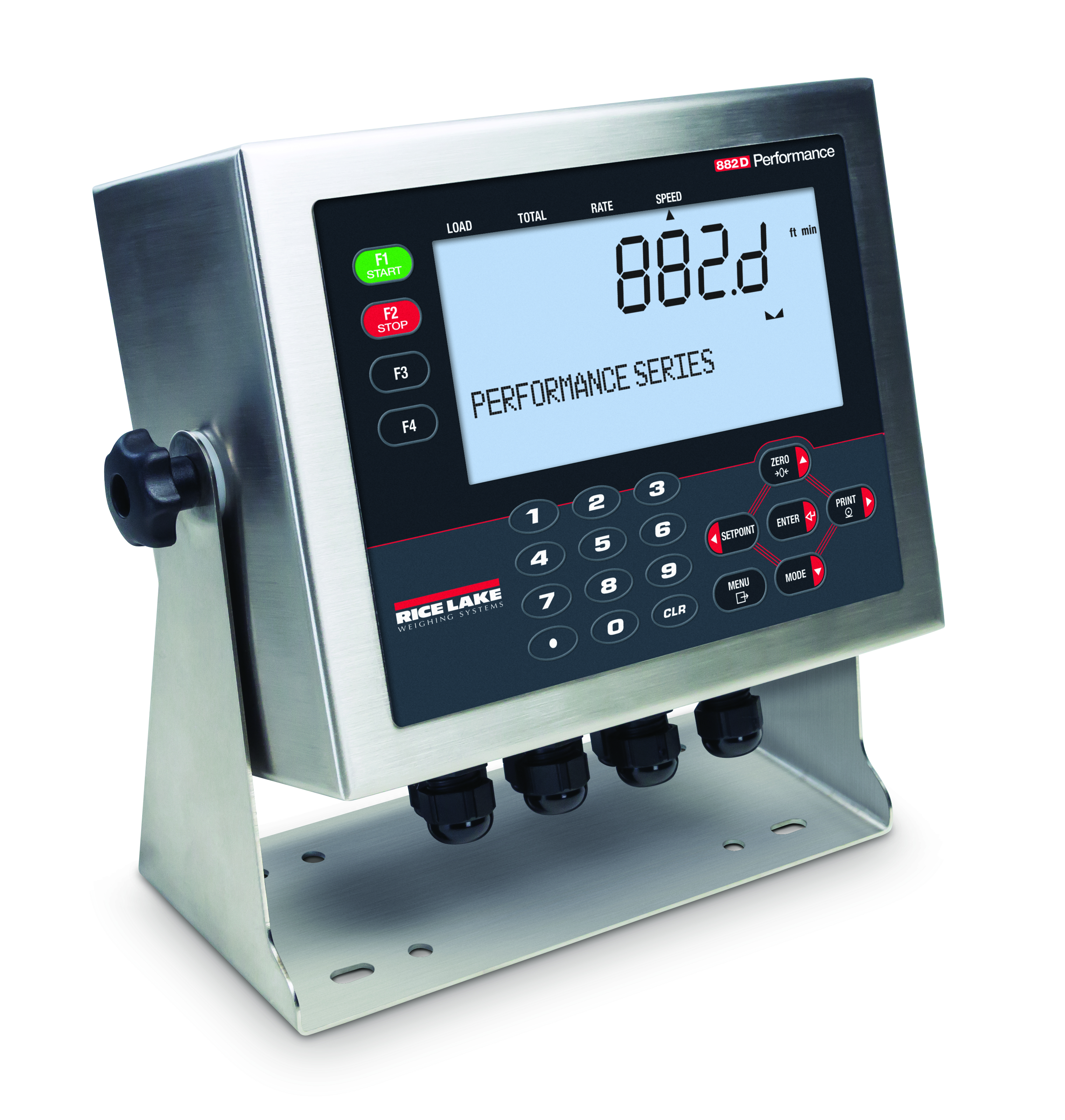

882D Belt Scale Integrator

  • LCD display, 0.8-inch seven-digit, seven-segment weight display, 3 × 20 pixelated prompt area
  • RS-232 or RS-485 serial port
  • USB device port connects directly to a PC
  • Ethernet TCP/IP polled or continuous
  • AC or DC models
  • Hardware slot for two option cards
  • Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
  • Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
  • Setpoints for control and alarms
  • Four onboard digital I/O channels
  • Four programmable ticket formats up to 1,000 characters
  • Filter settings for light, medium and heavy noise
  • Speed inputs

Approvals

Some approval documents are available to view by clicking the icons below.

ULCUS CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

882D Belt Scale Integrator

Belt scales used in demanding industries like mining, bulk material blending, and sand or gravel quarries require instrumentation that can keep up. The tough yet compact 882D belt scale integrator is engineered to provide straightforward, accurate data in a wide range of environments — even hazardous locations. Designed with advanced programming capabilities and an I/O option, the 882D can be customized to manage product dosing and metering.

A backlit display makes for easy viewing of rate, speed and time, even in lighting conditions where a screen would typically be difficult to read. The 882D’s IP66 stainless steel enclosure protects the instrument from severe weather and is well-suited for exposure to harsh environments. Whether you are belt weighing for process control or a truck, barge or rail loadout application, you can rely on the 882D for durable performance in every setting.

Power
Input voltages: 100 to 240 VAC; 9 to 36 VDC
Input frequency: 47 to 63 Hz

Power Consumption:
AC: 15 watts; DC: 20 watts

Excitation Voltage:
10 VDC 8 × 350 ohm (16 × 700 ohm) load cells

Analog Signal Input Range:
-45 mV to 45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz;
1.0 μV/graduation typical at 120 Hz

Sample Rate:
7.5 to 120 Hz, software selectable

Resolution:
Internal: 8 million counts 23 bit weight display: 100,000

System Linearity:
± 0.01% full scale

Digital I/O:
Four I/O onboard primary keys, pseudo functions, batching functions

Circuit Protection:
18 KV, 10 V/meter

Communication Ports:
RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP

Pulse Input:
Dual inputs for redundancy

Display:
LCD display, seven-digit, seven-segment weight display, 3 × 20 pixelated prompt area

Status Annunciators:
Load, total, rate, speed, zero

Keyboard:
Flat membrane panel, tactile feel

Operating Temperature:
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Dimensions:
(W x H x D)
9.87 × 9.38 × 4.33 in

Weight:
12 lb (5.4 kg)

Material:
Stainless steel

Rating:
IP66

Warranty:
Two-year limited

Approvals:
CE Marked
UL/c-UL Listed

Analog Output
16-bit resolution, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA

Relay Board:
Four dry contract relays; DC Max: 30 VDC at 3 amps
AC max: 250 VAC at 3 amps per contact

EtherNet/IP Interface:
According to EN 50325-2

Profinet Interface:
According to IEC 61784 (CPF-3/3)

Modbus/TCP Interface:
Up to 8 bytes of I/O data, 100 Mbps full duplex Ethernet

DeviceNet Interface:
According to EN 50325-2

Profibus DP Interface:
According to EN 50170

EtherCAT:
According to IEEE 802.3

Digital I/O:
24 channel I/O expansion boards available



Dimensions
A 9.93 in (252.2 mm) G 4.00 in (101.6 mm) M 2.50 in (63.5 mm)
B 8.10 in (205.7 mm) H 4.31 in (109.5 mm) N 0.73 in (18.5 mm)
C 6.50 in (165.1 mm) I 4.14 in (105.2 mm) O 0.27 in (6.9 mm)
D 8.94 in (227.1 mm) J 4.32 in (109.7 mm) P 1.93 in (49 mm)
E 0.68 in (17.3 mm) K 6.25 in (158.8 mm) Q 4.50 in (114.3 mm)
F 0.63 in (16 mm) L 1.06 in (26.9 mm)









Resources / Downloads

Title View Email Category Type
Protect Your Belt Scales from Father Winter Email Belt Scales Articles

Title Download Email
882D Belt Scale Integrator Catalog Page Download Email

Title Size Download Email Category
882D DeviceNet Configuration Files 599 B Download Email Bulk Indicators/Controllers
882D Profibus Configuration Files 1.2 KB Download Email Bulk Indicators/Controllers
882D Profinet Configuration Files 2.8 KB Download Email Bulk Indicators/Controllers
882D EtherNet/IP Configuration File 3.7 KB Download Email Bulk Indicators/Controllers
IPConfig-Utility 54.1 KB Download Email Indicators / Controllers

Title Version Revision Download Email Category Archived
882D Belt Scale Integrator Technical Manual 2 E Download Email Indicators / Controllers|Weight Indicators|Belt Scales No
882D Digital I/O Option Card Addendum A Download Email Belt Scales|Indicators / Controllers|Weight Indicators|Indicator Hardware No
882D Relay Option Card Addendum A Download Email Belt Scales|Indicators / Controllers|Weight Indicators|Indicator Hardware No
Interface Option Cards for 882D and 882IS Installation and Programming Manual D Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
Single Analog Output Option Card for 882D and 882IS Addendum B Download Email Indicators / Controllers|Weight Indicators No
iRite® Programmer Reference Manual N Download Email Indicator Software|Indicators / Controllers|Weight Indicators No
880 and 882D Panel Mount Option Addendum A Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware/Options|Belt Scales No
MASTER BulkSlide/882D Configuration and Calibration Manual A Download Email Bulk Construction|Bulk Material Weighing No
Indicadores digitales de pesaje 880 y 882D Opción de alojamiento para panel (Latin Spanish) A Download Email Weight Indicators|Indicators / Controllers|Indicator Hardware/Options|Belt Scales No

Title Download Email
882D Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
882D Belt Scale Integrator Download Email Bulk Indicators/Controllers|Indicators / Controllers
Belt Scale In-Motion Systems Collateral Wizard Request Download Email Belt Scales|Bulk Indicators/Controllers

Title Version Size Release Date Download Email
882D CPU Firmware 2.04.01 344.3 KB 08/04/2022 Download Email
