Product PDF

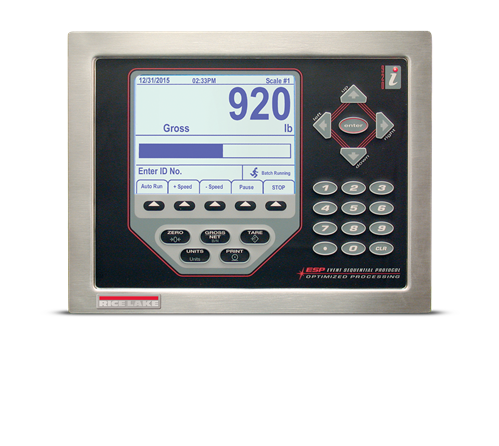

920i® User Programs

  • Pre-programmed software to carry out specific weighing functions
  • Utilize Rice Lake’s iRite™ programming language
  • For use with all Rice Lake 920i models (hardware requirements may apply)
  • Available pre-installed with purchase of new equipment, or via iRev™ for installation on existing 920i models
  • Fully customizable
Request More Information
Portals 0 Products Fac2ca3f8f6148cfb35f8f75f1325bbf Orig

PN 156959:

System consists of a bidirectional single platform truck scale, inbound truck kiosk and outbound truck kiosk. Inbound (if two outbound kiosks are used) and outbound tickets with transaction storage of each weighment.

Suggested Hardware:

  • (2) PN 119687 Inbound/outbound kiosk
  • PN 119689 A/D kiosk option

PN 156886:

This custom application for the 920i supports weighing trucks of grain. Up to 200 grain types, associated divisors and accumulator can be stored. Up to 500 accounts and 1,000 trucks can be stored.

Suggested Hardware:

  • PN 67527 920 single channel A/D
  • PN 67600 1M memory card
  • PN 23113 Epson TM-U295 ticket printer
  • PN 93359 PS2 keyboard

PN 77297:

This program supports truck in/out weighing program for manual truck transactions using Rice Lake Weighing Systems’ 920i digital weight indicator. Stored IDs allow you to keep a database of truck IDs, customer, product, project information and weigh-in weights in the indicator’s memory. Parameters are accessed by simply scrolling through the Supervisor main menu using the down arrow on the 920i. The 920i can automatically store up to 100 truck IDs and tare weights, 950 customers, 1,000 products and 1,000 projects.

Suggested Hardware:

  • PN 67527 920 single channel A/D
  • PN 67600 1 MB memory card
  • PN 23113 Epson TM-U295 ticket printer
  • PN 93359 PS/2 keyboard

PN 153146:

920i custom program will interface to a short axle scale and direct each axle across the scale using traffic lights.

Suggested Hardware:

  • PN 67527 920 single channel A/D
  • PN 23113 Epson TM-U295 ticket printer
  • PN 101923 FRP box with 4 channel relay rack, for traffic light control
  • PN 23146 Traffic light kit
  • PN 15971 AC output relays for above (2 needed)
  • PN 103181 LaserLight remote display (optional)
  • PN 167093 LaserLight2 remote display (optional)

PN SZ99999:

920i program allows trucks to weigh in and out (saves inbound weight after weighing out and has value swapping) and stores the transaction after each weigh out with truck ID, gross, tare and net. Transactions may be printed or cleared at any time through the Setup menu. An HID scanner is available as a peripheral piece of hardware.

Suggested Hardware:

  • PN 119687 outbound kiosk
  • PN 119689 A/D kiosk option
  • PN 119743 HID kiosk option

Resources / Downloads

Title Download Email
920i User Programs Catalog Page Download Email

Title Version Revision Download Email Category Archived
920i Based Truck In/Out System Operator's Manual 1.01 A Download Email Indicators / Controllers|Indicator Software No
920i Dual Kiosk Truck In/Out Operator's Manual 1.01 A Download Email Indicators / Controllers|Indicator Software No
Custom Program, 920i Grain Application Operator Manual A Download Email Indicators / Controllers|Indicator Software No
920i Short Axle Weighing Operation Manual 1.02 A Download Email Indicators / Controllers|Indicator Software No
920i Single Kiosk Truck In/Out Operation Manual B Download Email Indicators / Controllers|Indicator Software No
iRite® Programming Language Programmer Manual O Download Email Indicator Software|Indicators / Controllers|Weight Indicators No

Parts

Part # Description List Price Cart
153146 Software,920i Short Axle With LaserLight Stop Go

List Price: $595.00
77297 LIT,USB Truck In/Out 920i iRite Program, Requires Activation, Dealer Must Contact RLWS For Password (English)

List Price: $520.00
156886 Grain Program User program 920i

Call for price
156959 DUAL KIOSK TRUCK PROGRAM 920i user program,truck in/out single scale.

List Price: $1,050.00
SZ99999 Truck in/out with report

Call for price

Options

Part # Description List Price Cart
119689 Kiosk option, A/D Single Channel 920i, Includes Din Rail, Terminals, Wiring And Drawing.

List Price: $395.00
67527 Indicator,920i Universal ASSY 115VAC Single Channel

List Price: $2,950.00
67600 Ind OPT,Memory Module 1 Meg 920i

List Price: $300.00
23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $685.00
167093 Display,LaserLight2 S/G 4 inch LED with Stop and Go Light, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $2,550.00
119687 ATS Kiosk,920i Outbound Painted MS, Thermal Printer, With Slide Door Access Includes 920i, Dual serial card slot-1 and Memory card slot-2, NO A/D Sunshield with Soft keys visible, 120 VAC With Transflective, Positive Mode display.

List Price: $6,695.00
15971 Relay,Module Output Fused 12-140VAC @ 3A Output - Isolated 5VDC Logic Black OPTO 22 G4OAC5 Normally Open

List Price: $50.00
23146 Signal Kit,Traffic 2 Section, With Mounting Hardware for 4.5 Inch Pole 120VAC LED

List Price: $1,025.00
101923 I/O,Relay Rack Cased 4 Channel OPTO22 Relay Rack, 7 Foot I/O Cable, 6 Cord Grips, Breather Vent. *** RELAYS NOT INCLUDED ***

List Price: $495.00
119743 ATS Option, HID Reader Includes Port 1 Wiring Drawings, Power supply and hardware.

Call for price
77297 LIT,USB Truck In/Out 920i iRite Program, Requires Activation, Dealer Must Contact RLWS For Password (English)

List Price: $520.00
