BenchPro™ BP-SB Ball Top Shipping Digital Scale

  • Simple operation, easy to set up
  • Large six-digit backlight LCD display with 1-inch (29-mm) characters protected by heavy-duty tempered glass
  • Powered USB HID point of sale interface – kg model only
  • Nine-pin RS-232 interface for use with SMA and NCI protocols
  • Four AA alkaline battery operation for portability
  • Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved
  • Compatible with FedEx Ship Manager® and UPS Worldship®

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Ball Top Shroud

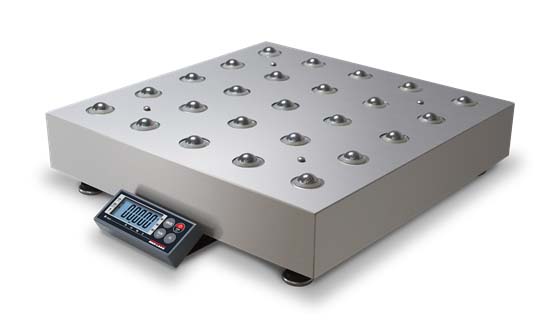

The BenchPro BP-SB is a digital shipping scale with a ball top shroud. With capacities between 150 and 300 pounds, the BenchPro BP-SB makes weighing heavy packages quick and easy.

Dynamic Response:
Response time for stable weight:
0 to 1,000 d, 1,000 ms, maximum mean average
1,000 d +, 1,500 ms, maximum mean average

Internal Resolution:
500,000 internal count minimum

Overload Protection:
Corner & center overload protection

Power:
In-line power supply (included)
Input: 100 to 240 VAC, +10% -15%, 3-wire w/ground
Standard terminated with USA 3-prong plug
Output: 12V at 0.1 Amps DC minimum
Frequency: 50/60 Hz +/-3 Hz, standard
Approvals: UL, CE, EN, CUL

USB HID:
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002

Construction:
Powder coat painted mild steel base plate and load bridge. Carbon steel ball with carbon steel zinc-plated housing. Stainless steel shroud.

Display:
Minimum key press life of 500,000 cycles,
ABS plastic housing
Six annunciators to indicate Zero, Gross/Brutto, Net, W1/W2/W3 multi-range
Four buttons: Units, Tare, On/Off, F1

RS-232 Cable (included):
10 ft DB 9-pin male to female, straight pass through

USB Cable(included):
46-inch (1,168.4-mm) A/B type USB cable

Approvals:
NTEP COC # 17-002
Canada Weights and Measures: AM - 6050
CE Marked

Warranty:
Two-year limited

Dimensions - Inches
  A B C D
12 x 16 12.00 16.00 15.30 4.32
18 x 18 18.00 18.00 21.10 4.86
20 x 20 20.00 20.00 23.10 4.86
24 X 24 24.00 24.00 27.10 4.86

Resources / Downloads

Title View Email Category Type
Measuring Greatness with the Green Bay Packers View Email Dimensioning Application Story
The Diversity of Digital Bench Scale Systems Email Bench Scales Articles

Title Download Email
BenchPro BP-SB Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchPro Shipping BP-S Scales Operation Manual D Download Email Platform Scales|Postal / Shipping Scales No
BenchPro FedEx Ship Manager USB Setup Download Email Platform Scales|Postal / Shipping Scales No

Title Collateral Wizard Request Download Email Category
BenchPro BP-S Series Request Download Email Postal / Shipping Scales

Title Version Size Release Date Download Email
UPS WorldShip BenchPro Update 2 28.4 KB 09/29/2017 Download Email

Title View Download Email Category
BenchPro™ Series Shipping and Postal Digital Scale View Download Email Postal / Shipping Scales
iDimension & BenchPro Setup for UPS WorldShip Software, Part 2 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 3 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 1 View Download Email Dimensioning|Packages and Parcels Dimensioning

Parts

Part # Description List Price Cart
182995 Scale, Bench Pro Series Model BP 1216-75S, 150 x 0.05lb/75 x 0.02kg, Ball Top Weight Platter, 12 x 16 inch Dimensions

List Price: $1,365.00

182380 Scale, Bench Pro Series Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, Ball Top Weight Platter, 18 x 18 inch Dimensions

List Price: $1,835.00

182384 Scale, Bench Pro Series Model BP 1818-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 18 x 18 inch Dimensions

List Price: $1,835.00

182397 Scale, Bench Pro Series Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 20 x 20 inch Dimensions

List Price: $2,035.00

182401 Scale, Bench Pro Series Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, Ball Top Weight Platter, 24 x 24 inch Dimensions

List Price: $2,240.00

182393 Scale, Bench Pro Series Model BP 1818-50S, 100 x 0.02lb/50 x 0.01kg, Ball Top Weight Platter, 18 x 18 inch Dimensions

List Price: $1,835.00

Options

Part # Description List Price Cart
180901 Display,Customer Bench Pro Series, with 68in cable and capacity labels

List Price: $72.00

174784 Remote Display,Bench Pro Series, with 68in cable and capacity labels 53YJ90

List Price: $88.00

183103 Mount,Display Bench Pro Scale 16in Stand

List Price: $215.00

178501 USB Serial Adapter FTDI US232R-100, 3.28 ft, iDIm 100

List Price: $50.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC BP S

BenchPro™ BP-S Shipping Digital Scale

TheBenchPro BP-S Shipping Digital Scale family of digital bench scales is ideal for many diverse industries and markets around the world. As a general purpose scale, the BenchPro can tare containers, zero and change units of measure.
