BenchPro™ BP-SR Roller Top Shipping Digital Scale

  • Simple operation, easy to set up
  • Large six-digit backlight LCD display with 1-inch (29-mm) characters protected by heavy-duty tempered glass
  • Powered USB HID point of sale interface
  • Nine-pin RS-232 interface for use with SMA and NCI protocols
  • Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved
  • Compatible with FedEx Ship Manager® and UPS Worldship®

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Roller Top Shroud

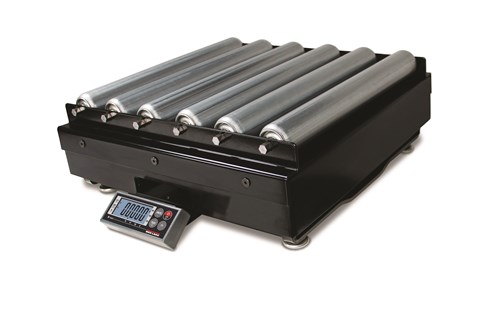

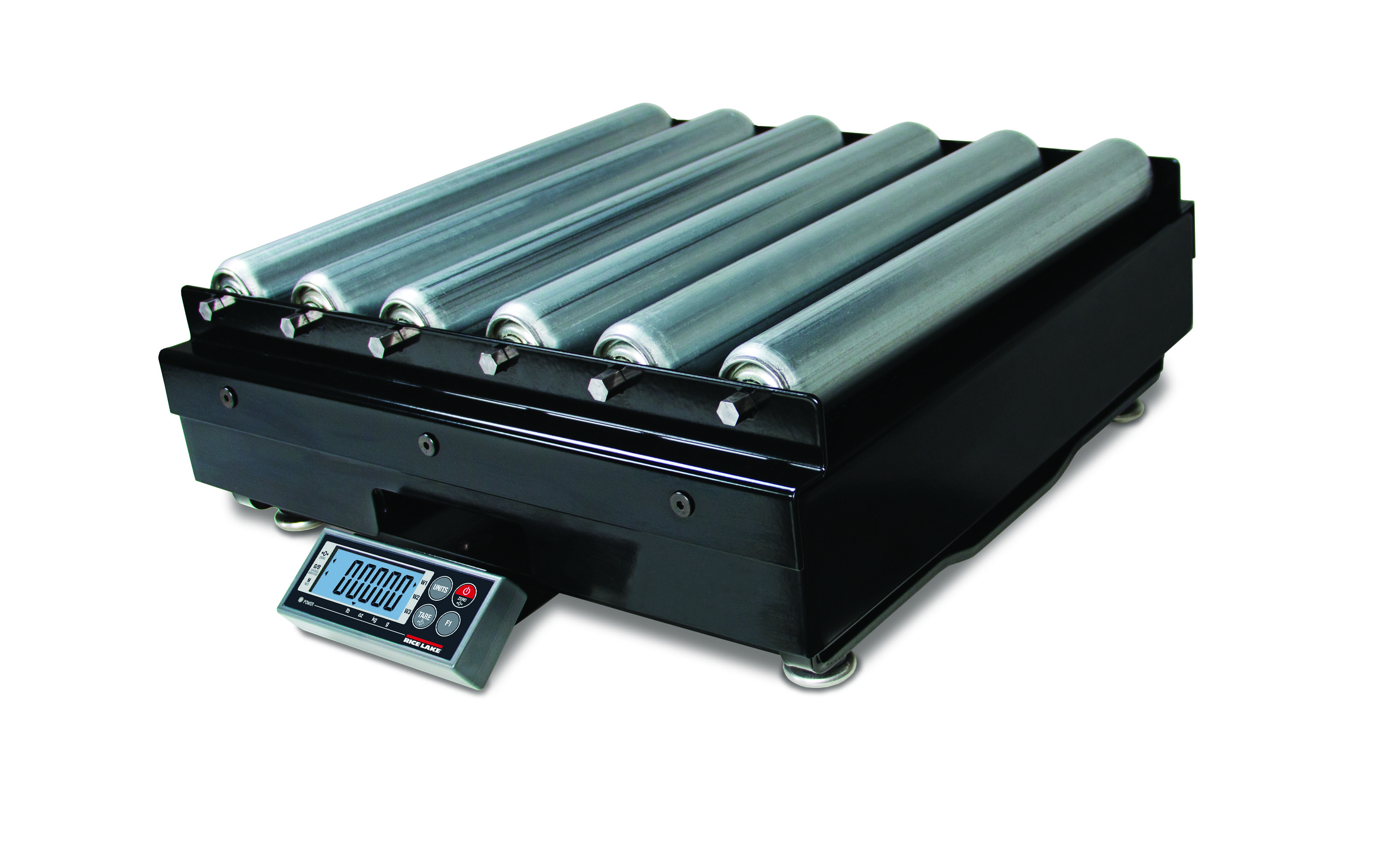

The BenchPro BP-SR is a digital shipping scale with a roller conveyor top. Easily roll packages weighing up to 300 pounds on and off the scale to streamline the weighing process.

Power:
In-line power supply (included)

Input:
100 to 240 VAC, +10% -15%, 3-wire w/ground
Terminated with standard USA 3-prong plug

Output: 12 V at 0.1 Amps DC minimum

Frequency:
50/60 Hz ±3 Hz, standard

Approvals:
UL, CE, EN, CUL

Excitation:
3.0 mV/V

Resolution:
Internal: 500,000 counts

USB HID:
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002

RS-232 Cable (Included):
10 ft DB 9-pin male to female, straight pass-through

USB Cable (Included):
46 in (1,168 mm) A/B type USB cable

Dynamic Response:
Response time for stable weight:
0 to 1,000 d, 1,000 ms, maximum mean average
1,000d +, 1,500 ms, maximum mean average

Overload Protection:
Corner and center overload protection

Annunciators:
Six: zero, gross/brutto, net, W1/W2/W3 multi-range

Display:
Large six-digit backlight LCD display with 1-inch (29 mm) Characters protected by heavy-duty tempered glass

Keys/Buttons:
Four: units, tare, on/off, F1
Minimum key press life of 500,000 cycles

Material:
Display: ABS plastic housing
Scale base: Powder coat painted mild steel base plate and load
bridge with stainless steel roller conveyor

Warranty:
Two-year limited

Approvals:
NTEP 17-002
Canada Weights and Measures: AM-6050
CE Marked

Dimensions
  A B C D
12 × 16 in 12.00 in 16.00 in 15.30 in 5.95 in
18 × 18 in 18.00 in 18.00 in 21.10 in 6.50 in
20 × 20 in 20.00 in  20.00 in 23.10 in 6.50 in
24 × 24 in 24.00 in 24.00 in 27.10 in 6.50 in
Note: 1 in = 25.4 mm

Resources / Downloads

Title View Email Category Type
Measuring Greatness with the Green Bay Packers View Email Dimensioning|Bench Scales Application Story
The Diversity of Digital Bench Scale Systems Email Bench Scales Articles

Title Download Email
BenchPro BP-SR Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchPro Shipping BP-S Scales Operation Manual F Download Email Platform Scales|Postal / Shipping Scales No
BenchPro FedEx Ship Manager USB Setup Download Email Platform Scales|Postal / Shipping Scales No

Title Collateral Wizard Request Download Email Category
BenchPro BP-S Series Request Download Email Postal / Shipping Scales

Title Version Size Release Date Download Email
UPS WorldShip BenchPro Update (2022) 2 28.4 KB 09/29/2017 Download Email

Title View Download Email Category
BenchPro™ Series Shipping and Postal Digital Scale View Download Email Postal / Shipping Scales|Bench Scales
iDimension & BenchPro Setup for UPS WorldShip Software, Part 2 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 3 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 1 View Download Email Dimensioning|Packages and Parcels Dimensioning

Parts

Part # Description List Price Cart / Quote
182996 Scale,Bench Pro Series Model BP 1216-75S, 150 x 0.05lb/75 x 0.02kg, Roller Conveyor Weight Platter, 12 x 16 inch Dimensions

List Price: $1,290.00

182398 Scale,Bench Pro Series Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, Roller Conveyor Weight Platter, 20 x 20 inch Dimensions

List Price: $1,769.00

182402 Scale,Bench Pro Series Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, Roller Conveyor Weight Platter, 24 x 24 inch Dimensions

List Price: $1,939.00

182394 Scale,Bench Pro Series Model BP 1818-50S, 100 x 0.02lb/50 x 0.01kg, Roller Conveyor Weight Platter, 18 x 18 inch Dimensions

List Price: $1,650.00

182381 Scale,Bench Pro Series Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, Roller Conveyor Weight Platter, 18 x 18 inch Dimensions

List Price: $1,650.00

182386 Scale,Bench Pro Series Model BP 1818-150S, 300 x 0.1 lb/150 x 0.05kg, Roller Conveyor Weight Platter, 18 x 18 inch Dimensions

List Price: $1,650.00

Options

Part # Description List Price Cart / Quote
180901 Display,Customer Bench Pro Series, with 68in cable and capacity labels

List Price: $72.00

174784 Remote Display,Bench Pro Series, with 68in cable and capacity labels 53YJ90

List Price: $88.00

183103 Mount,Display Bench Pro Scale 16in Stand

List Price: $215.00

178501 Adapter,USB Serial FTDI US232R-100, 3.28 ft, iDim Series for use with RLWS indicator and Postal Scales

List Price: $60.00
