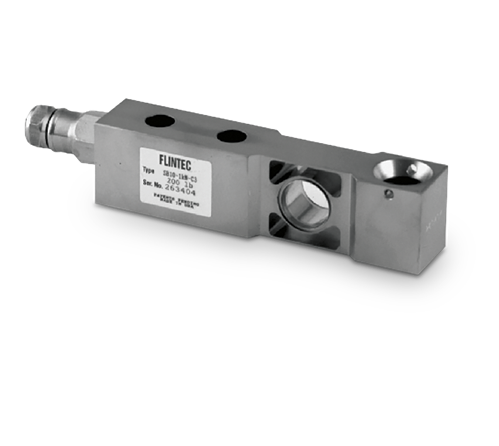

Flintec SB10 Stainless Steel, Single-Ended Beam Load Cell

The SB10 load cell is used in the 2.3 kN Paramounts® assemblies. This stainless steel, hermetically sealed load cell provides full IP68 sealing protection for the harshest environments. Ideal for use in multiple-cell floor scale, tank and hopper applications. The unique millivolt/volt/ohm factory calibration assures matched outputs for easy field replacement and calibrations. The capacity of this model is 2.5 kN. Each unit is supplied with 10 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Nonlinearity:
0 to -0.03% full scale

Hysteresis:
0 to +0.05% full scale

Insulation Resistance:
10,000 megohms

Deflection at Capacity:
0.008 in

Cable Length:
10 ft

Cable Diameter:
0.196 in polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
OIML

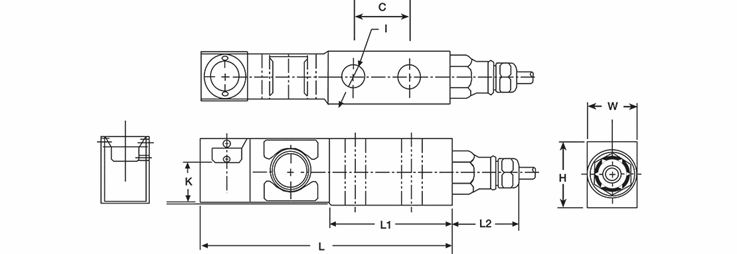

Rated Capacity L L1 L2 H W I K C
kN/in
2.3 6.10 2.98 1.60 1.58 0.59 0.54 0.99 1.39





Resources / Downloads

Title Download Email
Flintec SB10 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
38215 Load Cell,SEB SB10-2.3KN- C3 2.3KN (520lb) 10ft Flintec 2mV/V 1,000 OHM EW SST HS IP68 OIML C3

List Price: $1,075.00

Options

Part # Description List Price Cart
17703 Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST

List Price: $50.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
