Product PDF

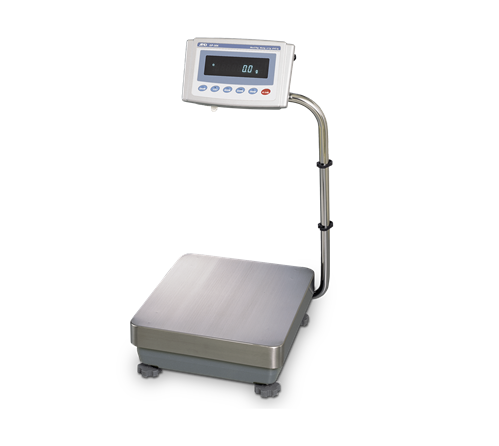

GP Series, A&D Weighing High Capacity Balance

  • IP65/NEMA Type 4
  • Internal calibration weight with manual, interval or auto-environmental compensation
  • RS-232 interface for connecting to printer or PC
  • Data-collection software
  • Auto re-zero function
  • Time and date
  • Bright blue fluorescent display

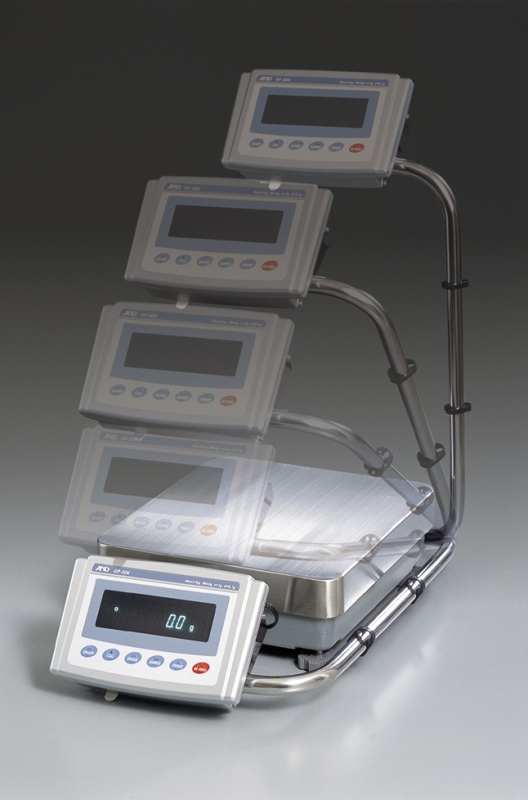

  • Adjustable swing arm display
  • Die-cast aluminum body with stainless weighing pan
  • Detached digital weight indicator (KS models only)
Request More Information
GP

Weighing Units:
Carat, Pennyweight, Troy Ounce, Grain, Decimal Ounce, Decimal Pound, Pound/Ounce

Operating Modes:
Counting, Percentage

Power:
Approx. 30 VA (supplied to the AC adapter)

Stabilization Time:
Approx. 1.5 seconds (typical in FAST mode)

Sensitivity Drift (-10 °C to 30 °C):
GP-12K, GP-20K, GP-30K, GP-30KS: ±3 ppm/ °C
GP-32K, GP-32KS, GP-40K: ±5 ppm/ °C
GP-60K, GP-60KS, GP-61K, GP-61KS, GP-100K,
GP-100KS: ±6 ppm/ °C
GP102K: ±10 ppm/ °C

Height with Column:
652 mm

Calibration Weight:
GP-12K: 5 kg/10 kg
GP-20K: 10 kg/20 kg
GP-30K, GP-30KS, GP-32KS: 20 kg/30 kg
GP-40K: 20/30/40 kg
GP-60K, GP-60KS: 30/40/50/60 kg
GP-61K, GP-61KS: 20/30/40/50/60 kg
GP-100K, GP-100KS, GP-102K: 60/80/100 kg



Operating Temperature:
41 °F to 104 °F (5 °C to 40 °C)
RH less than 85% (no condensation)

Est. Weight:
Approx. 39.7 lb (18 kg)

Warranty:
Five-year limited

Return Policy:
A&D Weighing standard policy -
restock fee may apply

Model Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

GP-12K

12 kg

0.1 g

0.1 g

±0.2 g


15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97802

GP-20K

21 kg

0.1 g

0.1 g

±0.2 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97803

GP-30K

31 kg

0.1 g

0.1 g

±0.2 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97805

GP-30KS

31 kg

0.1 g

-

-

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97810

GP-32K

31 kg / 6 kg

1 / 0.1 g

0.5 g / 0.1 g

±1 / ±2 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97804

GP-32KS

31 kg / 6 kg

1 / 0.1 g

-

-

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

102901

GP-40K

41 kg

0.5 g

0.5 g

±1 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97806
GP-60K

61 kg

1 g

0.7 g

±1 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97807
GP-60KS

61 kg

1 g

-

-

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

102902
GP-61K

61 kg

0.1 g

0.2 g

±0.5 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

102900
GP-61KS

61 kg

0.1 g

-

-

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

102903
GP-100K

100 kg

1 g

1 g

±2 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97808
GP-100KS

101 kg

1 g

-

-

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97811
GP-102K

101 kg / 61 kg

10 / 1 g

5 / 1 g

±10 / ±2 g

15 × 13 in
(384 × 344 mm)

14.6 × 24.2 × 5.1 in
(372 × 615 × 130 mm)

97809



Resources / Downloads

Title Download Email
High-Capacity GP Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
A&D Weighing GP Series Instruction Manual Download Email Precision Industrial|Precision Balances No
A&D Weighing GP Series Options Instruction Manual Download Email Precision Balances|Precision Industrial No

Title Collateral Wizard Request Download Email Category
A&D Weighing GP Series Download Email Balances|Precision Balances

Parts

Part # Description List Price Cart
97802 Balance,A&D GP-12K Industrial, 12kg x 0.1g, 120V adapter

List Price: $4,025.00
97803 Balance,A&D GP-20K Industrial, 21kg x 0.1g, 120V adapter

List Price: $4,425.00
97804 Balance,A&D GP-32K Industrial, 6kg/31kg x 0.1g/1g (Smart Range), 120V adapter

List Price: $3,675.00
97805 Balance,A&D GP-30K Industrial, 31kg x 0.1g, 120V adapter

List Price: $5,250.00
97810 Balance,A&D GP-30KS Industrial, 31kg x 0.1g (Remote Indicator, No Column), 120V adapter

List Price: $5,625.00
102901 Balance,A&D GP-32KS Industrial, 6/31kg x 0.1/1g (Smart Range Remote Indicator), 120V adapter

List Price: $4,075.00
97806 Balance,A&D GP-40K Industrial, 41kg x 0.5g, 120V adapter

List Price: $4,875.00
97807 Balance,A&D GP-60K Industrial, 61kg x 1g, 120V adapter

List Price: $6,000.00
102902 Balance,A&D GP-60KS Industrial, 61kg x 1g (Remote Indicator), 120V adapter

List Price: $6,275.00
102900 Balance,A&D GP-61K Industrial, 61kg x 0.1g, 120V adapter

List Price: $6,875.00
102903 Balance,A&D GP-61KS Industrial, 61kg x 0.1g (Remote Indicator), 120V adapter

List Price: $6,700.00
97808 Balance,A&D GP-100K Industrial, 100kg x 1g, 120V adapter

List Price: $6,325.00
97811 Balance,A&D GP-100KS Industrial, 101kg x 1g (Remote Indicator, No Column), 120V adapter

List Price: $6,800.00
97809 Balance,A&D GP-102K Industrial, 61kg/101kg x 1g/10g (Smart Range), 120V adapter

List Price: $5,750.00

Options

Part # Description List Price Cart
97607 Balance OPT,Battery Pack Rechargeable A&D AD-1682

List Price: $815.00
97608 Balance OPT,Universal Remote Display A&D AD-8920

List Price: $325.00
97813 Balance,Accessory, A&D GP-04 Comparator Output With Buzzer

List Price: $335.00
97814 Balance,Accessory, A&D GP-06, Analog Output (Replaces Standard RS-232C)

List Price: $995.00
97815 Balance,Accessory, A&D GP-07, GP Extension Cable (Factory Installed - 120 Day Lead Time)

List Price: $370.00
97816 Balance,Accessory, A&D GP-20, Underhook GP-12Kg through and including GP-40Kg

List Price: $225.00
97817 Balance,Accessory, A&D GP-21, Underhook GP-60Kg through GP-102Kg

List Price: $225.00
97605 Balance OPT,Anti Theft Device A&D AD-100-2

List Price: $90.00
97820 Balance,Accessory, A&D 07:3004753 Protective In-Use Cover

List Price: $31.50
97613 Balance OPT,AC Adapter TB:636, 120V 15 VDC 1000mA Negative A&D FC, FC-i, FC-Si, GP, HF, SV-10/100, SV-A, FR, FP, HA, HX Models

List Price: $47.50
97614 Balance OPT,AC Adapter TB:137 A&D 220V 15 VDC 700mA Negative HR-i, FP, HA, HX, GP, FR, SV10/100, SV-A, GH, FC, FC-i, FC-Si Models

List Price: $69.00
97609 Balance OPT,Remote Controller A&D AD-8922

List Price: $765.00
102904 Option,Balance, A&D GP-12 Animal Weighing Pan For GP Series Devices

List Price: $1,970.00
151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage

List Price: $370.00
97612 Foot Switch,SW:128 A&D

List Price: $100.00
196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

List Price: $1,030.00

Related Products

GX K

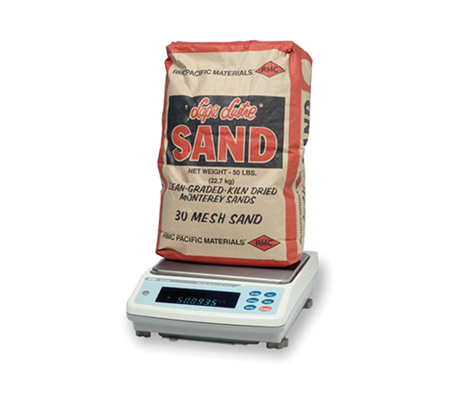

A&D Weighing GX-K Series
