Ishida Uni-5 Series

  • Large color touchscreen (7 in)
  • Dual-range weighing (0-15lb x 0.005lb/15-30lb x 0.01lb)
  • Ethernet communications
  • Up to 99 pages of preset keys
  • Adjustable touchscreen viewing angle
  • 77 tactile keys
  • 4 MB memory
  • Grayscale LCD customer-side display
  • Self-serve mode/operation
  • 30+ selectable fixed bar code formats
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
  • Compatible with third-party communication software, including Invatron’s PLUM and ADC’s InterScale

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

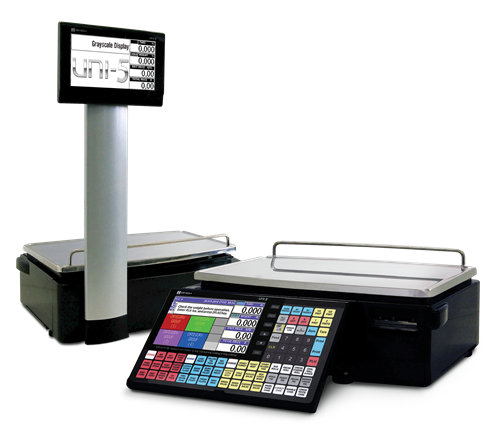

The Ishida Uni-5 Series: Built Just for You

Value By Design

Ishida’s Uni-5 Series of price-computing scales and printers are positioned to be one of the best values in retail weighing today. Retail customers may choose from three distinct printer and scale-base configurations— all with the same easy-to-use universal control panel.

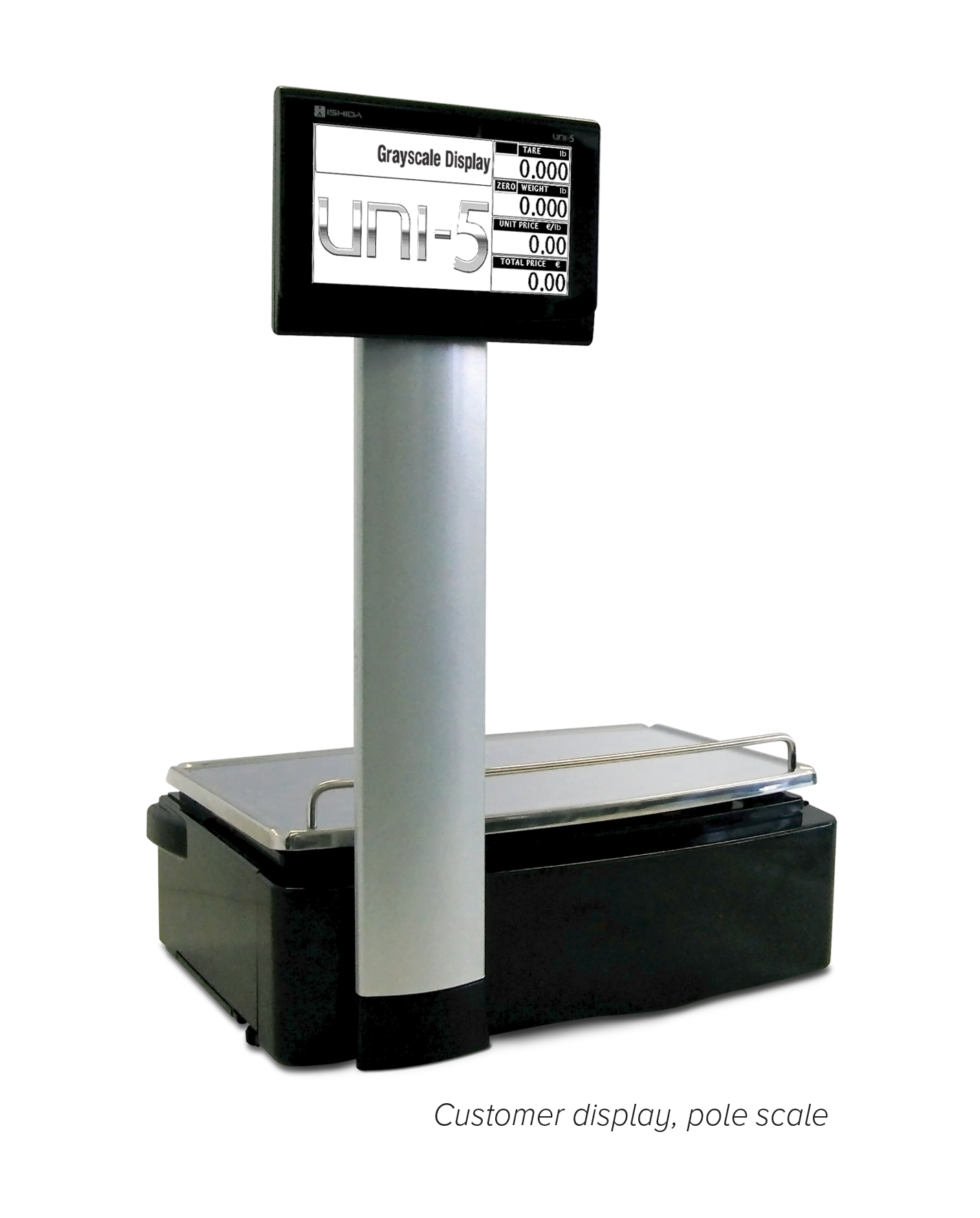

Whether selecting the straightforward bench model, bench with pole, or elevated head style, Uni-5 users can appreciate a large, full-color touchscreen, while customers view advertised specials and details of their purchase on an ultra-bright customer-side LCD.

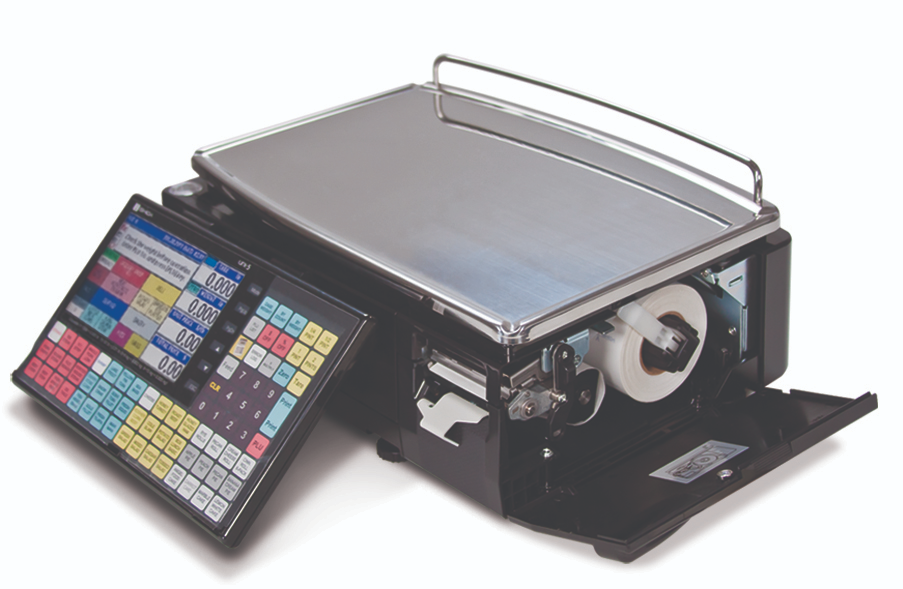

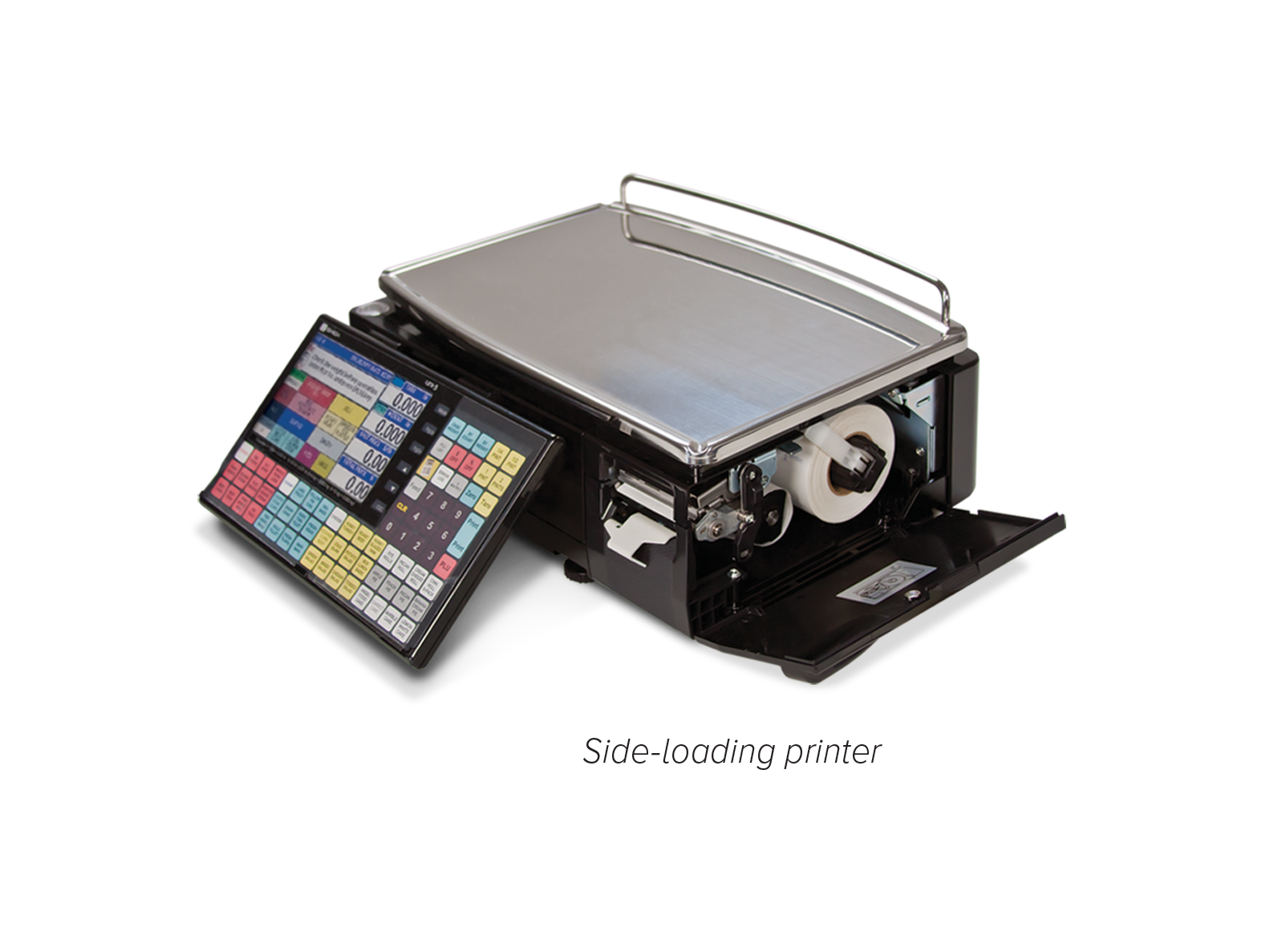

The Uni-5 is more than just attractively priced. It’s also attractive in design, with a polished, black polymer housing that’s easy to clean, and a convenient sideloading printer for quick label changing. A low-profile design and green energy consumption round out a long list of essential features for today’s progressive retail marketplace

Capacity (Dual Range):
0-15 x 0.005 lb, 15-30 x 0.01 lb (dual range) 60 x 0.02 lb option (single range)
Display:
Operator: Color LCD, 7 in
Customer: Grayscale LCD, 7 in
Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits
Preset Keys:
1980: 20 x 99 pages
Memory Capacity:
4 MB

Communications:
Static TCP/IP 10/100 Base T Ethernet
Wireless WEP/WPA/WPA2
Interface:
USB port, back-up and restore only
Platter:
15.7 x 10.8 in (398 x 275 mm)
Print Head:
Direct thermal 2.2 in head (56 mm)
Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)
Label Size:
Width: 1.5-2.5 in (38-64 mm)
Length: 1.5-7.9 in (38-200 mm)
Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max
Label Backing Paper:
Width: Up to 2.6 in (66 mm)
Power Supply:
AC100-240 V, 50/60 Hz
Power Consumption:
Stand-by: 50 W
In operation: 120 W
Classification:
NTEP CC 07-099
UL listed
Warranty:
One-year limited warranty

Dimensions
A 16.41 in (417 mm) F 6.18 in (157 mm) L 23.00 in (584 mm)
B 18.26 in (464 mm) G 6.81 in (173 mm) M 5.11 in (130 mm)
C 11.65 in (296 mm) H 10.82 in (275 mm) N 13.03 in (331 mm)
D 15.66 in (398 mm) I 11.73 in (298 mm) O 18.42 in (468 mm)
E 5.27 in (134 mm) K 7.48 in (190 mm) P 21.96 in (558 mm)



Resources / Downloads

Title View Email Category Type
Wrapping Up Quality View Email Articles

Title Download Email
Ishida Uni-5 Countertop Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-5/7 Operator Keysheet: June 2021 Download Email Retail Equipment No
Ishida Uni-5 User Manual, V1.02 V1.02 Download Email Retail Equipment No

Title Download Email
Uni-5 Bench Replacements Parts Page Download Email
Uni-5 Bench, Printer Replacements Parts Page Download Email
Uni-5 Pole Replacements Parts Page Download Email
Uni-5 Pole, Printer Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-5 Series Collateral Wizard Request Download Email Retail Equipment|Price Computing Scales
New FDA Nutrition Label Requirements Download Email Retail Labelers|Retail Equipment
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment
Dual-Range Weighing View Download Email Price Computing Scales|Retail Equipment
Uni-7 Keyboard Programming View Email Retail Equipment|Price Computing Scales

Parts

Uni-5 Pole and Bench

Part # Description List Price Cart
119356 Retail Scale, Uni-5 Bench 15x0.005lb/30x0.01lb RF kit, 115VAC Ishida

List Price: $2,835.00

155264 Retail Scale, Uni-5 Bench 60 x 0.02lb, RF, 115VAC, Ishida

List Price: $3,461.00

155265 Retail Scale, Uni-5 Pole 60 x 0.02lb, RF, 115VAC, Ishida

List Price: $3,579.00

154737 Retail Scale, Uni-5 Bench 60 x 0.02lb non-RF, 115VAC Ishida

List Price: $3,198.00

119359 Retail Scale Uni-5, Bench TCP/IP non RF, 15x0.005lb/30x0.01lb, Ishida

List Price: $2,585.00

119360 Retail Scale, Uni-5, Pole TCP/IP non RF, 15x0.005lb/30x0.01lb, Ishida

List Price: $2,695.00

119357 Retail Scale, Uni-5 Pole 15x0.005lb/30x0.01 RF Kit, 115VAC Ishida

List Price: $2,935.00

Options

Uni-5 Options

Part # Description List Price Cart
46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida

List Price: $95.00

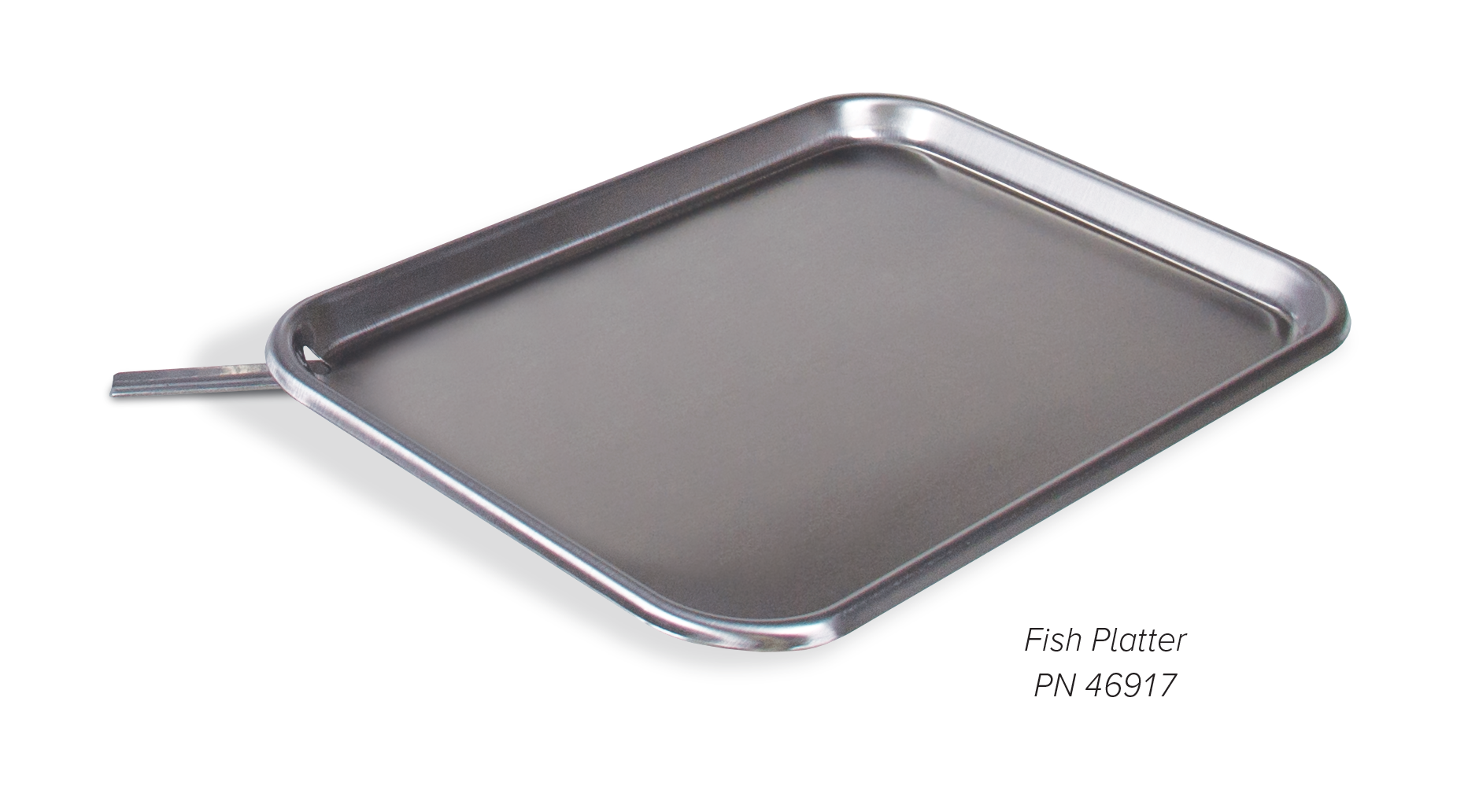

46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida

List Price: $95.00

78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT

List Price: $40.00

167774 Cover,In Use Operator Controller Uni-5 Uni-7 Ishida

List Price: $5.00

Communication

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
