Ishida Uni-7 Hanging Scale

  • Large color touchscreen (7 in)
  • Adjustable touchscreen viewing angle
  • Color graphics on customer-side display
  • Dual-range weighing (0-15 lb x 0.005 lb/15-30 lb x 0.01 lb)
  • Front-load label cassette
  • Supports multiple label formats
  • Ethernet communications
  • Internal wireless communications, 802.11 b/g
  • Up to 99 pages of preset keys
  • 77 tactile keys
  • 4 MB standard memory expandable to 2 GB
  • Self-serve mode/operation
  • 30+ selectable fixed bar code formats
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
  • Compatible with third-party communication software, including Invatron’s PLUM and ADC’s InterScale

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

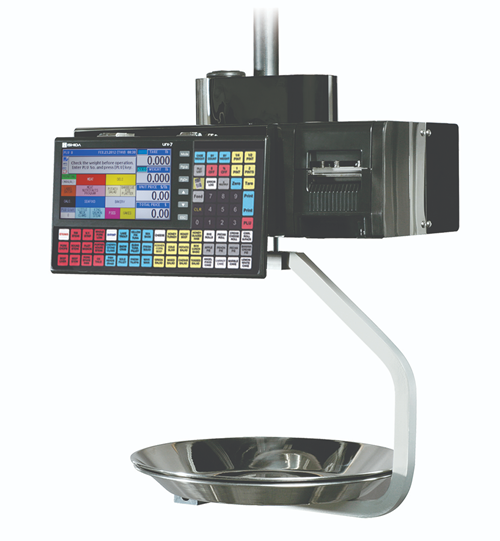

Hanging Scale with Colored Touchscreen

Ishida's Uni-7 hanging scale is the only hanging scale on the market with a full-color touchscreen. This space-saving, suspended design cradles product in its bowl-shaped pan. Keypad and display remain at eye level, away from busy work areas or moisture.

Capacity (Dual Range):
0-15 x 0.005 lb, 15-30 x 0.01 lb
Display:
Operator: Color LCD, 7 in
Customer: Color LCD, 7 in
Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits
Preset Keys:
1980: 20 x 99 pages
Memory Capacity:
4 MB expandable to 2 GB
Communications:
Static TCP/IP 10/100 Base T Ethernet
Wireless WEP/WPA/WPA2
Interface:
USB port
Platter:
14.1 in (360 mm)
Print Head:
Direct thermal 2.2 in head (56 mm)
Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)
Label Size:
Width: 1.2-2.5 in (30-64 mm)
Length: 0.8-7.9 in (20-200 mm)
Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max
Power Consumption:
Stand-by: 50 W
In operation: 120 W
Label Backing Paper:
Width: Up to 2.6 in (66 mm)
Power Supply:
AC100-240 V, 50/60 Hz
Classification:
NTEP CC 07-099
UL listed
Warranty:
One-year limited warranty

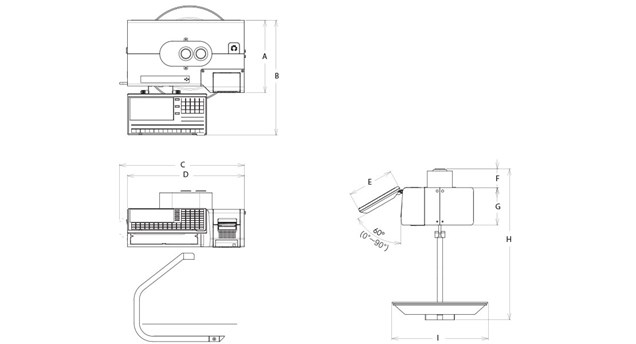

Universal (1280-2) Dimensions
A 10.66 in (271 mm) F 2.75 in (70 mm)
B 16.92 in (430 mm) G 5.51 in (140 mm)
C 18.38 in (467 mm) H 22.20 in (564 mm)
D 17.20 in (437 mm) i 14.17 in (360 mm)
E 6.81 in (173 mm)
  Mounting specifications   Pipe: 1.10 in outside diameter



Resources / Downloads

Title View Email Category Type
How Dual-Range Weighing Equals Profitability Email Retail Equipment Articles

Title Version Revision Download Email Category Archived
Ishida Uni-5/7 Operator Keysheet: June 2021 Download Email Retail Equipment No
Ishida Uni-7 User Manual V1.02 Download Email Retail Equipment No

Title Download Email
Uni-7H Scale Replacements Parts Page Download Email
Uni-7H Scale, Printer Replacements Parts Page Download Email
Uni-7H Scale, Label Cassette Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-7 Series Collateral Wizard Request Download Email Retail Equipment|Price Computing Scales
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment

Parts

Ishida Uni-7 Hanging Scale Parts

Part # Description List Price Cart
109371 Retail Scale,Uni-7 Hanging 15 x 0.005lb / 30 x 0.01lb, RF Kit, 115VAC Ishida 115VAC Ishida

List Price: $5,183.00

Options

Ishida Uni-7 Hanging Scale Options

Part # Description List Price Cart
110996 Retail Scale OPT,Label Cassette UNI-7, Replacement or Additional w/Special Front Plate For UNI-7H units, Order Black Cassette PN 190565 Ishida

List Price: $215.00

119030 USB Flash Drive-1GB Branded RLWS and Ishida, Uni-7 black

List Price: $12.00

167774 Cover,In Use Operator Controller Uni-5 Uni-7 Ishida

List Price: $5.00

91870 Option,Compact Flash Card 32mb Ishida CF

List Price: $85.00

105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida

List Price: $81.00
