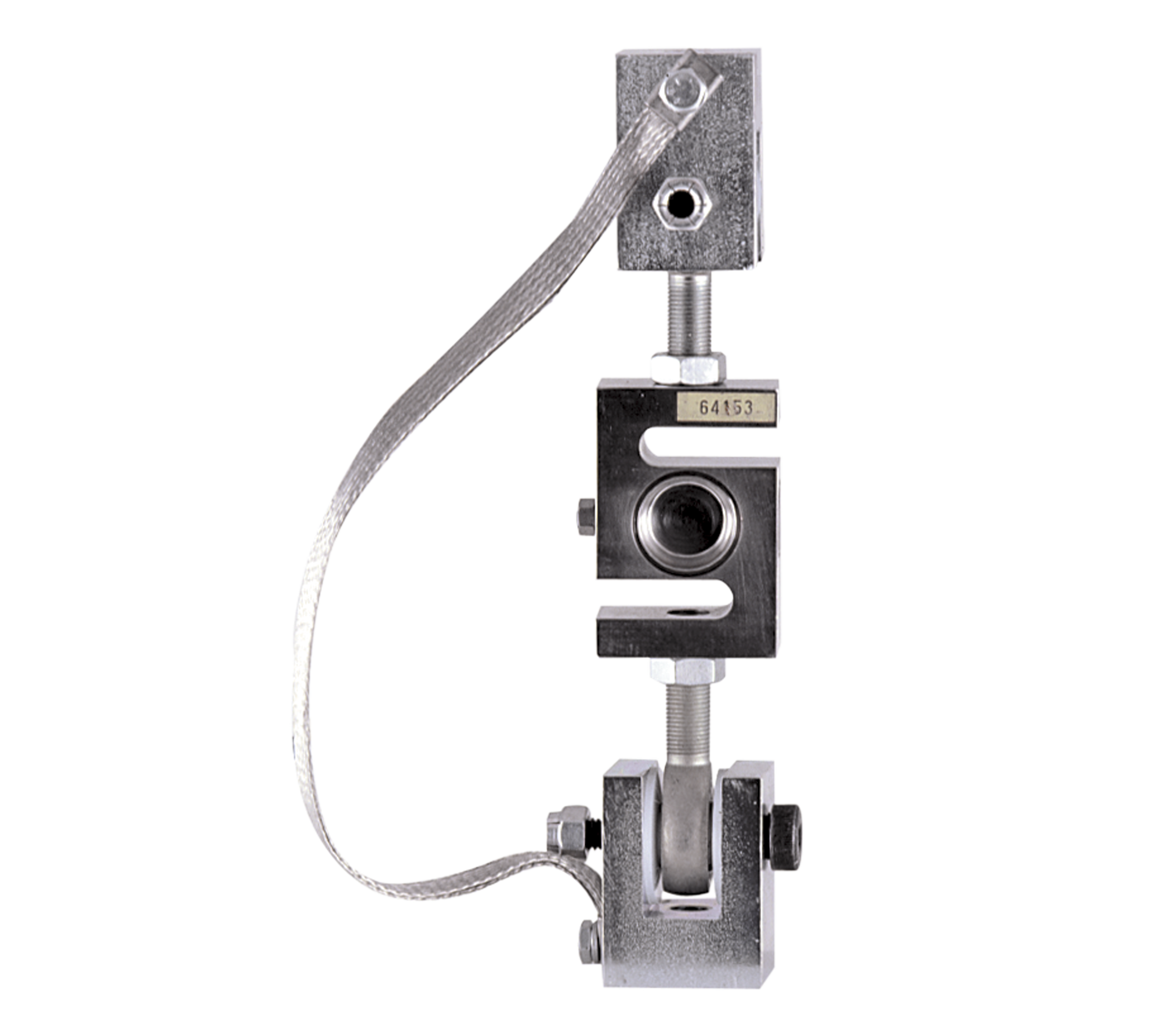

ITCM HE Isolated Tension Cell Module

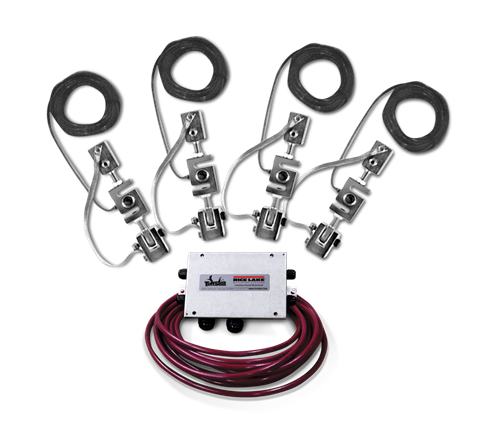

Complete Kit Includes

  • Three or four ITCM assemblies with RL20001HE stainless steel, welded seal
  • NTEP Certified s-beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 500-5,000 lb
  • Clevis mounts with nylon insulating washers
  • PTFE-lined rod-end ball joints
  • Load cell is completely isolated from stray currents
  • Grounding strap provides alternative path to ground
  • Complete package for ease of installation
  • Provides correct loading even in difficult installations
  • Lower overall height compared to other isolated tension assemblies

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

A Tension Load Cell Module for Hostile Environments

The ITCM Series utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications and mechanical scale conversions. The ITCM HE incorporates clevis and unique rod-end ball joint assemblies to reduce the overall length to less than half of the traditional tension cell mounts, while providing correct load alignment. In addition, the load cell is completely electrically isolated from stray currents, which are a major cause of load cell failure. To complete the design, a grounding strap connects the two clevis assemblies to further provide safety to your load cells.

Applications:

Load Cell
Capacity

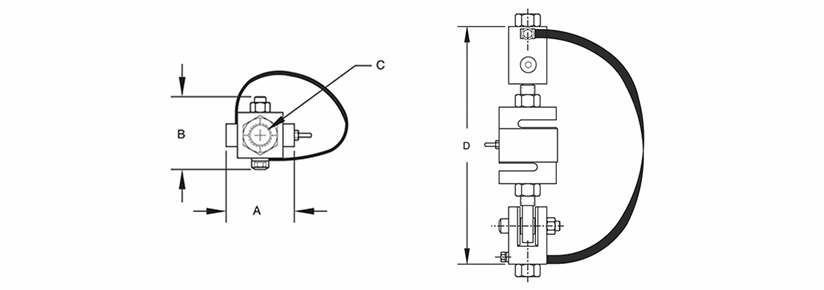

A B C D Single Module 3-Module Kit 4-Module Kit
lb/in Part # Part # Part #
500 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46599 46561 46580
500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46600 46562 46581
500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46601 46563 46582
750 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46602 46564 46583
750 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46603 46565 46584
750 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46604 46566 46585
1000 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46605 46567 46586
1000 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46606 46568 46587
1000 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46607 46569 46588
1500 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46608 46570 46589
1500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46609 46571 46590
1500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46610 46572 46591
2000 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46611 46573 46592
2000 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46612 46574 46593
2000 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46613 46575 46594
2500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46614 46576 46595
2500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46615 46577 46596
3000 lb 3.37 3.37 3/4-10 NC 10.00 (ref) 46616 46578 46597
5000 lb 3.37 3.37 3/4-10 NC 12.62 (ref) 46617 46579 46598
* Load Rating is per module

Resources / Downloads

Title Download Email
ITCM HE Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
ITCM Series Installation Guide Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
ITCM HE Isolated Tension Cell Mount Assembly IP-67 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
ITCM Assembly Light to Medium Capacity Mount Assembly Collateral Wizard Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single-Module Kit

Part # Description List Price Cart
46599 Mount ASSY,ITCMHE 500lb 1/2-13NC SST Includes RL20001HE

List Price: $1,510.00

46600 Mount ASSY,ITCMHE 500lb 5/8-11NC SST Includes RL20001HE

List Price: $1,510.00

46601 Mount ASSY,ITCMHE 500lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46602 Mount ASSY,ITCMHE 750lb 1/2-13NC SST Includes RL20001HE

List Price: $1,510.00

46603 Mount ASSY,ITCMHE 750lb 5/8-11NC SST Includes RL20001HE

List Price: $1,510.00

46604 Mount ASSY,ITCMHE 750lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46605 Mount ASSY,ITCMHE 1000lb 1/2-13NC SST Includes RL20001HE

List Price: $1,510.00

46606 Mount ASSY,ITCMHE 1000lb 5/8-11NC SST Includes RL20001HE

List Price: $1,510.00

46607 Mount ASSY,ITCMHE 1000lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46608 Mount ASSY,ITCMHE 1500lb 1/2-13NC SST Includes RL20001HE

List Price: $1,510.00

46609 Mount ASSY,ITCMHE 1500lb 5/8-11NC SST Includes RL20001HE

List Price: $1,510.00

46610 Mount ASSY,ITCMHE 1500lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46611 Mount ASSY,ITCMHE 2000lb 1/2-13NC SST Includes RL20001HE

List Price: $1,510.00

46612 Mount ASSY,ITCMHE 2000lb 5/8-11NC SST Includes RL20001HE

List Price: $1,510.00

46613 Mount ASSY,ITCMHE 2000lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46614 Mount ASSY,ITCMHE 2500lb 5/8-11NC SST Includes RL20001HE

List Price: $1,510.00

46615 Mount ASSY,ITCMHE 2500lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46616 Mount ASSY,ITCMHE 3000lb 3/4-10NC SST Includes RL20001HE

List Price: $1,510.00

46617 Mount ASSY,ITCMHE 5000lb 3/4-10NF SST Includes RL20001HE

List Price: $2,240.00

3-Module Kit

4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

RL20001HE

Rice Lake RL20001HE Stainless Steel, S-Beam Load Cell

The Rice Lake RL20001HE is a full stainless, welded seal S-beam load cell available in capacities ranging from 500 to 10,000 lb.
