ITCM Isolated Tension Cell Module

Complete Kit Includes

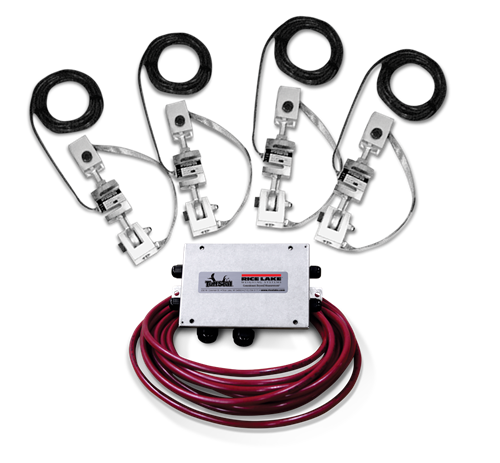

  • Three or four ITCM assemblies with RL20000I NTEP Certified S-beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 100 to 20,000 lb
  • Clevis mounts with nylon insulating washers
  • 20,000 lb ITCM rod-end ball joints
  • Load cell is completely isolated from stray currents
  • Grounding strap provides alternative path to ground
  • Complete package for ease of installation
  • Provides correct loading even in difficult installations
  • Lower overall height compared to other isolated tension assemblies
  • Zinc-plated clevis assemblies
  • 20,000 lb capacity is not electrically isolated

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Tension Load Cell Module

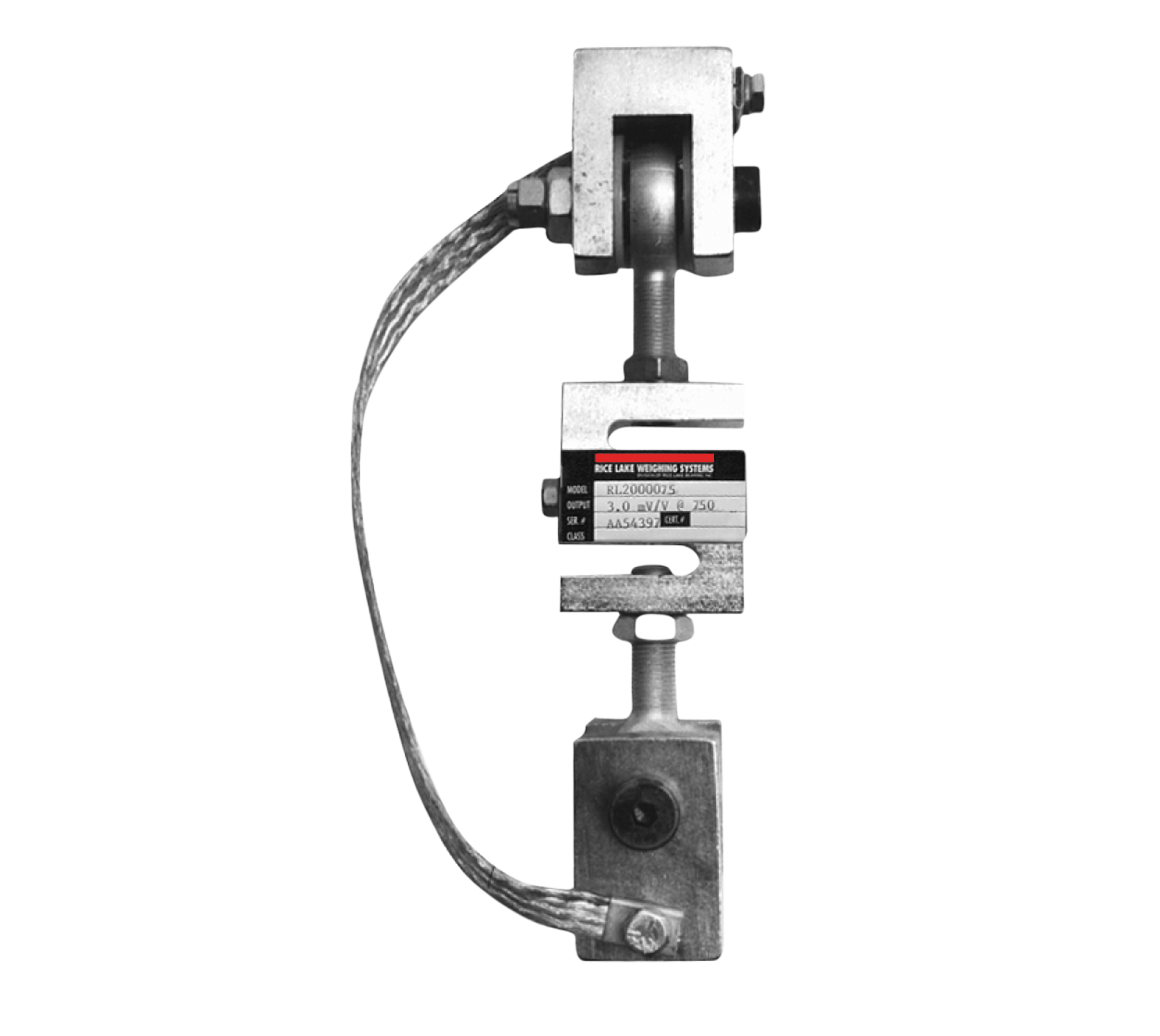

The ITCM Series utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications and mechanical scale conversions. The ITCM incorporates clevis and unique rod-end ball joint assemblies to reduce the overall length to less than half of the traditional tension cell mounts, while providing correct load alignment. In addition, the load cell is completely electrically isolated from stray currents, which are a major cause of load cell failure. To complete the design, a grounding strap connects the two clevis assemblies to further provide safety to your load cells.

Applications:

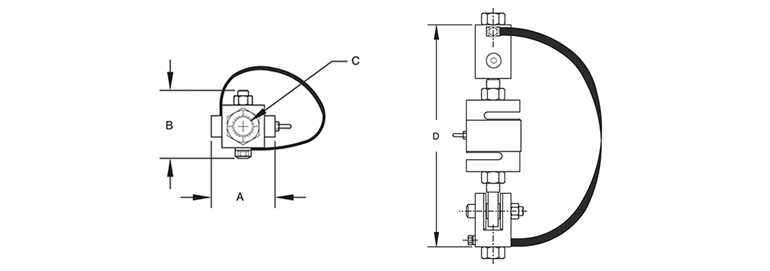

Load Cell Capacity A B C D Single Module 3-Module Kit 4-Module Kit
lb/in Part# Part# Part#
100 lb 2.00 1.81 3/8-16 NC 7.00 (ref) 17851 18003 18027
100 lb 2.00 1.81 1/2-13 NC 7.00 (ref) 17831 18004 18028
150 lb 2.00 1.81 3/8-16 NC 7.00 (ref) 30337 30357 30359
150 lb 2.00 1.81 1/2-13 NC 7.00 (ref) 30336 30358 30360
200 lb 2.00 1.81 3/8-16 NC 7.00 (ref) 30335 30361 30363
200 lb 2.00 1.81 1/2-13 NC 7.00 (ref) 30338 30362 30364
250 lb 2.00 1.81 3/8-16 NC 7.00 (ref) 17852 18005 18029
250 lb 2.00 1.81 1/2-13 NC 7.00 (ref) 17832 18006 18030
500 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 17853 18007 18031
500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 17858 18008 18032
500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 17833 18009 18033
750 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 17854 18010 18034
750 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 17859 18011 18035
750 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 17834 18012 18036
1000 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 17855 18013 18037
1000 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 17860 18014 18038
1000 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 17835 18015 18039
1500 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 17856 18016 18040
1500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 17861 18017 18041
1500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 17836 18018 18042
2000 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 17857 18019 18043
2000 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 17862 18020 18044
2000 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 17837 18021 18045
2500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 17863 18022 18046
2500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 17838 18023 18047
3000 lb 3.37 3.37 3/4-10 NC 10.50 (ref) 30339 30365 30366
5000 lb 3.37 3.37 3/4-10 NC 12.25 (ref) 17864 18024 18048
5000 lb 3.37 3.37 1-8 NC 12.25 (ref) 17839 18025 18049
10,000 lb 3.37 3.37 1-8 NC 12.25 (ref) 17840 18026 18050
15,000 lb 4.00 4.12 1 1/4-7 NC 18.00 (ref) 17960 30353 30354
20,000 lb 5.00 4.12 1 1/2-6 UNC 20.00 (ref) 17961 30355 30356
* Load Rating is per module

Resources / Downloads

Title Download Email
ITCM Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
ITCM Series Installation Guide Download Email Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
ITCM Isolated Tension Cell Mount Assembly Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
ITCM Assembly Light to Medium Capacity Mount Assembly Collateral Wizard Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single-Module Kit

Part # Description List Price Cart
17851 Mount ASSY,ITCM 100 lb 3/8-16UNC Mild Steel Zinc Plated Tension INCL RL20000-100 lb

List Price: $556.00

17831 Mount ASSY,ITCM 100 lb 1/2-13UNC Mild Steel Zinc Plated Tension INCL RL20000-100 lb

List Price: $556.00

30337 Mount ASSY,ITCM 150 lb 3/8-16UNC Mild Steel Zinc Plated Tension INCL RL20000-150LB

List Price: $556.00

30336 Mount ASSY,ITCM 150 lb 1/2-13UNC Mild Steel Zinc Plated Tension INCL RL20000-150LB

List Price: $556.00

30335 Mount ASSY,ITCM 200 lb 3/8-16UNC Mild Steel Zinc Plated Tension INCL RL20000-200LB

List Price: $556.00

30338 Mount ASSY,ITCM 200 lb 1/2-13UNC Mild Steel Zinc Plated Tension INCL RL20000-200LB

List Price: $556.00

17852 Mount ASSY,ITCM 250 lb 3/8-16UNC Mild Steel Zinc Plated Tension INCL RL20000-250 lb

List Price: $556.00

17832 Mount ASSY,ITCM 250 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-250 lb

List Price: $556.00

17853 Mount ASSY,ITCM 500 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb

List Price: $609.00

17858 Mount ASSY,ITCM 500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb

List Price: $609.00

17833 Mount ASSY,ITCM 500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-500 lb

List Price: $609.00

17854 Mount ASSY,ITCM 750 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb

List Price: $609.00

17859 Mount ASSY,ITCM 750 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb

List Price: $609.00

17834 Mount ASSY,ITCM 750 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-750 lb

List Price: $609.00

17855 Mount ASSY,ITCM 1,000 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb

List Price: $609.00

17860 Mount ASSY,ITCM 1,000 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb

List Price: $609.00

17835 Mount ASSY,ITCM 1,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-1,000 lb

List Price: $609.00

17856 Mount ASSY,ITCM 1,500 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb

List Price: $609.00

17861 Mount ASSY,ITCM 1,500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb

List Price: $609.00

17836 Mount ASSY,ITCM 1,500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-1,500 lb

List Price: $609.00

17857 Mount ASSY,ITCM 2,000 lb 1/2-13NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb

List Price: $609.00

17862 Mount ASSY,ITCM 2,000 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb

List Price: $609.00

17837 Mount ASSY,ITCM 2,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-2,000 lb

List Price: $609.00

17863 Mount ASSY,ITCM 2,500 lb 5/8-11NC Mild Steel Zinc Plated Tension INCL RL20000-2,500 lb

List Price: $609.00

17838 Mount ASSY,ITCM 2,500 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-2,500 lb

List Price: $609.00

30339 Mount ASSY,ITCM 3,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-3000LB

List Price: $636.00

17864 Mount ASSY,ITCM 5,000 lb 3/4-10NC Mild Steel Zinc Plated Tension INCL RL20000-5,000 lb

List Price: $832.00

17839 Mount ASSY,ITCM 5,000 lb 1-8NC Mild Steel Zinc Plated Tension INCL RL20000-5,000 lb

List Price: $832.00

17840 Mount ASSY,ITCM 10,000 lb 1-8NC Mild Steel Zinc Plated Tension INCL RL20000-10,000 lb

List Price: $832.00

17960 Mount ASSY,ITCM 15,000 lb 1-1/4-7NC Mild Steel Zinc Plated Tension INCL RL20000-15,000 lb

List Price: $1,722.00

17961 Mount ASSY,ITCM 20,000 lb 1-1/2-6NC Mild Steel Zinc Plated Tension INCL RL20000-20,000 lb

List Price: $2,030.00

3-Module Kit

4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
