Motor Truck Scale Electronic Conversion Kit

Complete Kit Includes

  • One JB8SP NEMA Type 4X signal-trim junction box with individual and section trimming capability (six- and eight-mount kits) or one JB4SP NEMA Type 4X signal-trim junction box (four-mount kits)
  • One UJB3T6 DC transient protector
  • Four, six or eight Translink mounting assemblies with RL75040 or RL75223 load cells
  • 100 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Cost and time efficient installation; no need to remove weighbridge
  • Converts existing scale capacities of 40,000 to 300,000 lb
  • Four, six or eight-mount kits for two, three or four section conversions
  • Translink™ heavy-capacity mounting assemblies
  • Free movement in all directions in the horizontal plane with virtually no friction
  • Completely self-centering
  • Requires no check rods
  • Capacity per mount: 25,000 to 100,000 lb
  • Utilizes cells with 3 mV/V output

Optional Features

  • Custom heights available; consult
  • RLWS RL75223 welded-seal, VPG® Sensortronics 65040A or RTI 5223 load cells

A Conversion Kit that Minimizes Downtime

Full electronic performance can be achieved at a fraction of the cost of a new scale and pit. The Motor Truck Scale (MTS) electronic conversion kit is designed to transform an existing scale pit and weighbridge into a fully electronic vehicle scale. Designed for quick installation without removing the platform or reconfiguring the pit, the conversion kit can often be installed in a matter of days, minimizing downtime. This ease of installation is important when considering installations where it is not feasible to completely remove the existing scale.

Applications:

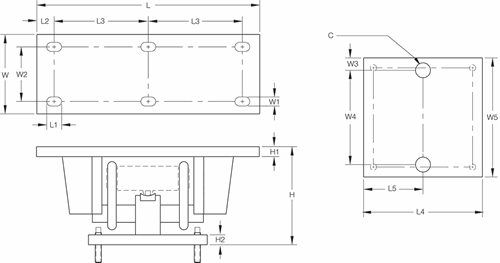

Rated Capacity C H* H1 H2 L L1 L2 L3 L4 L5 W W1 W2 W3 W4** W5
lb/inches
50,000 to 100,000 (RL75223) 1.50 12.93 1.00 1.00 22.50 1.50 1.75 9.50 11.75 5.88 7.75 0.91 5.25 1.25 9.25 11.75
25,000 to 40,000 (RL75040A) 1.50 9.88 1.00 1.00 18.50 1.50 1.75 7.50 11.75 5.88 7.75 0.91 5.25 1.25 9.25 11.75
50,000 to 75,000 (RL75040A) 1.50 12.82 1.00 1.00 22.50 1.50 1.75 9.50 11.75 5.88 7.75 0.91 5.25 1.25 9.25 11.75
*Custom heights available; Consult
**Custom hole spacing for existing bolt patterns is available; Consult

Resources / Downloads

Title Download Email
Motor Truck Scale Electronic Conversion Kit Weigh Module Catalog Page Download Email

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
MTS Conversion Kit Download Email
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

4-Module Kit (Includes Weigh Modules Load Cells, Junction Box, and Transient Protection)

Part # Description List Price Cart
30513 Truck Mount Kit,40K 4EA Translink RL75040A-25K JB4SS UJB-3T6

List Price: $6,164.00

30514 Truck Mount Kit,60K 4EA Translink RL75040A-40K JB4SS UJB-3T6

List Price: $6,694.00

6-Module Kit (Includes Weigh Modules Load Cells, Junction Box and Transient Protection)

8-Module Kit (Includes Weigh Modules Load Cells, Junction Box and Transient Protection)

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
