Printer Kiosks

Direct Thermal Printer Kiosk

  • Custom America VKP80II
  • Slide door access to ticket
  • 8 in paper roll

Printer Kiosk with Ethernet Intercom

  • Digital Acoustics Ethernet TCP/IP intercom substation

Thermal-transfer Printer Kiosk

  • Painted mild steel enclosure
  • Slide door access to ticket
  • Zinc-plated 3/4-inch NPT conduit hubs
  • Additional options available upon request

Note: Printer, thermal transfer ribbon and card stock sold separately

Automated Kiosk Systems Streamline Traffic and Data Management

Rice Lake’s Automated Kiosk Systems boost efficiency and optimize the flow of traffic in and out of your facility with fully automated or semi-unattended ticketing. With ticketing kiosks, drivers can check-in, weigh-in and -out, and print tickets without ever exiting the truck, increasing safety for your drivers. By automating everything from point-of-sale to account management, this system virtually eliminates transaction errors.

Rice Lake’s kiosks can integrate with the central office and accounting systems, no matter the size. The user-friendly interface is housed in a rugged, painted mild or stainless steel enclosure for long-lasting use. Automated kiosks are ideal for a variety of applications, including ports, transfer stations, landfills, warehouses, feed mills, grain terminals, chemical plants, construction sites, load-out facilities and more.

Line Voltages:
115 or 230 VAC

Frequency:
50 or 60 Hz

Power Consumption:
0.5 amps (depending on options)

Fusing:
3.15 amps circuit breaker

Humidity:
0 to 95% relative humidity

Rating/Material:
NEMA Type 1
IP10

Printer Communication Ports:
RS-232 or Ethernet

Storage Temperature:
14 °F to 158 °F (-10 °C to 70 °C)

Warranty:
Two-year limited

Line Voltages:
115 or 230 VAC

Frequency:
50 or 60 Hz

Power Consumption:
0.5 amps (depending on options)

Fusing:
6 amp circuit breaker

Humidity:
0 to 95% relative humidity

Rating/Material:
NEMA Type 1
IP10

Printer Serial Ports:
RS-232
Ethernet (optional)

Storage Temperature:
14 °F to 158 °F (-10 °C to 70 °C)

Current Supported Riser Plates:
Zebra® 140XiIIIPlus
Zebra 105SL
Zebra R110Xi
Zebra Z4Mplus
Zebra 2746e
Honeywell 4206
Honeywell I-4212
Intermec/Honeywell 3400e
Intermec/Honeywell 4440

Warranty:
Two-year limited

Resources / Downloads

Title View Email Category Type
Truck Scale System Accessories View Email Truck Scales Articles

Title Download Email
Printer Kiosk Catalog Page Download Email

Title Download Email
Automated Ticketing Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
ATK Automated Kiosk Systems Collateral Wizard Request Download Email Vehicle Scale Accessories|Automated Systems

Title View Download Email Category
ATK Automated Ticketing Kiosk Overview View Download Email Kiosks / Terminals

Parts

Part # Description List Price Cart

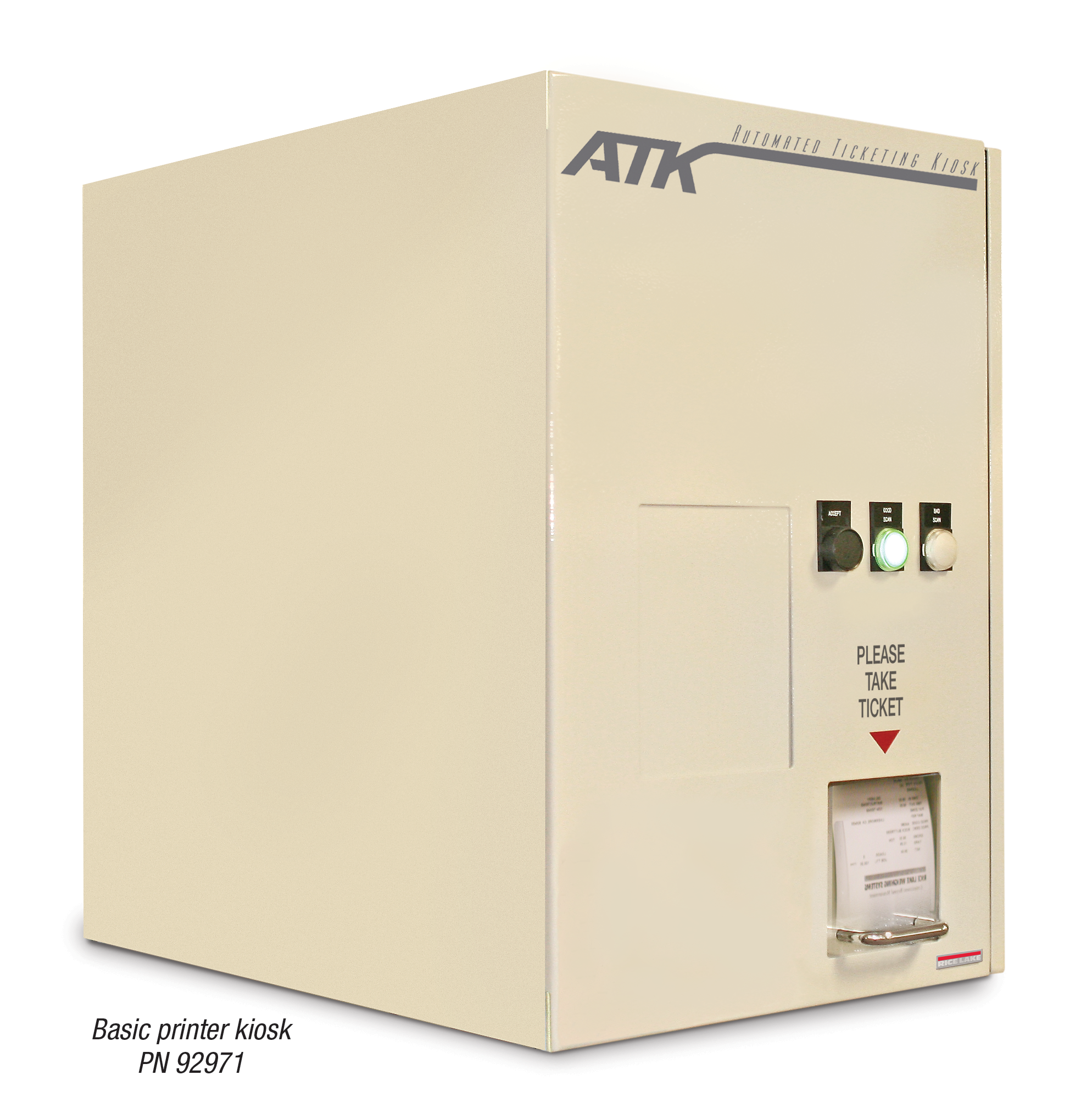

92971 Kiosk,Printer Base Unit 115VAC - No Heater Kiosk Enclosure Does Not Include Printer

List Price: $3,255.00

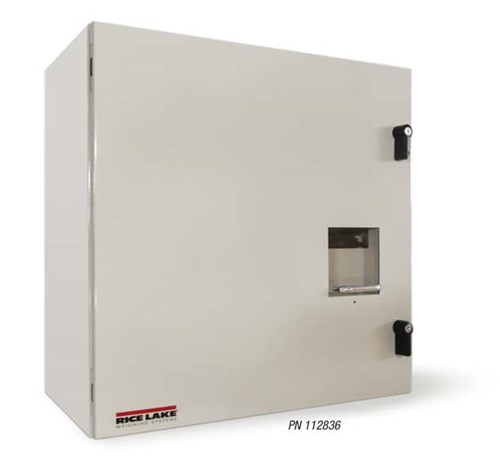

112836 Printer Kiosk Assembly w/Slide Door access & Holding.(no indicator or heater) Includes: Direct Thermal Printer. Size:20x20x12 - painted beige

List Price: $4,165.00

193639 Printer Kiosk,Ethernet Assembly w/Slide Door access & Holding.(no indicator or heater) Includes: Direct Thermal Printer. Size:20x20x12 - painted beige Includes Ethernet Printer kit PN 191359

List Price: $4,235.00

Options

Part # Description List Price Cart
119693 Heater,200W Sub-Assembly 120VAC w/ fan & thermostat. Includes Wiring Drawings And Mounting Hardware.

List Price: $715.00

119761 Ethernet Unmanaged Switch Requires 12 To 36 VDC ESW105, Industrial 5 port

List Price: $315.00

119946 ATS Printer OPT,Ethernet UDS-1100 Converter with cable and mounting hardware for Kiosk Printer. 40 inch, 28 pin M to 9 pin M.

List Price: $485.00

120040 ATS Printer OPT,Ethernet UDS-2100 Converter with cable and mounting hardware for kiosk printer. Blunt end.

List Price: $675.00

93463 Riserplate, Printer Datamax I-4208, I-4308 & I-4212. (Comes w/ Rubber Feet & Nuts.) I-Class Printers

List Price: $315.00

93468 Riserplate, Printer Intermec 3400D

List Price: $315.00

176452 Reader,HID Smart Card Assembly Includes Wiegand to RS232 Converter and Mounting Hardware (Replacement for part 85901)

List Price: $610.00

131143 Printer,Label I-4212e DT RS-232, Parallel, & USB, 115VAC, US Power Cord, CE Mark

List Price: $1,595.00

64884 Printer OPT,Thermal Trans Standard Thermal Transfer Option (Coated Side In) I-Class

List Price: $133.00

131150 Ethernet,LAN I-4212e Wired 10/100

List Price: $365.00

53918 Printer OPT,Standard Industrial Cutter Kit I Class

List Price: $798.00

109298 Tag,Direct Thermal 4 Inch DTT x Continuous, 7.2 mil, 3IN Core, 8IN OD 480 FT Roll Wound Out

List Price: $48.00

179762 Printer,Kiosk 80mm DTL Direct Thermal, Presenter & Retractor RS232/USB, Custom America VKP80II Paper Holder and Power Supply Sold Separately

List Price: $1,175.00

199634 Printer,Configured VKP80III to VKP80II Emulation Mode.

List Price: $1,455.00

Consumables

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
