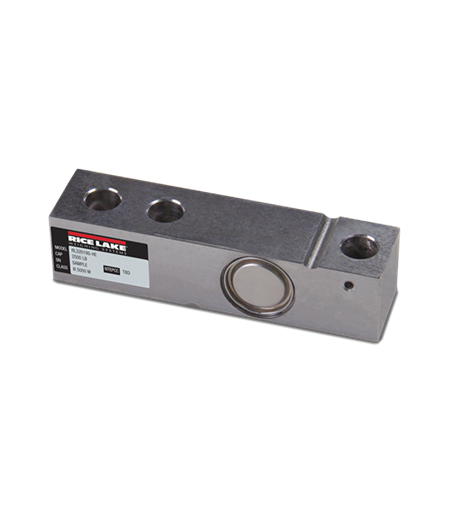

Rice Lake RL32218S-HE Stainless Steel, Single-Ended Beam

The RL32218S-HE model is similar to the RL32019S-HE but with 20 ft of PTFE cable. As with the RL32019S-HE, this model is also hermetically sealed and comes in capacities from 1,000 lb to 10,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V ±0.05% current matched

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range:
14° F to 104° F/-10° C to 40° C
Operating range:
0° F to 200° F/-18° C to 93° C

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms

Cable Length:
20 ft PTFE cable

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Rated Capacity A B C D E F G H I J K L M N
lb/in
1,000-4,000 1.24 0.59 0.96 2.20 1.24 5.12 0.53 0.70 1/2-20 UNF 3.00 1.00 0.62 0.25 0.13
5,000-10,000 1.50 0.75 1.45 2.99 1.50 6.75 0.80 0.70 3/4-16 UNF 3.75 1.50 0.75 - -





Resources / Downloads

Title Download Email
RL32218S-HE Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Your First Choice in Load Cells Download Email Load Cells
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart
191634 Load Cell,SEB RL32218S-HE 1000lb 20ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69

List Price: $405.00

191635 Load Cell,SEB RL32218S-HE 2500lb 20ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69

List Price: $405.00

191636 Load Cell,SEB RL32218S-HE 4000lb 20ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69

List Price: $405.00

191637 Load Cell,SEB RL32218S-HE 5000lb 20ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69

List Price: $450.00

191638 Load Cell,SEB RL32218S-HE 10000lb 20ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69

List Price: $450.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products Af5d9a3ee66d4b4899b3fdfd26fe32d5 Orig

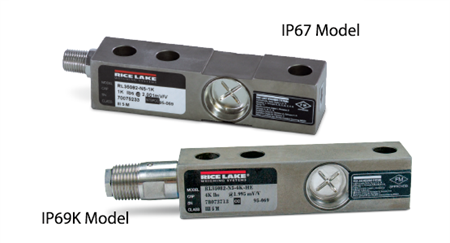

Rice Lake RL35082 Stainless Steel, Single-Ended Beam Load Cell

Rice Lake RL35082 NTEP Certified, stainless steel, welded seal, single-ended beam load cell is a precision load cell offering exceptional performance and reliability in hostile environment applications typical of food and chemical processing.

WEB SC Sensortronics65083s

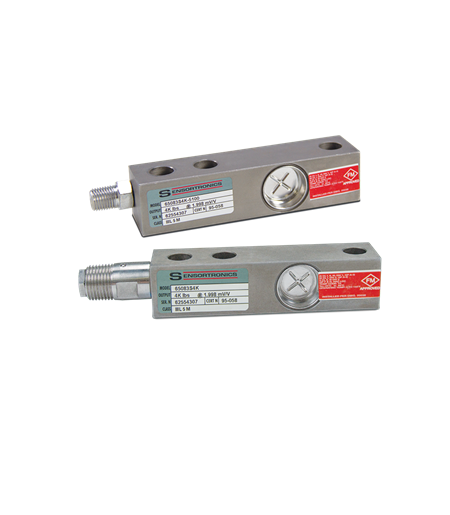

VPG Sensortronics 65083S Single-Ended Beam, Stainless Steel Load Cell
