RL50210TA Mini Tank Weighing Module

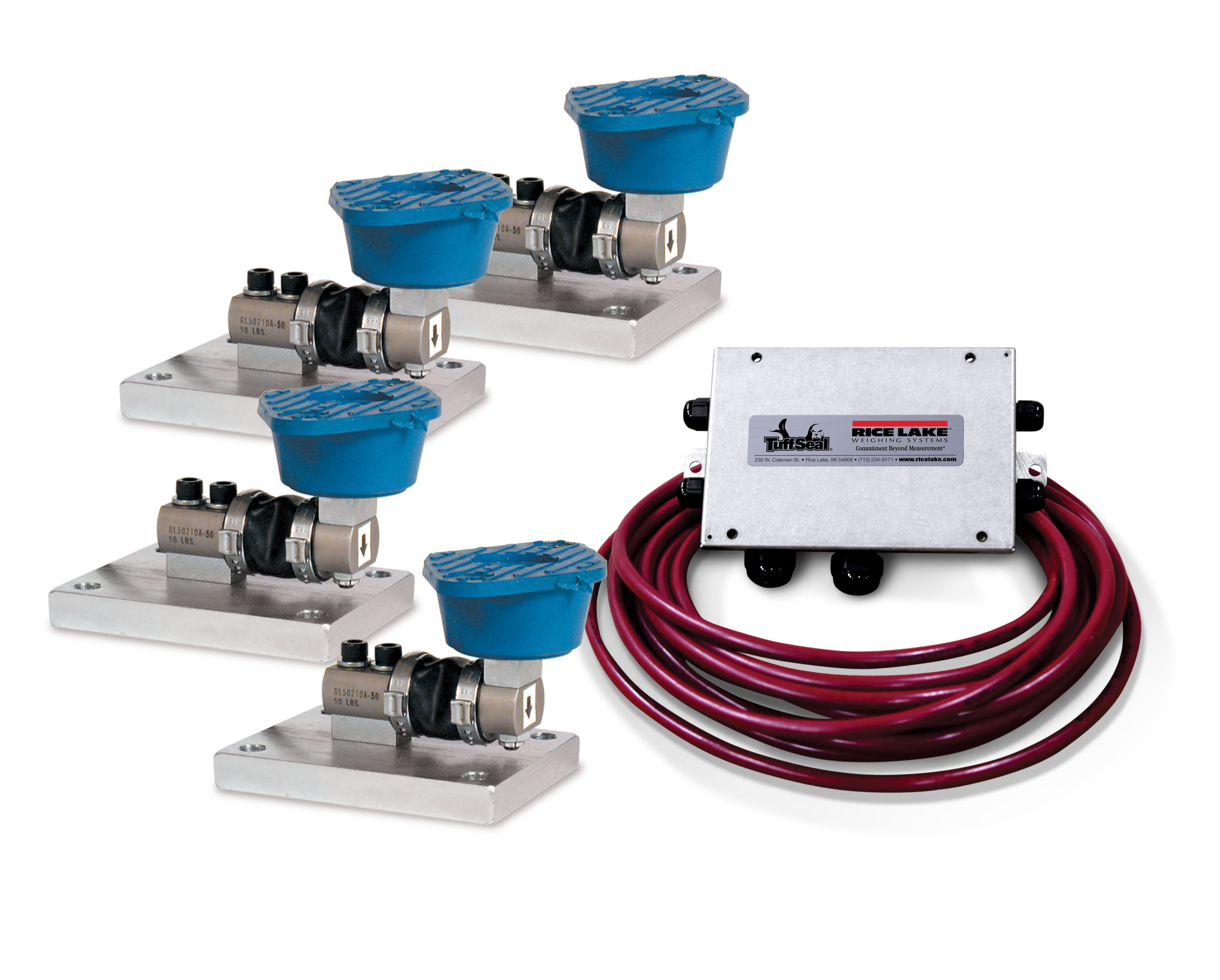

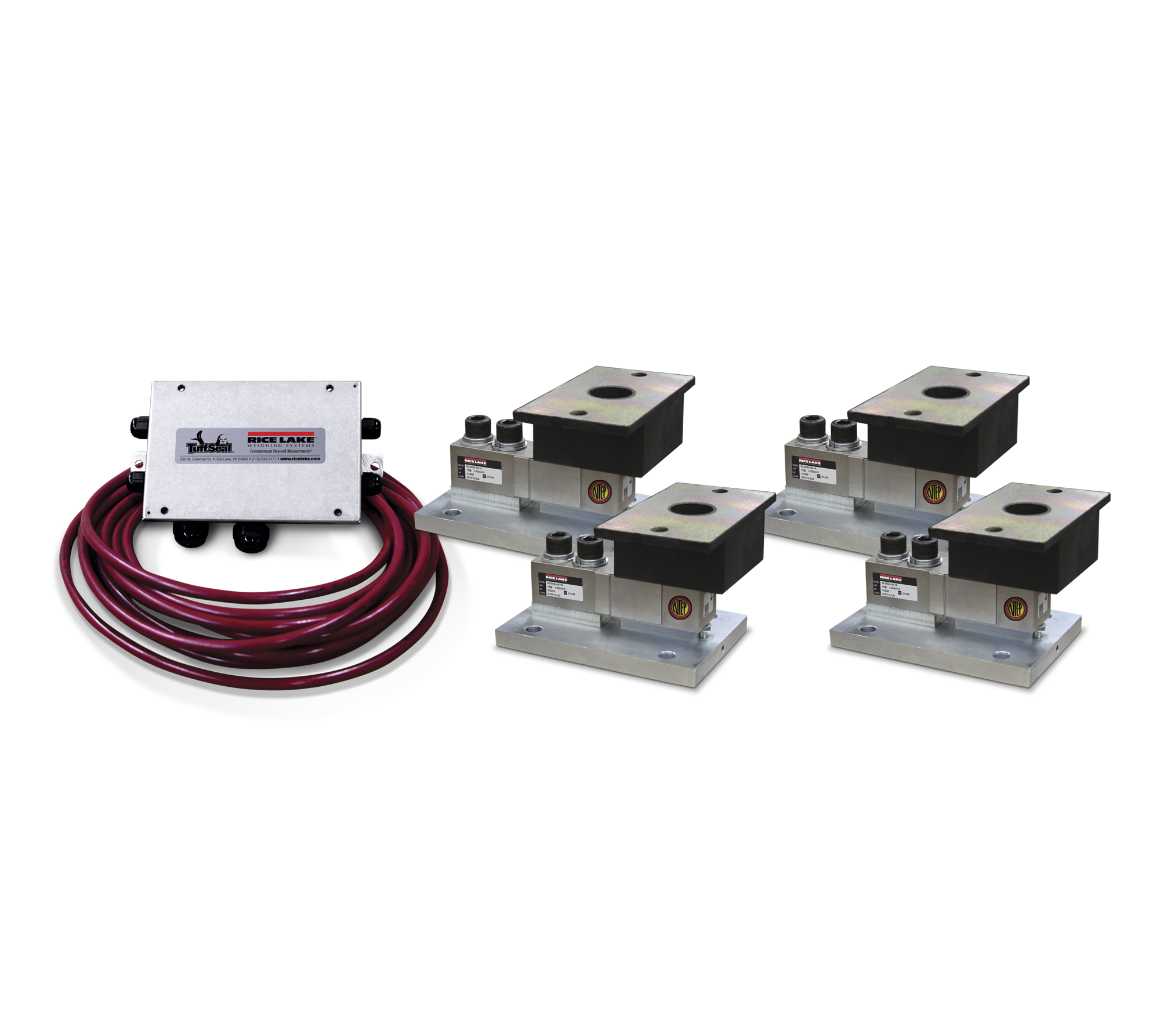

Complete Kit Includes

  • Three or four RL50210 cantilever beam load cells
    (50 to 250 lb mild steel)
  • Three or four RL30000 single-ended beam load cells
    (500 lb mild steel)
  • Three or four RL32018 single-ended beam load cells
    (1,000 to 2,500 lb mild steel)
  • Three or four RL39123 single-ended beam load cells
    (500 lb stainless steel)
  • Three or four RL32018S single-ended beam load cells
    (1,000 to 2,500 lb stainless steel)
  • Three or four neoprene isolation/compression mounts
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • NTEP Certified load cells
  • Zinc plated mild steel or stainless steel assemblies
  • Weighing ranges from 50 to 2,500 lb per module
  • Neoprene isolation mounts allow for minor misalignment, thermal expansion and shock absorption
  • Overload stop provides durability

Optional Features

  • Stainless steel modules available in 500 lb capacities with RL39123 stainless steel load cells



Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Weighing Module for Medium-Range Needs

The RL50210TA weigh module kit provides a cost-effective alternative for your customer's medium-range weighing needs. A variety of features makes this kit easy to install and an exceptional choice for various indoor weighing applications where checking requirements are low. Environmentally protected load cells, neoprene isolation/compression mounts and other Rice Lake Weighing Systems components are the keys to this module’s performance.

Applications:

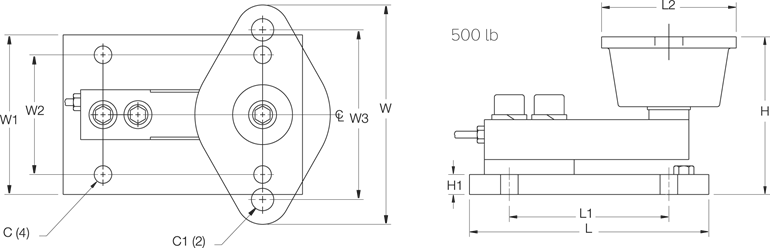

Rated Capacity C C1 H H1 L L1 L2 W W1 W2 W3
lb/in
50 to 250 0.34 - 3.13 0.50 4.00 3.25 2.38 3.88 3.00 2.25 -
500 0.44 0.56 3.88 0.50 6.00 4.00 3.38 5.50 4.00 3.00 4.13
1,000 0.44 - 4.00 0.50 6.00 4.00 3.00 5.13 4.00 3.00 4.13
2,000 to 2,500 0.44 0.56 4.00 0.50 6.00 4.00 4.62 6.25 4.00 3.00 5.00

Resources / Downloads

Title Download Email
RL50210TA Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL 50210 TA/65059 Load Cell Mounting Kit Installation Guide A Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
RL50210 TA/65059 Mini Tank Assembly Mild Steel Replacement Parts Page Download Email
RL50210 TA Mini Tank Assembly Stainless Steel Replacement Parts Page Download Email
RL50210 TA/65059 Mini Tank Assembly 500lb Replacement Parts Page Download Email
RL50210 TA/65059 Mini Tank Assembly 1000lb - 2500lb Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RL50210 TA Mini Tank Weigh Module Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Mild Steel Single Module (Includes Load Cell)

Part # Description List Price Cart
17844 Mount ASSY,RL50210TA-50 50 lb Mild Steel Zinc Plated Compression INCL RL50210-50 lb

List Price: $460.00

17845 Mount ASSY,RL50210TA-100 100 lb Mild Steel Zinc Plated Compression INCL RL50210-100 lb

List Price: $460.00

17846 Mount ASSY,RL50210TA-150 150 lb Mild Steel Zinc Plated Compression INCL RL50210-150 lb

List Price: $460.00

17847 Mount ASSY,RL50210TA-250 250 lb Mild Steel Zinc Plated Compression INCl RL50210-250 lb

List Price: $460.00

17848 Mount ASSY,RL50210TA-500 500 lb Mild Steel Zinc Plated Compression INCL RL30000-500 lb

List Price: $610.00

17849 Mount ASSY,RL50210TA-1K 1,000lb Mild Steel Zinc Plated Compression INCL RL32018-1,000 lb

List Price: $610.00

17948 Mount ASSY,RL50210-2K 2,000lb Mild Steel Zinc Plated Compression INCL RL32018-2,000 lb

List Price: $610.00

17949 Mount ASSY,RL50210-2.5K 2,500lb Mild Steel Zinc Plated Compression INCL RL32018-2,500lb

List Price: $610.00

Mild Steel 3-Module Kit

Mild Steel 4-Module Kit

Stainless Steel Single Module (Includes Load Cell)

Stainless Steel 3-Module Kit

Stainless Steel 4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
