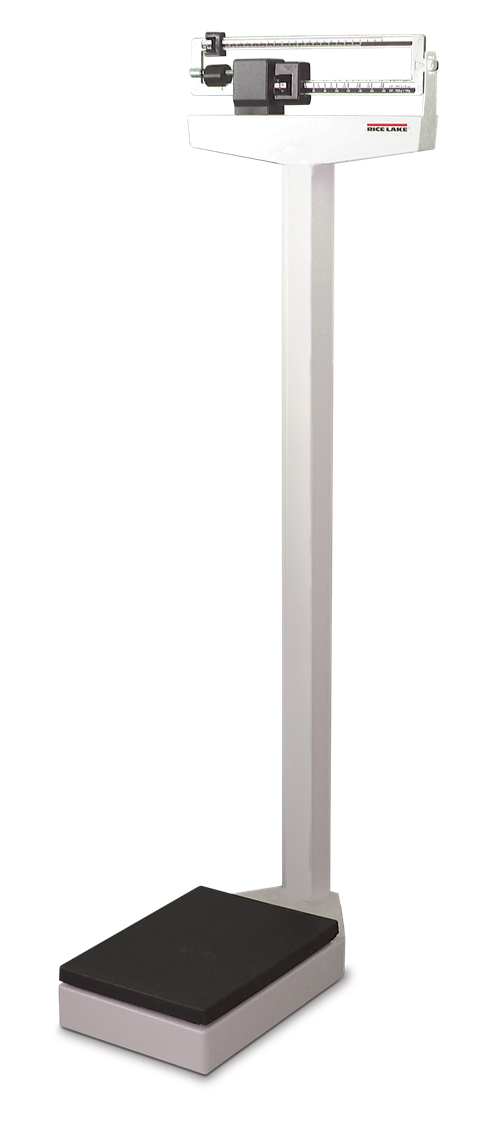

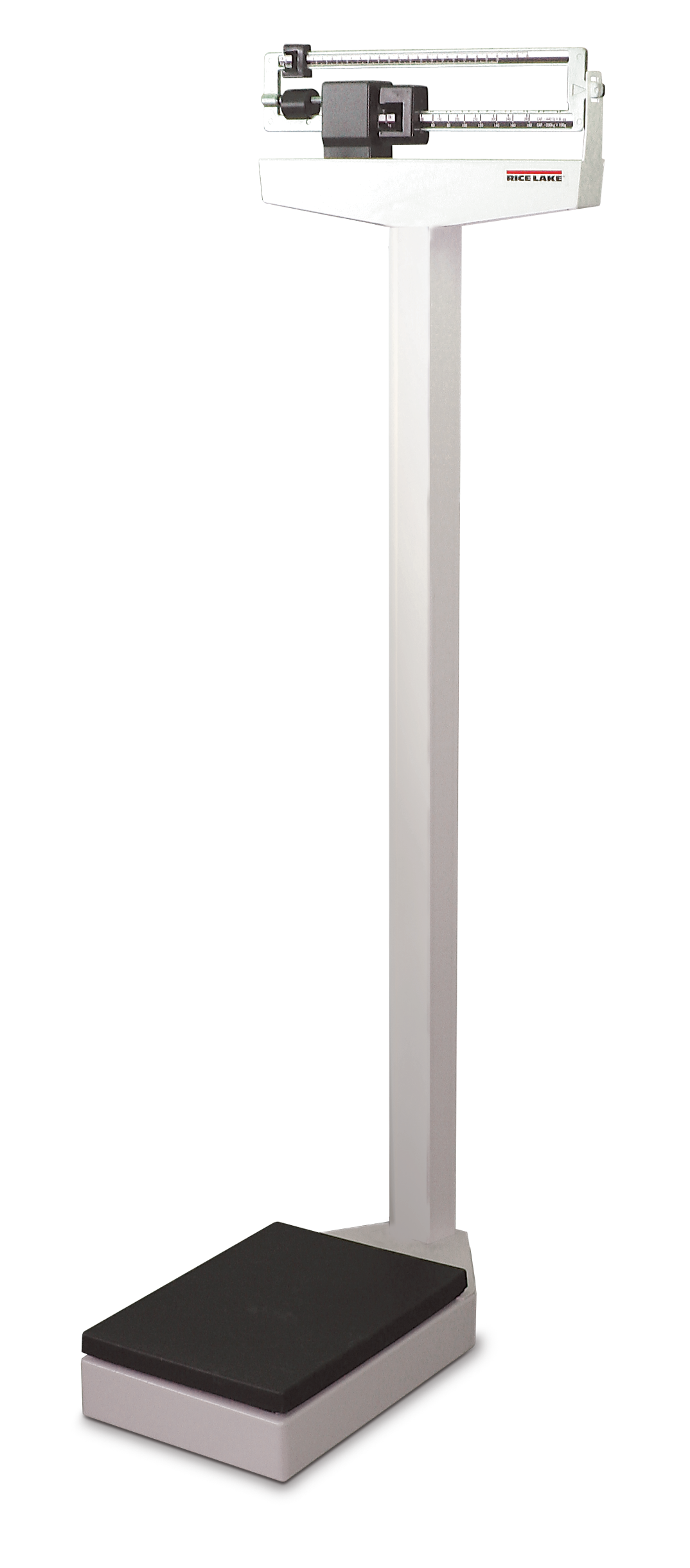

RL-MPS-20 Mechanical Physician Scale
- Sturdy, enameled steel body
- Painted beam
- Rugged scale understructure

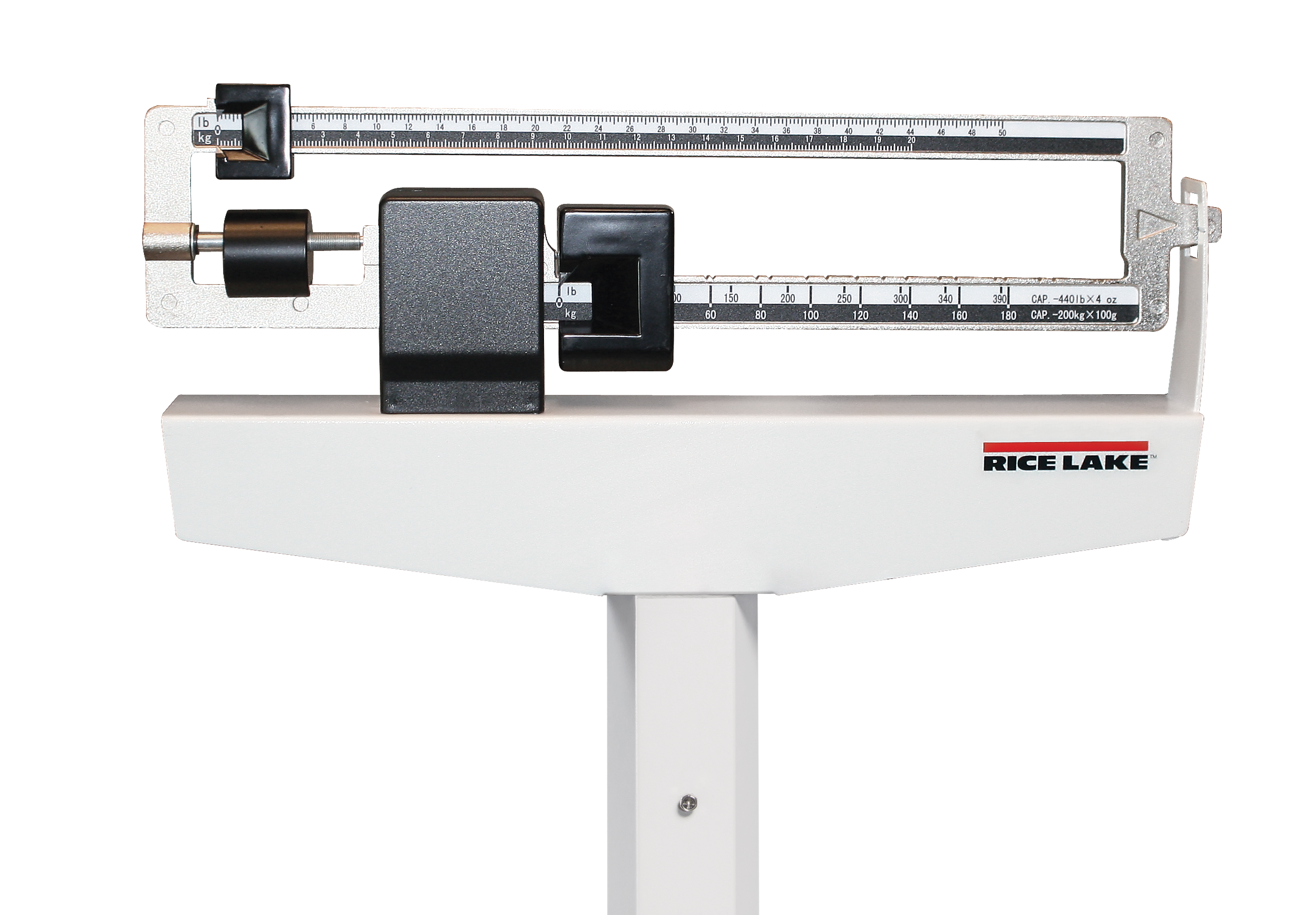

- Easy operation with two sliding weights
- Removable slip-resistant scale base cover
Same-day Shipping Available
Dual-read Mechanical Physician Scale
The RL-MPS-20 mechanical physician scale features a durable, enameled steel body and can weigh up to 440 pounds or 200 kilograms. Two sliding weights can be used on either side of the scale for accessibility and simple operation. The base is designed with a removable, slip-resistant cover for easy cleaning and maintenance. This physician scale can be transported easily with two durable wheels at the base. An aluminum height rod is retractable against the enameled beam.
RL-MPS-20 Mechanical Physician Scale Specifications
|
Capacity: |
Platform Dimensions: |
Warranty: Two-year limited |
RL-MPS-20 Mechanical Physician Scale Dimensions
| Dimensions | Inches | Centimeters |
|---|---|---|
| A | 10.75 | 27.3 |
| B | 14.75 | 37.5 |
| C | 4.13 | 10.5 |
| D | 22.30 | 56.6 |
| E | 58.50 | 148.6 |
RL-MPS-20 Mechanical Physician Scale Shipping Weight
| Shipping Weight | |||||
|---|---|---|---|---|---|
| Part # | Model # | L × W × H | Package Wgt. | Dim Wgt. | Shipping Wgt. |
| 124222 | RL-MPS-20 | 60 × 21 × 7 in | 36 lb | 64 lb | 64 lb |
Resources/Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| How to Clean a Mechanical Health Scale | View |  Email |
Mechanical Health Scales|Health Scales | Articles |
| How Often Should You Calibrate A Medical Scale? | View | Email |
Health Scales | Articles |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Mechanical Physician Scales | View | Download | Email |
Health Scales|Mechanical Health Scales |
| How to Zero a Mechanical Scale | View | Download | Email |
Health Scales|Mechanical Health Scales|Discontinued Health Scales |
| Measurement Solutions Throughout a Healthcare Facility | View | Download | Email |
Health Scales |
How to Zero a Mechanical Scale
Measurement Solutions Throughout a Healthcare Facility
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 124222 | Scale,RL-MPS-20 440lb(200kg) x 4oz (100g) |
List Price: $330.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products
RL-MPS Mechanical Physician Scale
The RL-MPS mechanical physician scale features a dual painted beam for weighing up to 440 pounds (200 kilograms).
RL-MPS-10 Mechanical Physician Scale
The RL-MPS-10 mechanical physician scale features a painted beam for weighing up to 450 pounds.
RL-MPS-30 Mechanical Physician Scale
The RL-MPS-30 Mechanical Physician Scale with hand post features a painted beam for weighing up to 180 kilograms.

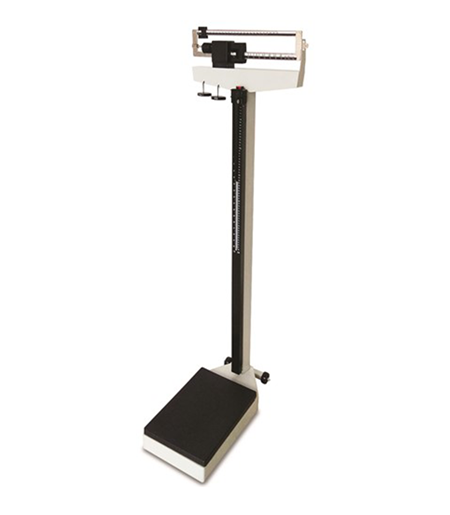

RL-MPS-40 Mechanical Physician Scale
The RL-MPS-40 mechanical physician scale is a dual-read scale with a capacity of 440 pounds (200 kilograms) and 490 pounds (220 kilograms).

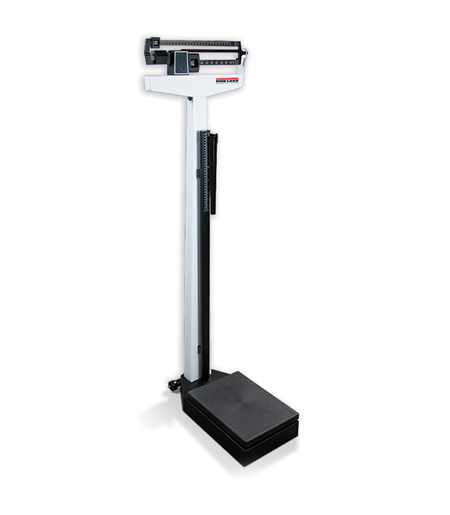

RL-MPS-50 Mechanical Physician Scale
