RLC Stainless Steel Weigh Module, VPG Revere

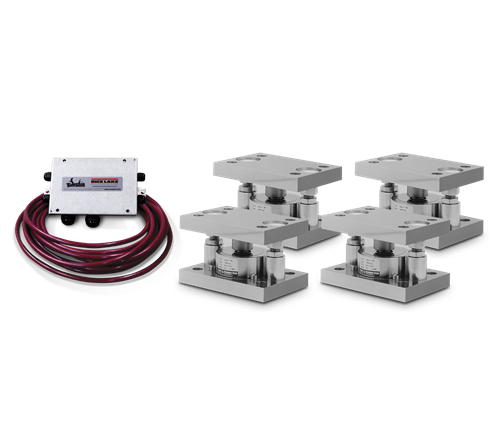

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three or four RLC stainless steel compression mounts
  • Three or four RLC stainless steel hermetically sealed compression disk load cells
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 0.5 to 5 t
  • Matched output load cells eliminate trimming
  • 304 stainless steel construction
  • Rocker pin design allows movement in all directions
  • Hermetically sealed, IP66/68 stainless steel load cells
  • Easy load cell replacement
  • Integral jacking/shipping bolts

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

A Weigh Module with Long-Term Reliability

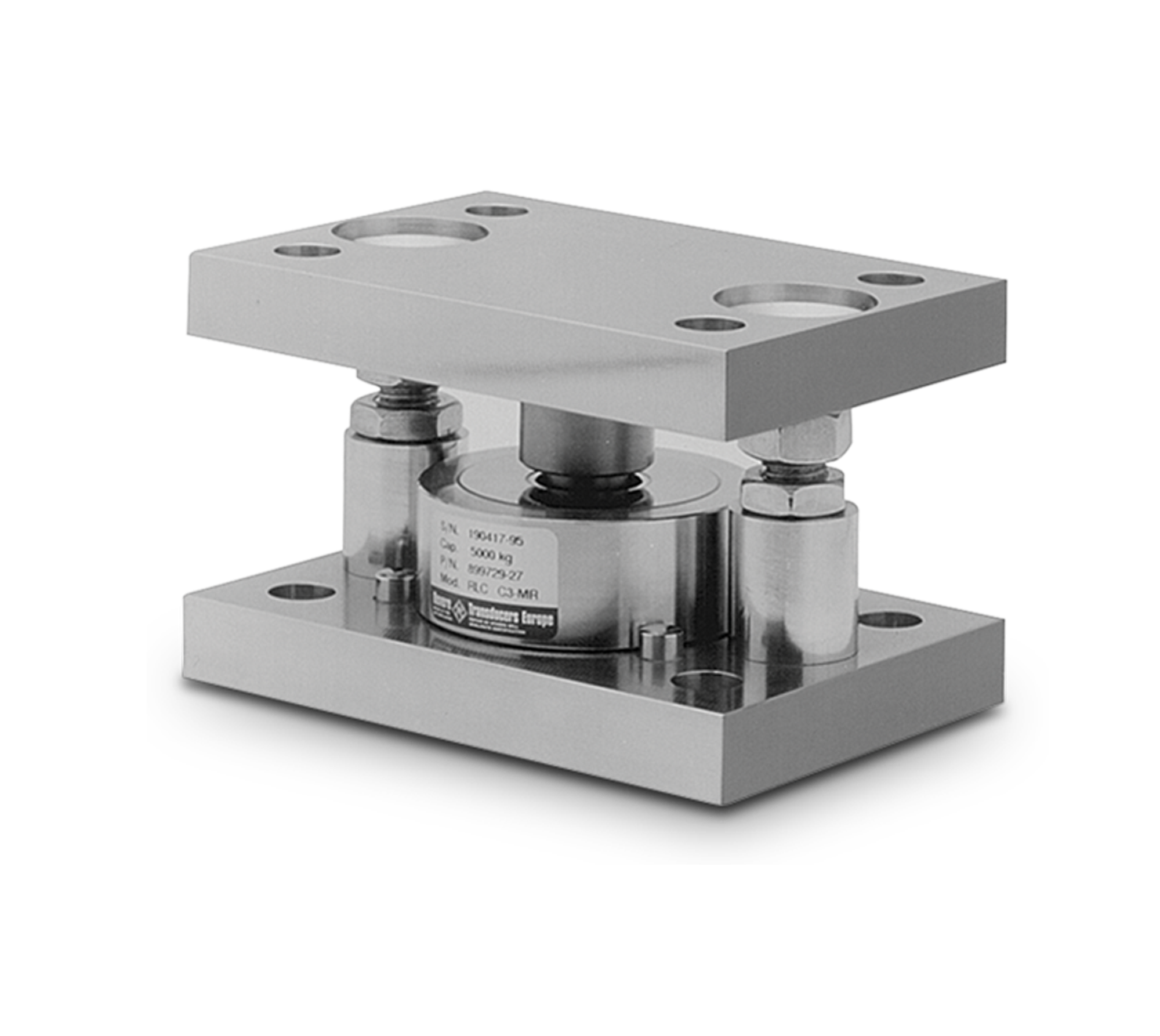

The RLC self-aligning silo mount, together with the RLC load cell family, are an ideal solution for process control, batch weighing, silo/hopper and belt scale applications. The RLC mount incorporates a removable rocker pin design, that uses hardened stainless steel components on all load-bearing surfaces. The fully stainless steel construction guarantees long-term reliability, even in harsh environments.

Applications:

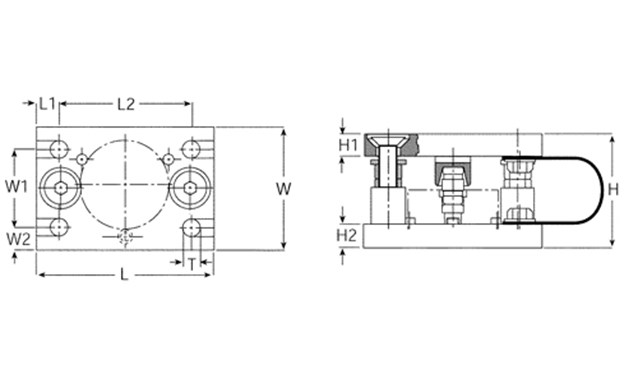

Rated Capacity H H1 H2 L L1 L2 T W W1 W2
ton/mm
0.5 to 1 80 20 15 150 15 120 14 (Top plate) 100 70 15
2 to 5 100 20 20 160 20 120 13.8 (Bottom plate) 110 70 20

Resources / Downloads

Title Download Email
RLC Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RLC Self-Aligning Silo Mount Installation Manual A Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Includes Load Cell)

Part # Description List Price Cart
36401 Mount ASSY,RLC-500kg SST Compression Incl RLC-B10-500kg

List Price: $1,198.00

36402 Mount ASSY,RLC-1000kg SST Compression Incl RLC-B10-1000kg

List Price: $1,198.00

36403 Mount ASSY,RLC-2000kg SST Compression Incl RLC-B10-2000kg

List Price: $1,383.00

36404 Mount ASSY,RLC-3500kg SST Compression Incl RLC-B10-3500kg

List Price: $1,383.00

36405 Mount ASSY,RLC-5000kg SST Compression Incl RLC-B10-5000kg

List Price: $1,383.00

3-Module Kit

4-Module Kit

Replacement Rocker Pin Set (Kit includes upper cup, rocker pin and grease)

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
