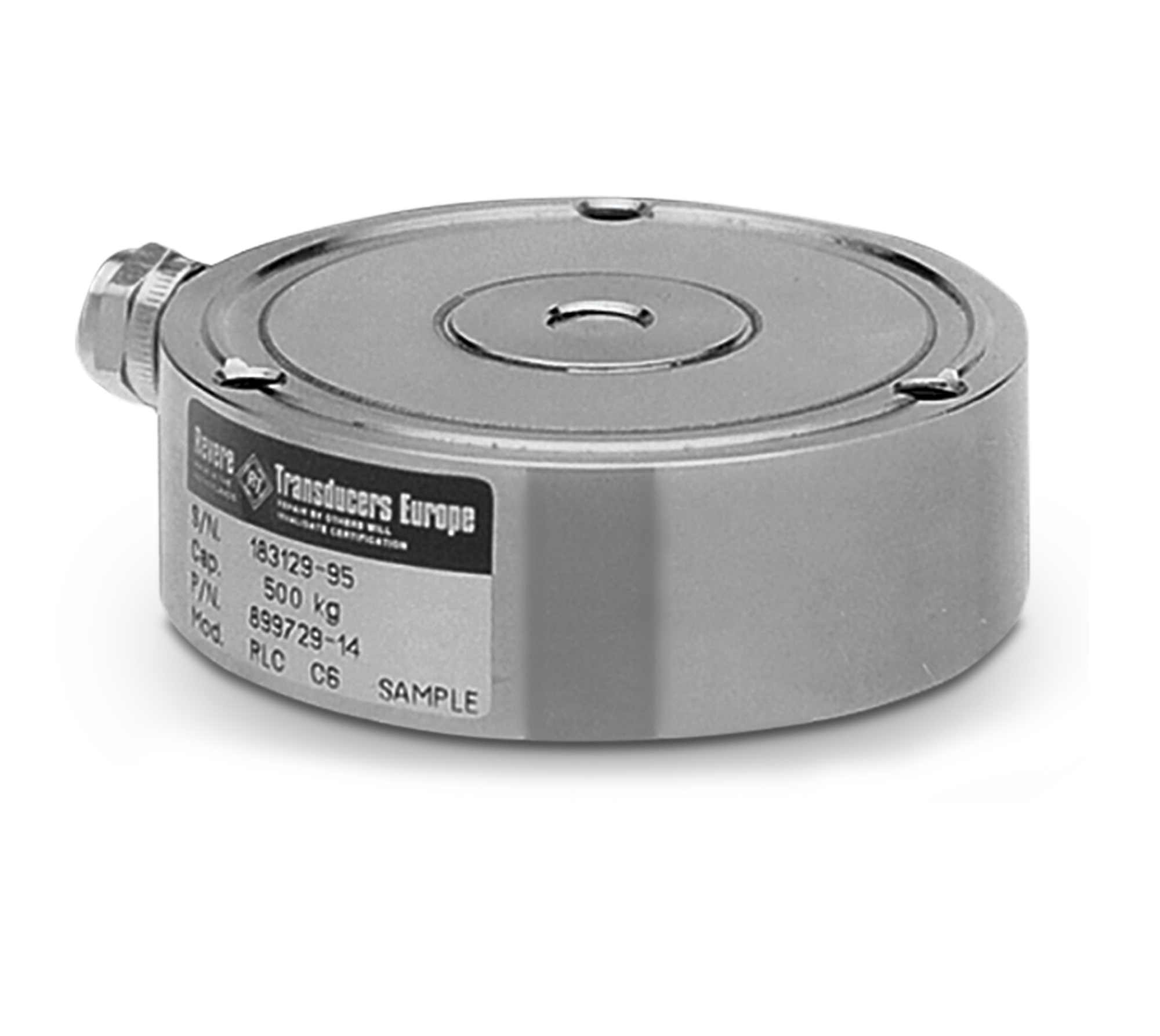

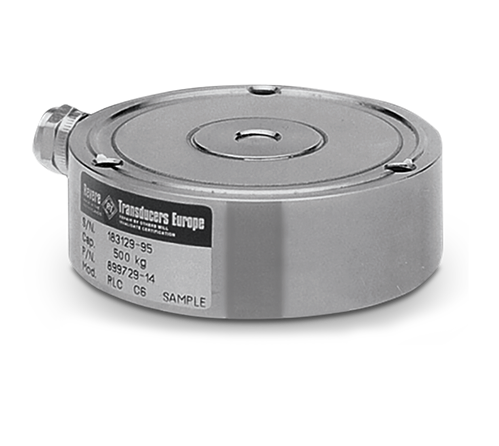

VPG Revere RLC Stainless Steel, Compression Disk Load Cell

A low profile, high performance ring torsion type load cell in stainless steel. This product is suitable for small and medium platform scales as well as process weighing. Capacities range from 0.25 T to 10 T.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

rl-VPG-revere-RLC-compression-disk-load-cell

HD View

RLC Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (± 25) ohm

Input Resistance:
1,110 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
5 m

Cable Color Code:
Pink +Excitation
Grey –Excitation
Brown +Signal
White –Signal

Warranty:
One-year limited

Approvals:
FM
OIML
NTEP

RLC Load Cell Dimensions

Rated Capacity	D	D1	D2	D3	H	H1	H2	H3	T
T/in
0.25 to 1	2.76	3.15	3.84	0.40	0.99	0.60	0.04	0.37	M6 (3 x 120°)
2 to 5	2.76	3.15	3.84	0.60	1.18	0.79	0.24	0.33	M6 (3 x 120°)
10	3.26	3.74	4.42	0.98	1.37	0.58	-	0.39	M6 (3 x 120°)

Resources / Downloads

Catalogs

Title	Download	Email
Revere RLC Load Cell Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Load Cell and Weigh Module Handbook		B	Download	Email	Load Cells\|Weigh Modules	No

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Load Cell and Weigh Module Selection Guide		Request	Download	Email	Load Cells\|Weigh Modules

White Papers

Title	Download	Email	Category
Choosing Load Cells for Tough Applications	Download	Email	Load Cells

Parts

Part #	Description	List Price	Cart
177263	Load Cell,CDK RLC-B10-10t 10000kg 5m RTI 2mv/v 1100 Ohm SST HS IP66/68 FM	List Price: $742.00	View Cart

NTEP Certified

Part #	Description	List Price	Cart
36190	Load Cell,CDK RLC-B10- 0.5t-5MP1 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10M FM	List Price: $689.00	View Cart
36191	Load Cell,CDK RLC-B10- 1.0t-5MP1 1000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M	List Price: $689.00	View Cart
36192	Load Cell,CDK RLC-B10- 2.0t-5MP1 2000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M FM	List Price: $742.00	View Cart
36193	Load Cell,CDK RLC-B10- 3.5t-5MP1 3500kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M	List Price: $742.00	View Cart
36194	Load Cell,CDK RLC-B10- 5.0t-5MP1 5000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M	List Price: $742.00	View Cart

OIML

Part #	Description	List Price	Cart
126714	Load Cell,CDK RLC-C3- .25t 250kg 5M RTI 1.75 MV/V 1100 Ohm SST HS IP66/68 OIML	List Price: $689.00	View Cart
126715	Load Cell,CDK RLC-C3- .5t 500kg 5M RTI 2 MV/V 1100 Ohm SST HS IP66/68 OIML FM	List Price: $689.00	View Cart
126716	Load Cell,CDK RLC-C3-1T 1000kg 3M RTI 2 MV/V 1100 Ohm SST HS IP66/68 OIML FM	List Price: $742.00	View Cart
126717	Load Cell,CDK RLC-C3- 2t 2000kg 5M RTI 2 MV/V 1100 Ohm SST HS IP66/68 OIML FM	List Price: $742.00	View Cart
126718	Load Cell,CDK RLC-C3- 3.5t 3500kg 5M RTI 2 MV/V 1100 Ohm SST HS IP66/68 OIML FM	List Price: $742.00	View Cart
126719	Load Cell,CDK RLC-C3- 5.0t 5000kg 5M RTI 2 MV/V 1100 Ohm SST HS IP66/68 OIML FM	List Price: $742.00	View Cart
177262	Load Cell,CDK RLC-C3-10t 10000kg 5m RTI 2mv/v 1100 Ohm SST HS IP66/68 OIML FM	List Price: $742.00	View Cart

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

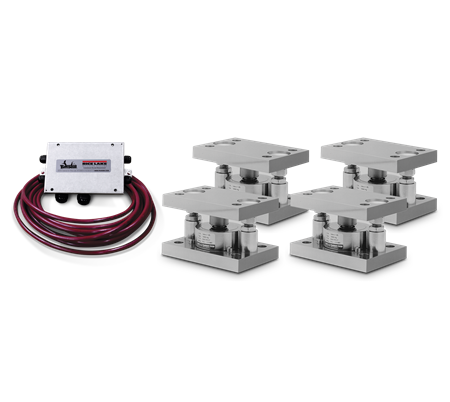

RLC Stainless Steel Weigh Module, VPG Revere
