RoughDeck® Rough-n-Ready System, Floor Scale and 482/482 Plus Indicator

  • Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 482/482 Plus indicator
  • Package is factory-calibrated for 5,000 divisions

Scale

  • Heavy-duty design with structural steel under support
  • Four NTEP certified alloy steel shear beam load cells
  • Side-access JB4SS TuffSeal® junction box

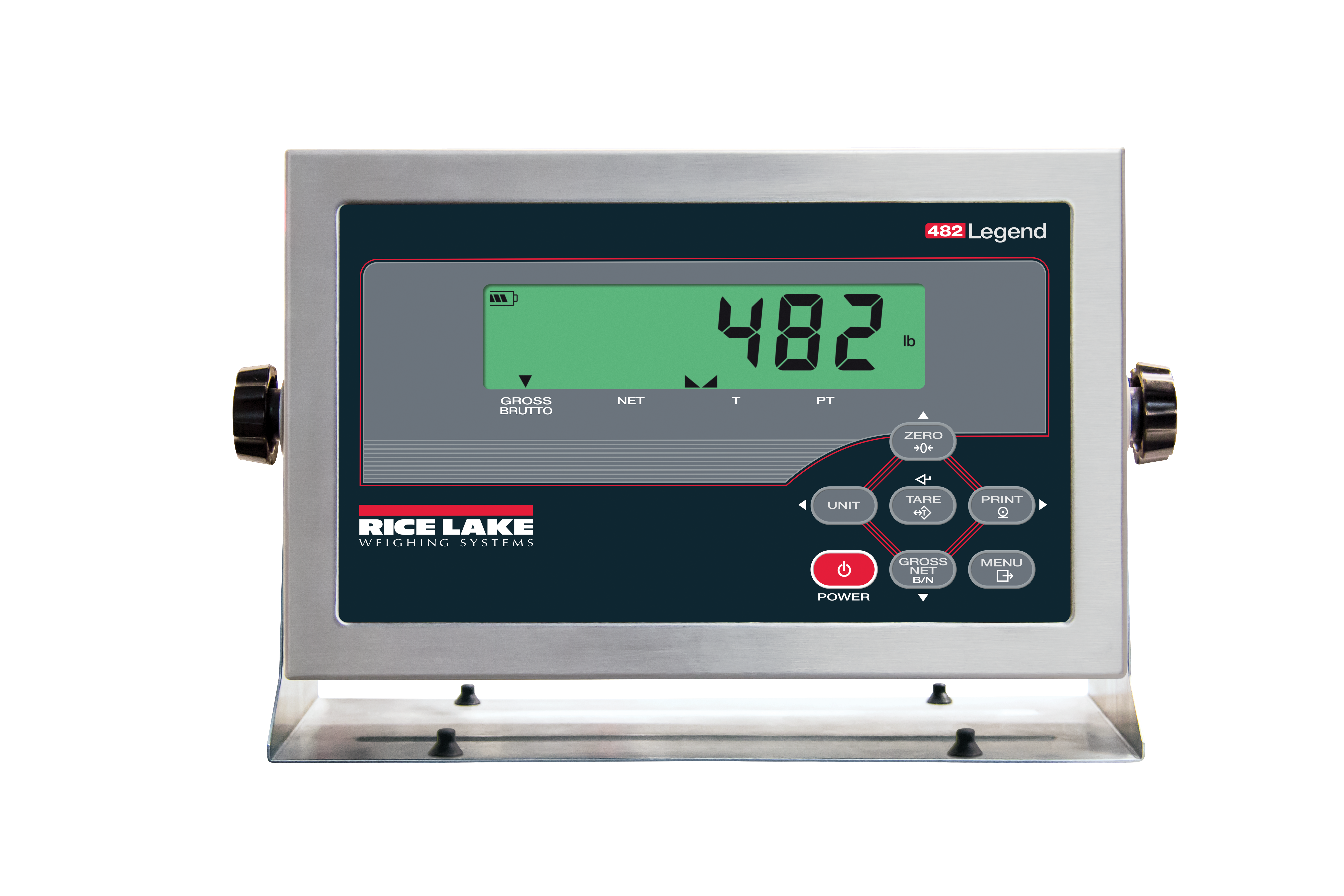

Indicator

  • LED display
  • Time and date battery backed
  • Numeric keypad (482 Plus only)
  • Communication ports

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo ULCUS LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

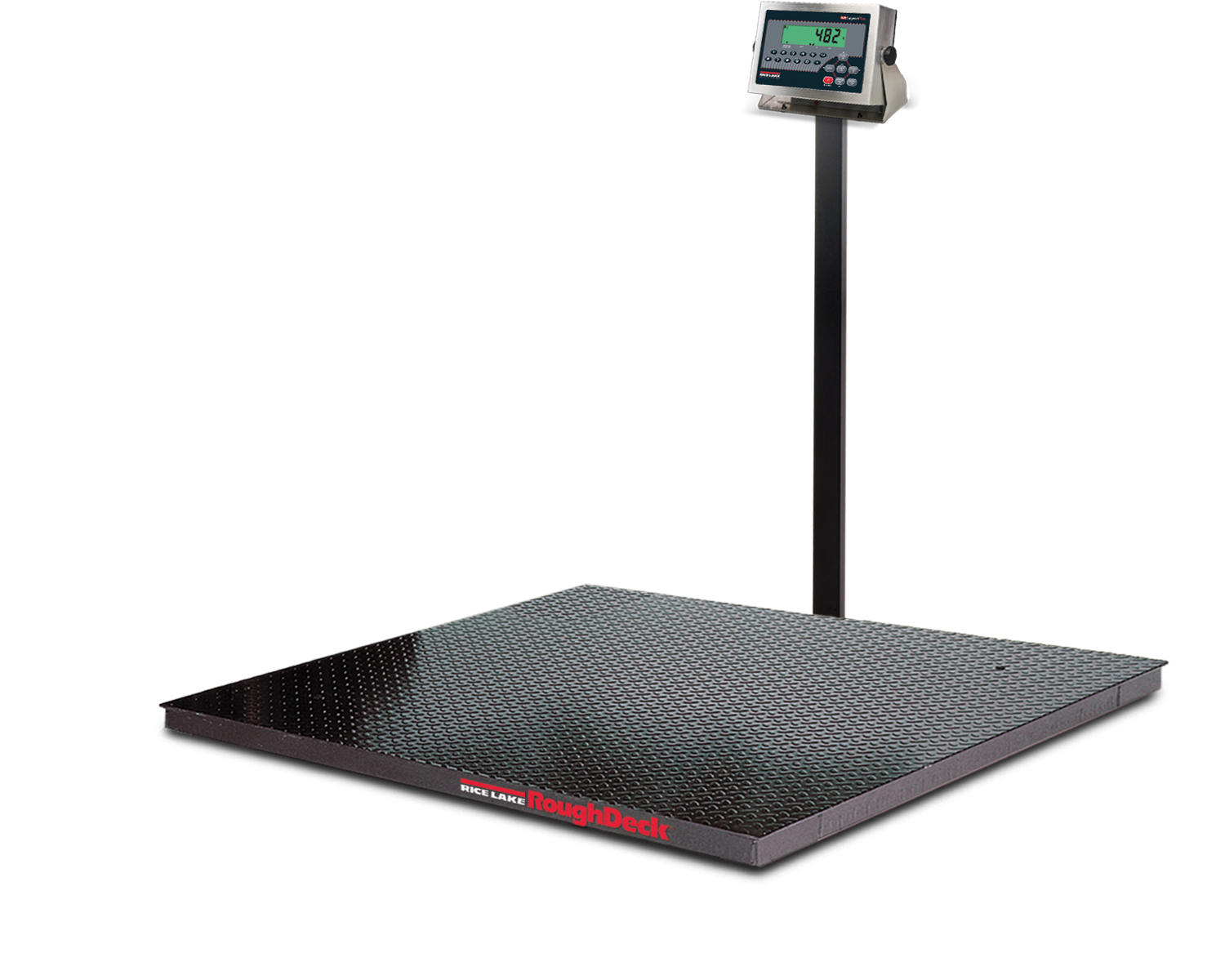

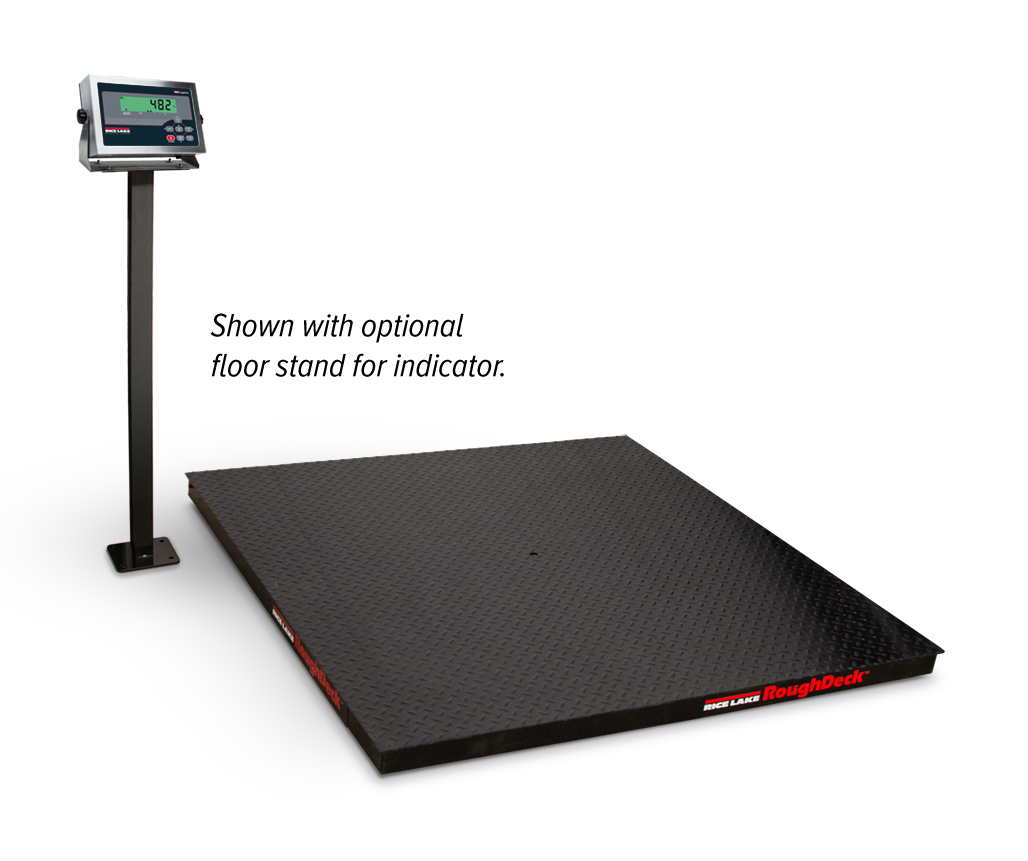

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4 ft RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity



Display:
LCD backlit display, Transmissive/Transflective 0.8 in (20 mm), six-digit, seven-segment

Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Approvals:
NTEP CC 12-123
Measurement Canada AM-5892C, Class III/IIIHD, 10,000d
CE Marked
cULus Listed

Resources / Downloads

Title View Email Category Type
Getting to the Point of Point Loading Email Articles

Title Download Email
Rough-n-Ready Scale/482 Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck Low Profile Floor Scale HP, HP-H, HC and Rough-n-Ready Installation Manual F Download Email Platform Scales|Floor Scales No

Title Collateral Wizard Request Download Email Category
RoughDeck HP, HP-H, SS and HE Series Floor Scales Request Download Email Floor Scales|Platform Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Parts

115 VAC - 4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand

Part # Description List Price Cart
168146 Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/482 Legend 115VAC Factory Calibrated Calibrated

List Price: $2,995.00

168152 Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/482 Plus Legend 115VAC Factory Calibrated Calibrated

List Price: $2,995.00

168147 Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/482 Legend 115VAC Factory Calibrated

List Price: $2,995.00

168153 Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/482 Plus Legend 115VAC Factory Calibrated

List Price: $2,995.00

230 VAC - 4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand

115 VAC 4 ft x 4 ft x 3.5 in RoughDeck (Canadian Weights and Measures Approved) Indicator Package with Tilt Stand

Options

Part # Description List Price Cart
18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $38.00

19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $250.00

126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy

List Price: $275.00

Consult Access ramps, pit frames, bumper guards and portability frames available

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

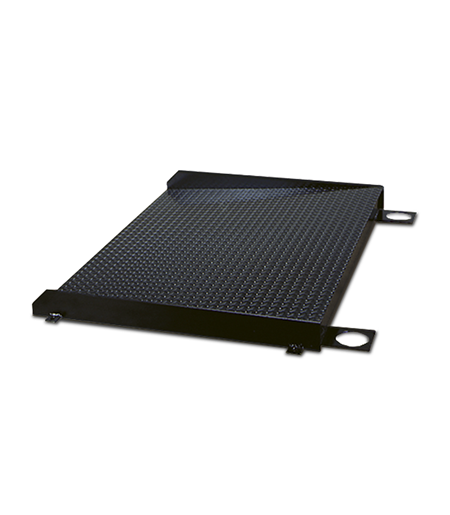

WEB SC Access Ramps

RoughDeck® HP, HP-H, SS and HE Access Ramps

RoughDeck access ramps are available to compliment all RoughDeck floor scales, from hostile environment to stainless steel construction and a vast array of sizes and capacities.

Portals 0 Products 3Bebcb18e8574083934a2d7eef4b10f2 Orig (1)

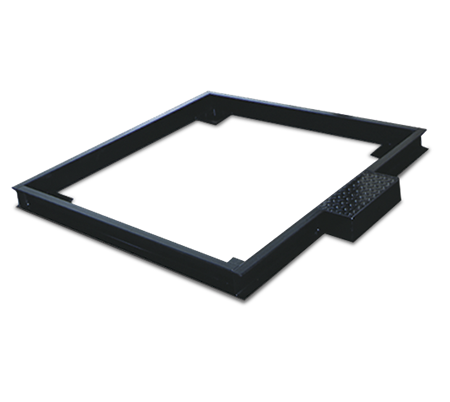

RoughDeck® HP, HP-H, SS, and HE Pit Frames

Rice Lake’s RoughDeck® pit frames are used for pit installations of the RoughDeck floor scale.

RoughDeck® HP, HP-H, SS and HE Bumper Guards 2

RoughDeck® HP, HP-H, SS and HE Bumper Guards

To protect your RoughDeck floor scale from unwanted and potentially damaging contact, install the RoughDeck bumper guards on any or all sides.

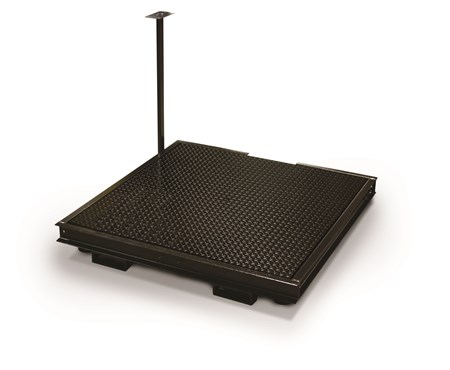

RoughDeck® HP and SS Portability Frame

RoughDeck HP and SS Forklift Portability Frame

The RoughDeck® HP and SS Portability Frame has an indicator stand mount bracket for 120/120 Plus, 882IS/882IS Plus with battery, 880/880 Plus, 480/480 Plus and 680 Synergy.
