TradeRoute® HL Series

Legal for Trade Onboard System Includes
  • 3 or 4 point onboard system RL20000 load cell with 20 ft cable, IP67
  • 80 ft conduit cable
  • Magnetic transport alarm sensor with 15 ft cable
  • JB4SS junction box
  • Hydraulic line locks and hoses
  • 920iĀ® Onboard Weigh Center
  • Hydraulic pump not included
  • Minimum 3,000 PSI recommended to maintain 2,200 PSI during lift

920i Onboard Weigh Center

  • EpsonĀ® TM-U295 printer with splash shield
  • Pre-installed 30 ft power cable, 30 ft load cell cable and inclinometer
  • Transport alarm LEDs
  • Power switch
  • Start/End switch
  • Waterproof enclosure
  • Vibration mounts
  • Mounting bracket to body not included

920i USB Universal with Onboard Software

  • RS-232 port for connecting to ticket printer
  • Standard onboard software
  • USB interface board only

USB Interface Functions

  • Available upon special request using a Type A sealed connection
  • USB interface card on Port 2
  • Supports weigh mode and configuration mode functions
  • Supports upload of databases and 920i configuration file
  • Supports download of databases, 920i configuration file, iRiteĀ®, COD file and firmware file
  • Sanity checks for command errors
  • Create standard database files

Flash Drives

  • Supports USB 2.0 (optional)
  • Create subdirectories by unit ID and database name
  • Use the root directory for generic files

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Legal for Trade Onboard Weighing System

Improve Profitability

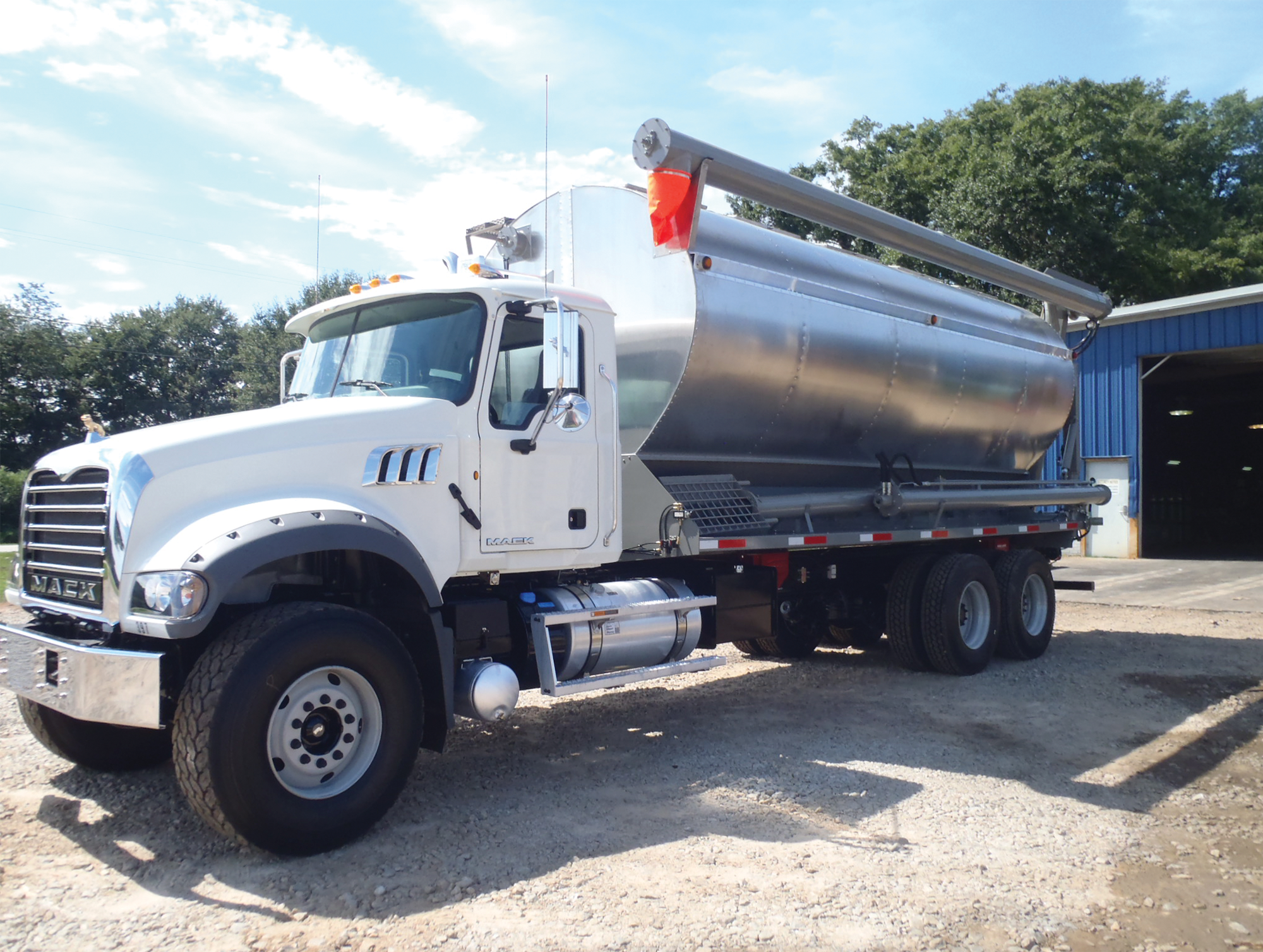

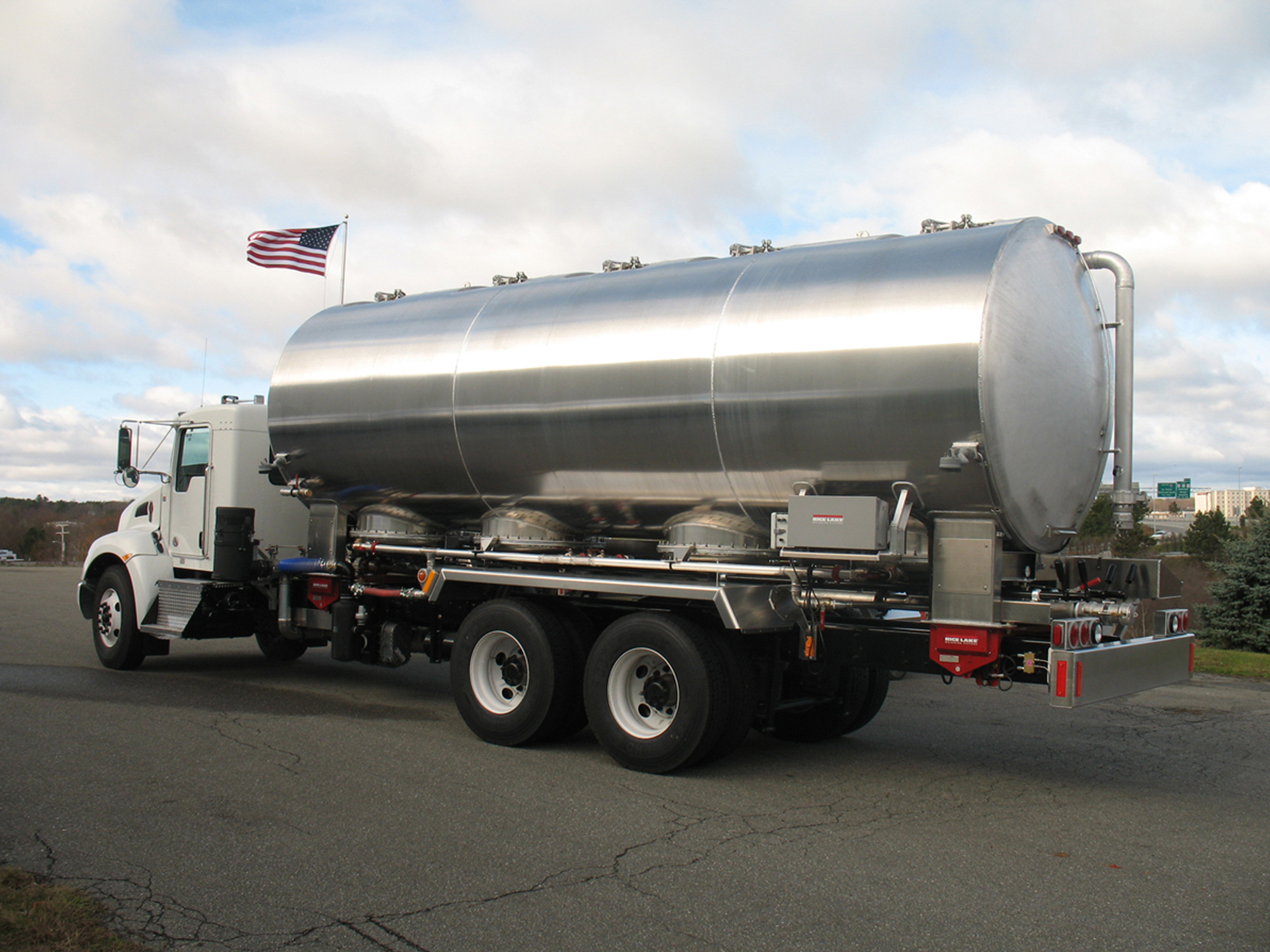

Instead of driving to a local approved truck scale to weigh, add TradeRoute Systems to your existing delivery or collection vehicles. On site billing for materials delivered or collected eliminates guesswork and increases efficiency and customer satisfaction.

Easy to Use

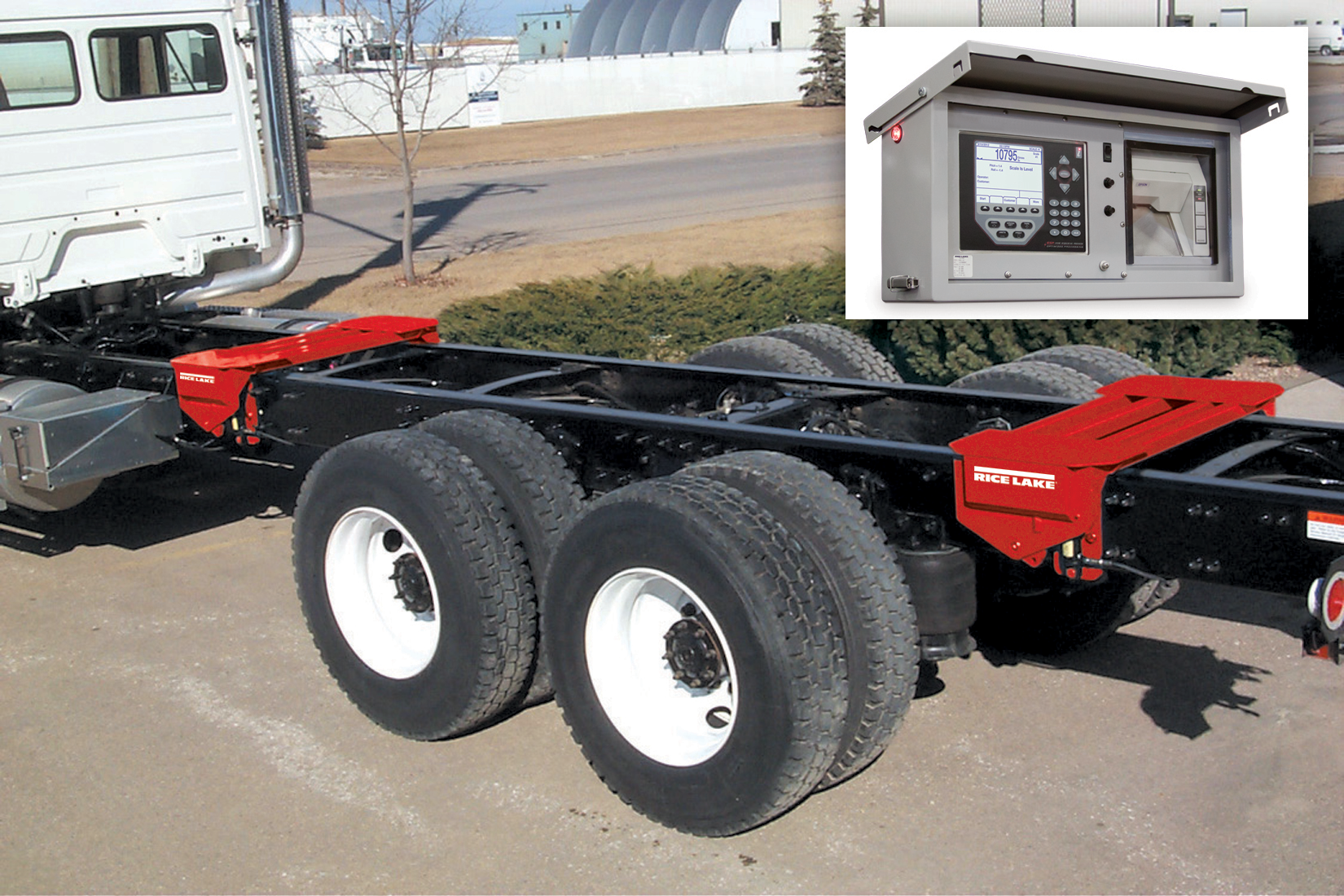

With TradeRoute, weighing is a one-person operation. Hydraulics lift the container off the truck frame and within about five seconds you are ready to begin your weight transaction. The 920iĀ® electronics center user interface sets up quickly and the display prompts walk you through weighing transactions and ticket printouts.

Easy to Install

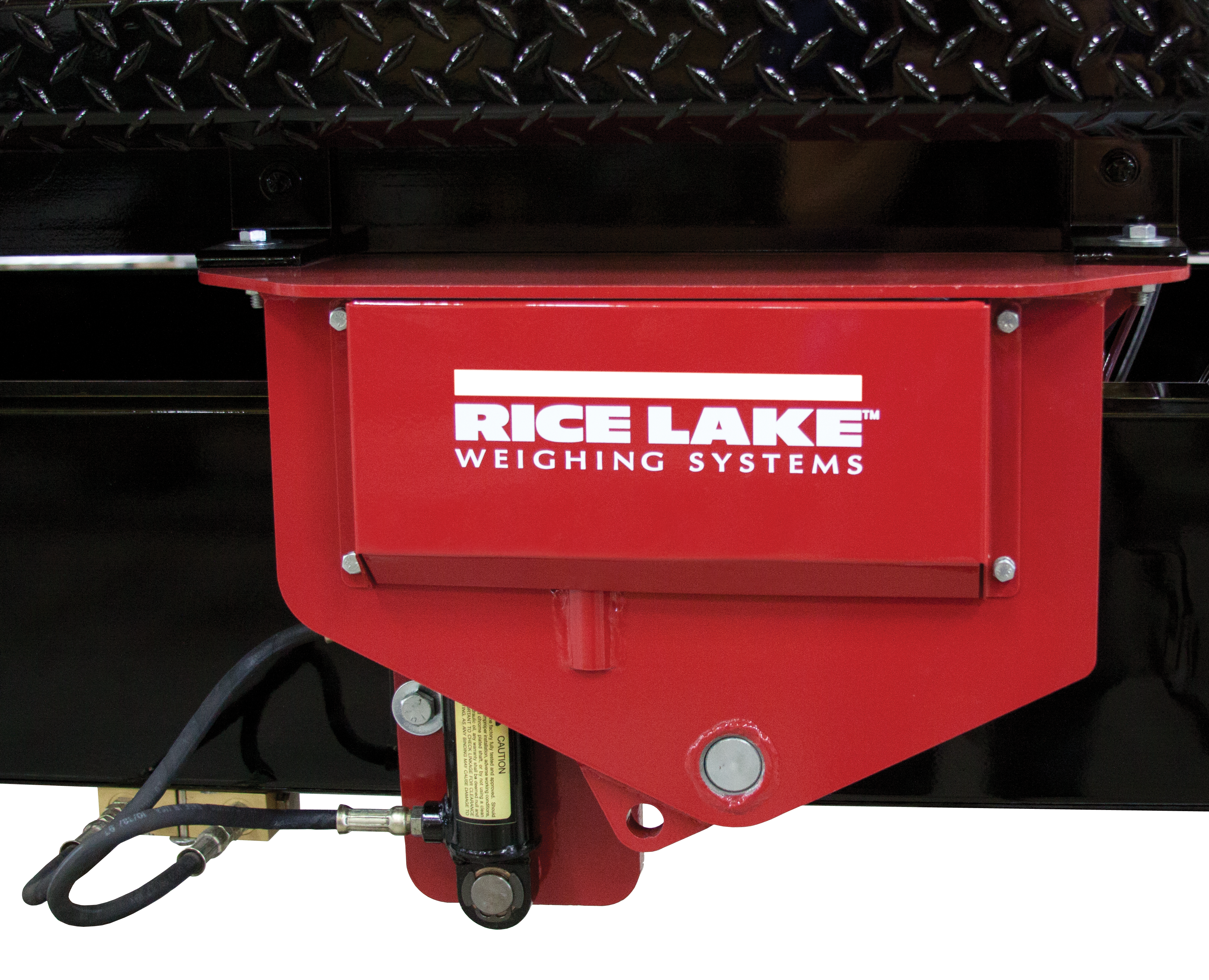

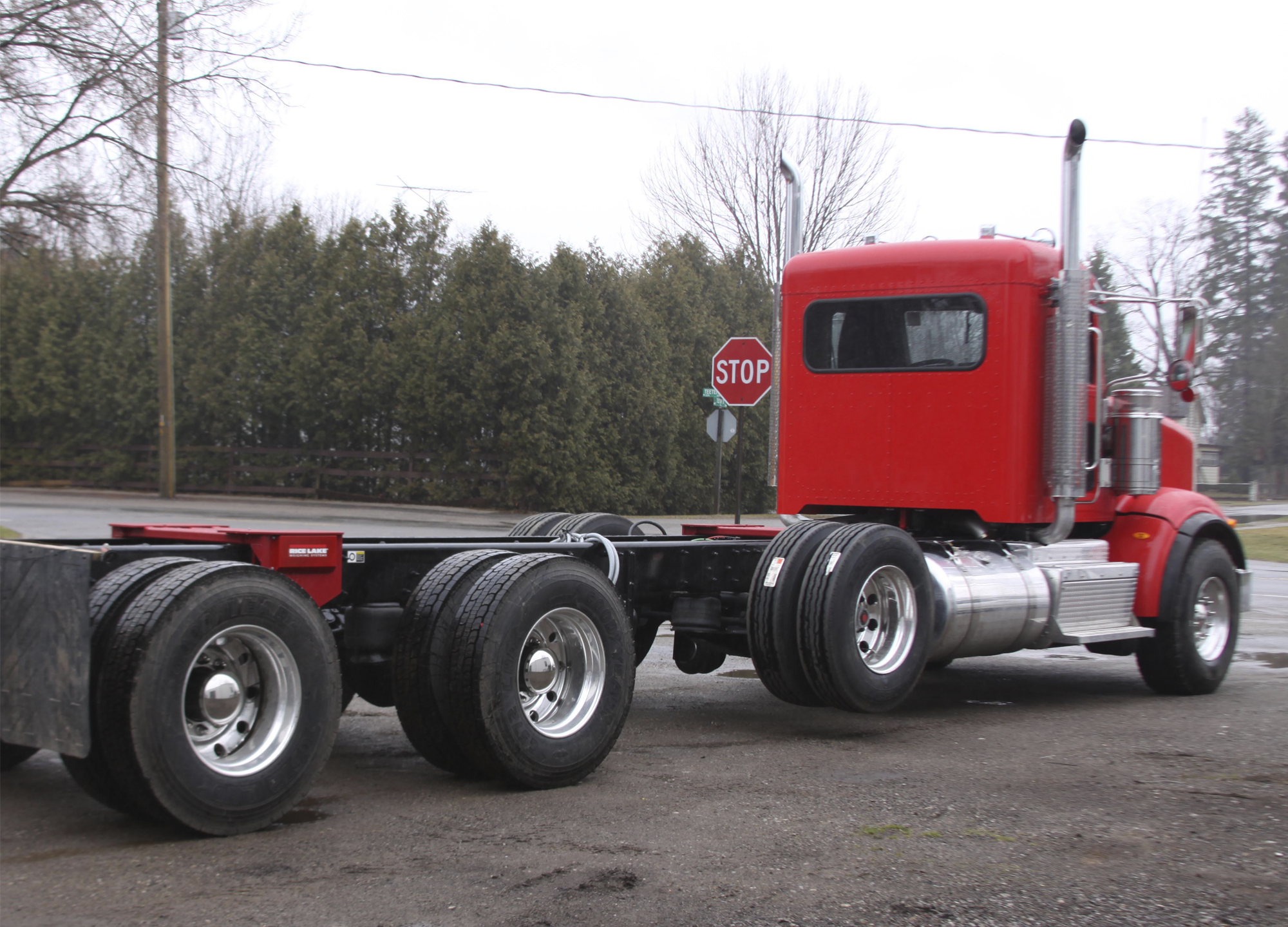

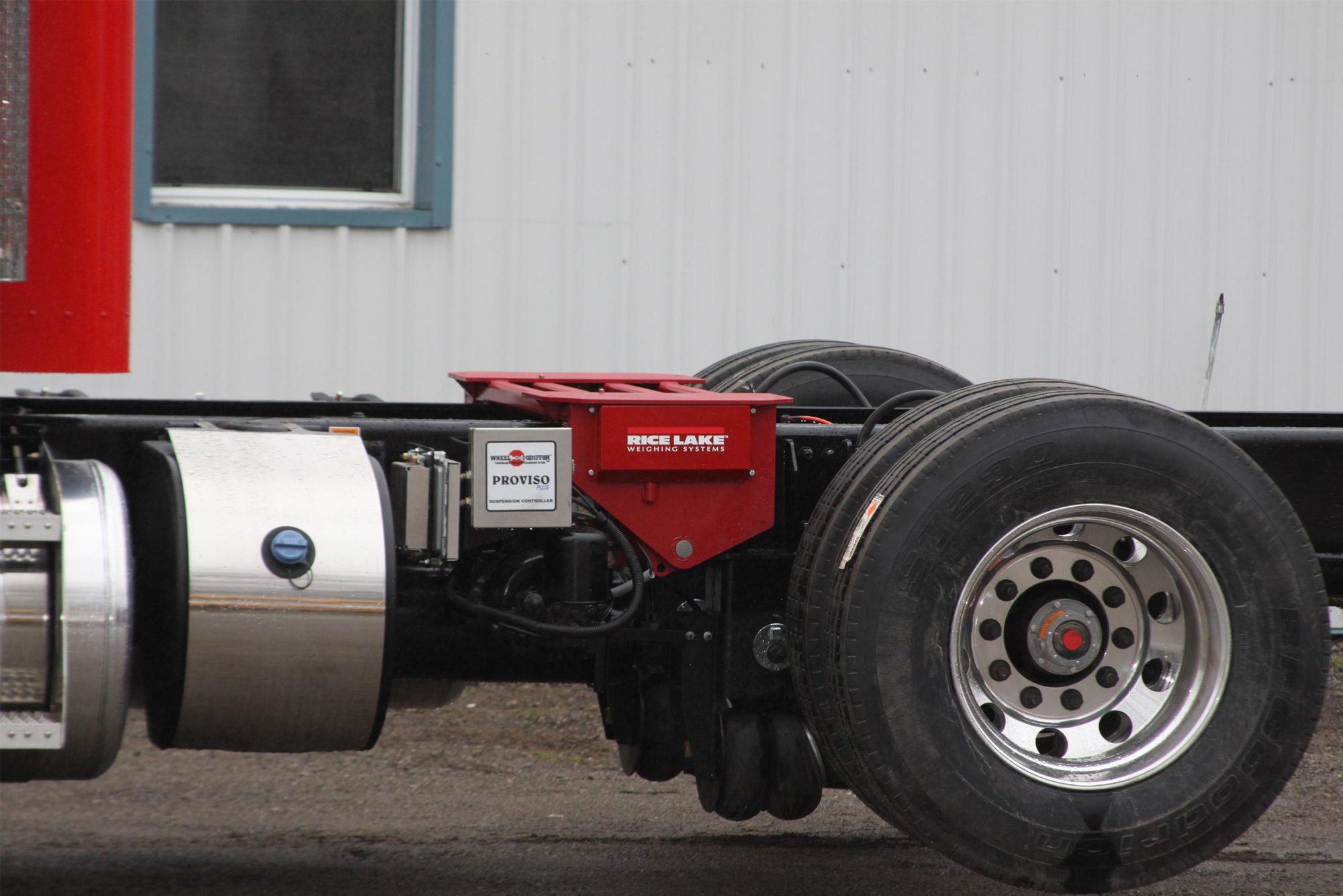

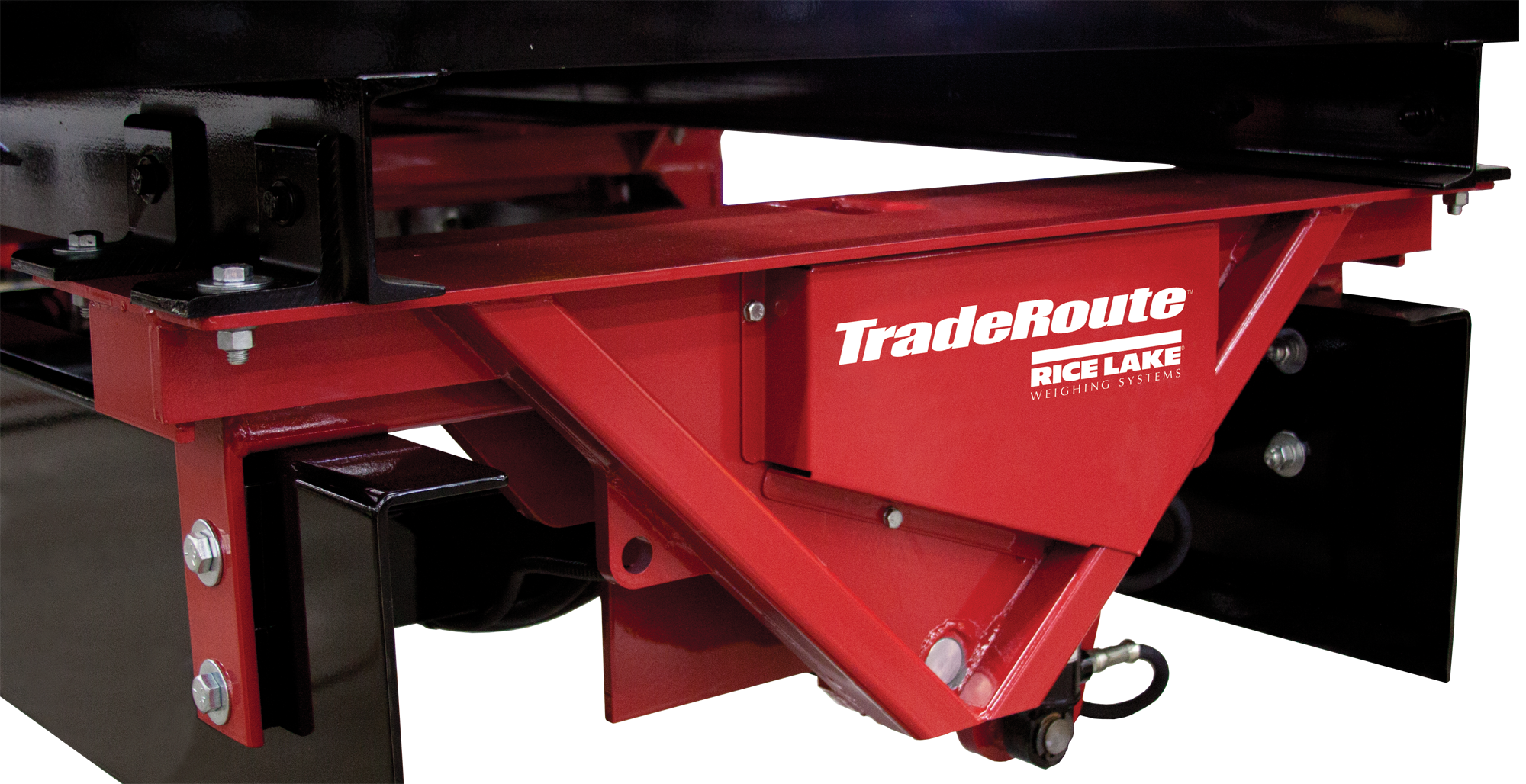

TradeRoute is a low-profile, on-board weighing system that bolts onto your existing straight truck frame. The system is complete with required hardware and simple installation instructions. Your existing truck frame is not modified. Connect the included line locks to the existing hydraulic pump to allow the scale to lift in and out of weighing mode.

Legal for Trade Weighing Anywhere

Weigh on slopes up to six degrees off level and get accurate weights. The 920i electronics center includes an inclinometer that continuously displays pitch and roll in normal weighing mode. When used in NTEP Certified Class III and IIIL applications, you are assured TradeRoute is the most economical and profitable accessory to your delivery and pick-up fleet.

Capacity:
Up to 60,000 lb (30,000 kg)

Load Cell:
Rice Lake RL20000I alloy steel
S-Beam, 20 ft cable

Junction Box:
JB4SS TuffSealĀ®

Rating/Material:
NEMA Type 4X
Stainless steel enclosure

Power Input:
9 to 36 VDC

Weigh Center:
920iĀ® series weight controller
EpsonĀ® TM-U295

Approvals:
NTEP CC 15-102 Class III/IIIL
Measurement Canada AM-4847

Power:
AC voltages: 100 to 240 VAC
Frequency: 50/60 Hz
DC voltages: 12 to 24 VDC

Power Consumption:
AC: 25W (universal) or 65W (others)
DC: 25W for all models

Excitation Voltage:
10 VDC (+/- 5 VDC)
16 Ɨ 350 ohm or 32 Ɨ 700 ohm load cells per A/D card

Analog Signal Input Range:
-45 mV to +45 mV

Analog Signal Sensitivity:
0.3 Ī¼V/graduation minimum at 7.5 Hz
1.0 Ī¼V/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
Ā± 0.01% full scale

Digital I/O:
Six I/O channels on CPU board;
Optional 24-channel I/O expansion boards

Communication Ports:
Four ports on CPU board support up to 115,200bps
Port 1: Full duplex RS-232
Port 2: RS-232 with CTS/RTS; PS/2 keyboard
interface or USB type A and B connectors
Port 3: Full duplex RS-232, 20mA
Port 4: Full duplex RS-232, 2-wire RS-485, 20mA
Optional dual-channel serial expansion boards
Channel A: RS-232, RS-485, 20 mA
Channel B: RS-232, 20 mA

Display:
(W Ɨ H)
4.6 Ɨ 3.4 in (116 Ɨ 86 mm),
320 Ɨ 240 pixel
LCD module with adjustable contrast
Transmissive display
Transflective display (optional)

Keys/Buttons:
27-key membrane panel, tactile feel, PS/2 or USB port for external keyboard connection

Temperature Range:
Certified: 14 Ā°F to 104 Ā°F (-10 Ā°C to 40 Ā°C)
Operating: 14 Ā°F to 122 Ā°F (-10 Ā°C to 50 Ā°C)

Rating/Material:
NEMA Type 4X, Type 12, IP66
Stainless steel

Weight:
Universal enclosure: 9.5 lb (4.3 kg)
Wall mount enclosure: 23.0 lb (10.4 kg)
Panel mount enclosure: 8.5 lb (3.9 kg)
Deep universal: 11 lb (5.0 kg)

Warranty:
Two-year limited

EMC Immunity:
10 V/m

Approvals:
NTEP CC 01-088, Class III/IIIL 10,000d
Measurement Canada AM-5426,
Class III/III HD 10,000d
OIML R76/2006-A-GB1-19.08
EU Test Certificate TC11584
UL/cUL Listed (Universal, Deep Universal and Wall Mount)
cULus Recognized (Panel Mount)
cULus Listed 508A (Custom Wall Mount)
CE Marked

Full Scale Output:
3.0 mV/VĀ

Output Resistance:
350 (Ā± 3) ohm

Input Resistance:
385 (Ā± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 Ā°F to 104 Ā°F (-10 Ā°C to 40 Ā°C)
Operating range
0 Ā°F to 150 Ā°F (-18 Ā°C to 65 Ā°C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)Ā

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft
30 ft (pn 17044 and 17045)
35 ft (pn 21356)

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
Two-year limited

Approvals:
NTEP 90-158
cFMus

Cable Fittings:
P/N 88956:

(4) PG7 0.118 to 0.255 strain relief
(2) PG11 0.197 to 0.394 strain relief
P/N 107700:
(4) PG9 0.138 to 0.315 strain relief
(2) PG11 0.197 to 0.394 strain relief

Rating/Material:Ā Ā  Ā
NEMA Type 4X
Stainless steel

Connectors:
Spring clamp screwless, 12 to 28 AWG

Trimming:
Individual cell, signal trim

Temperature Range:
Operating
0 Ā°F to 122 Ā°F (-18 Ā°C to 50 Ā°C)

Potentiometers:
100,000 ohm, 25-turn cermet

Circuit Board:
3.8 Ɨ 2.3 in, with conformal coating

Warranty:
One-year limited

Approvals:
cFMus

Print Speed:
1.9 to 2.3 lines per second (5 Ɨ 7 character, 3 dot line spacing)

Column Capacity:
35/42 columns

Characters Per Line:Ā
35 standard font

Print Area:Ā
2.59 in W (65.8 mm W)

Character Formation:Ā
5 Ɨ 7 and 7 Ɨ 7 dot matrix

Character Height:Ā
0.11 standard font

Character Set:Ā
Full 96-character ASCII; with software control, 32 international characters, 128 Ɨ 2 graphic characters

Line Spacing:Ā
0.16 in (4.06 mm) software programmable in 1/60 in units

Printhead Life:Ā
Approximately 100 million strokes/pin

Form Thickness:Ā
Single-ply: 0.003 to 0.009 in (0.08 to 0.23 mm)Ā
Copy paper: 0.003 to 0.014 in (0.08 to 0.36 mm)

Ribbon:
Cassette-type purple ribbon
Ribbon life is approximately 1.5 million characters (continuous prints)
Black ink also available

Serial Interfaces:Ā
RS-232 (DB-25F) compatibleĀ

Baud Rates:
1200, 2400, 4800, 9600, selectable

Parity:Ā
7 or 8 bits, none, even or odd

Stop Bits:Ā
1 or more

Handshaking:Ā
DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
(L Ɨ W x H)
7.49 Ɨ 7.08 Ɨ 3.99 in
(190.5 Ɨ 180 Ɨ 101.5 mm)

Weight:
9 lb

Approvals:
UL listed
CSA certified
CE marked

Warranty:
One-year limited
(includes printhead)

Resources / Downloads

Title View Email Category Type
Ready to Roll View Email Vehicle Scale System Application Story

Title Download Email
TradeRoute HL Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
TradeRoute HL Series Installation Manual H Download Email Vehicle Scale System|Onboard Weighing No
TradeRoute Operation Manual (Legal for Trade) C Download Email Vehicle Scale System|Onboard Weighing No
TradeRoute Calibration Techniques Download Email No

Title Collateral Wizard Request Download Email Category
TradeRoute Legal for Trade Onboard Weighing System Request Download Email Onboard Weighing
TradeRoute Pre-Sale Checklist Download Email Onboard Weighing

Title View Download Email Category
TradeRoute 3D Demonstration View Download Email Onboard Weighing Systems
TradeRoute Legal for Trade Onboard Vehicle Scale Overview View Download Email Onboard Weighing Systems
TradeRoute Junk Collection Vehicle Application View Download Email Onboard Weighing Systems

Parts

TradeRoute Package (Includes 920i Weigh Center)

Part # Description List Price Cart / Quote
131098 Scale Sys, TradeRoute 15K , AN15L-3, Includes: (1) OB5-SGL5 & (1) OB10-DBL5 modules, 920i WeighCenter (131442), NTEP 15000x5 LB

List Price: $14,900.00

131099 Scale Sys, TradeRoute 20K , AN20L-4, Includes: (2) OB10-DBL5 modules, 920i WeighCenter (131442), NTEP 20000x5 LB

List Price: $18,200.00

131100 Scale Sys, TradeRoute 30K , AN30L-3, Includes: (1) OB10-SGL10 & (1) OB20-DBL10 modules, 920i WeighCenter (131442), NTEP 30000x10 LB

List Price: $16,300.00

131101 Scale Sys, TradeRoute 40K , AN40L-4, Includes: (2) OB20-DBL10 modules, 920i WeighCenter (131442), NTEP 40000x10 LB

List Price: $18,200.00

131103 Scale Sys, TradeRoute 60K , AN60L-4, Includes: (2) OB30-DBL15 modules, 920i WeighCenter (131442), NTEP 60000x10 LB

List Price: $20,400.00
