Rice Lake RLCSP1 Stainless Steel, Compression Canister Load Cell
Welded-seal, stainless steel canister cell designed for vehicle and process applications. High capacity load cell is built for reliability, durability and extreme precision. Ideal for applications where optimal precision and durability are needed. Capacities range from 25,000 lb to 200,000 lb. Complete with 35 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RLCSP1 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: Cable Diameter: Cable Color Code: Warranty: Approvals: |
RLCSP1 Load Cell Dimensions
| Rated Capacity | A | B | D | F | G | H | L-DEPTH |
|---|---|---|---|---|---|---|---|
| lb/in | |||||||
| 25,000 to 50,000 | 3.00 | 3.25 | 6.00 | 0.40 | 1.25 | 1/2-20 UNF | 0.31 |
| 100,000 | 4.00 | 5.00 | 6.00 | 0.51 | 2.31 | 3/4-16 UNF | 0.56 |
| 200,000 | 6.00 | 7.25 | 17.00 | 1.04 | 3.13 | 3/4-16 UNF | 0.75 |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
35ft Cable
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 32702 | Load Cell,CSR RLCSP1-25k- T10 25,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67 |
List Price: $1,903.00 |
|
| 32701 | Load Cell,CSR RLCSP1-50K- T10 50,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67 |
List Price: $1,903.00 |
|
| 32700 | Load Cell,CSR RLCSP1-100K -T10 100,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67 |
List Price: $2,226.00 |
|
| 32699 | Load Cell,CSR RLCSP1-200K -T10 200,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67 |
List Price: $3,175.00 |
80ft Cable
Related Products

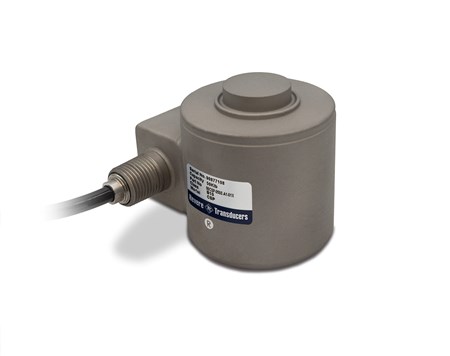

VPG Revere CSP Stainless Steel, Compression Canister Load Cell
