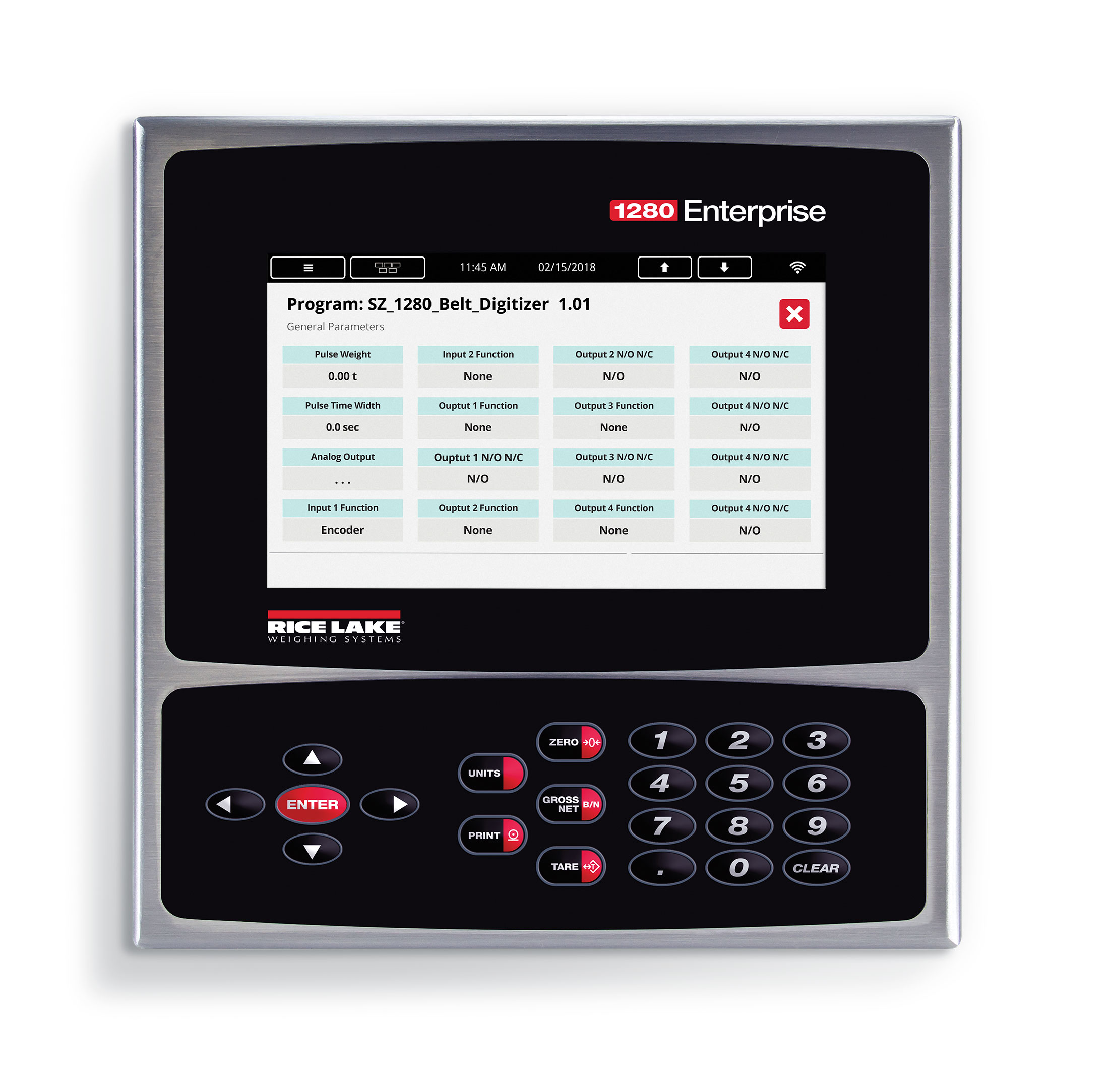

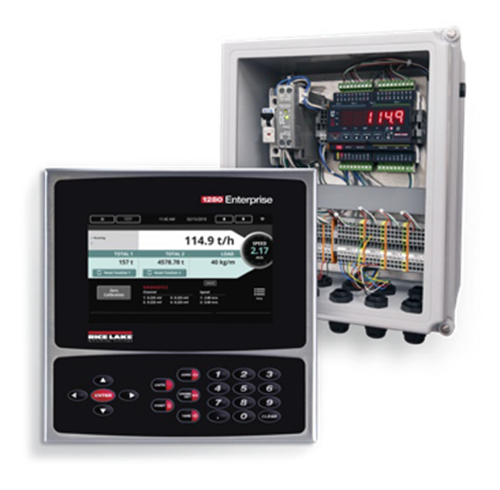

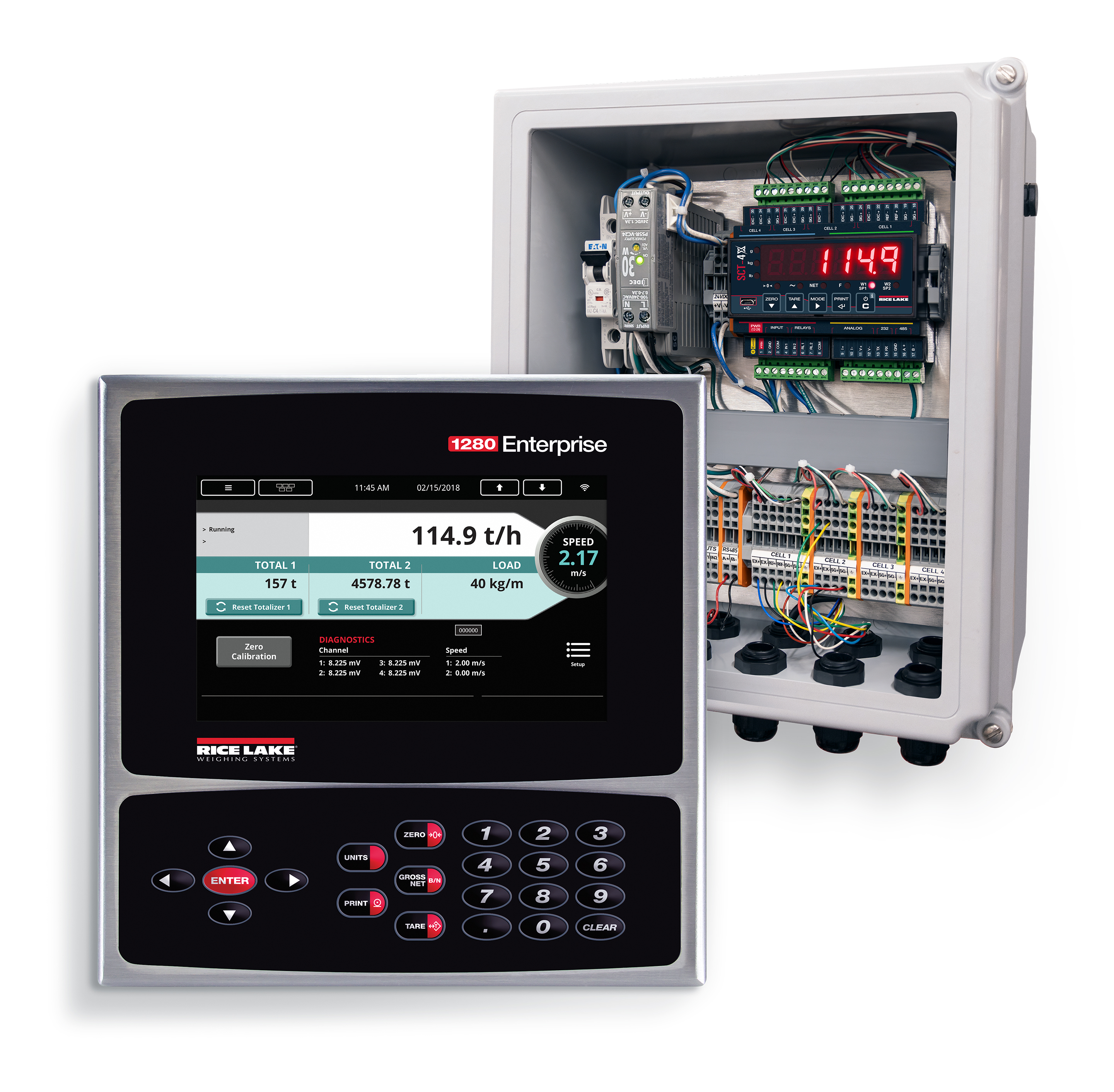

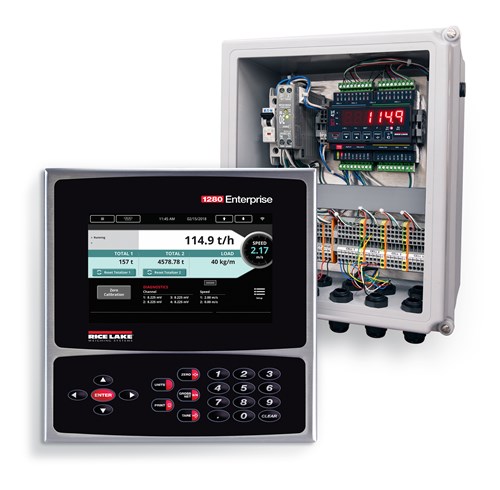

1280 HMI Belt Scale System with SCT-4XD Integrator

Power:
AC voltages: 100 to 240 VAC; 50/60 Hz
DC voltages: 11 to 30 VDC

Power Consumption:
60W

Excitation Voltage:
10 VDC (±5 VDC)
16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz to 120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity
± 0.01% full scale

Digital I/O:
Eight I/O channels on CPU board
Optional 24-channel I/O expansion boards

Communication Ports:
Port 1 & 2: Full duplex RS-232 with CTS/RTS, RS-422/485
Baud rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
USB host: (2) Type A connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHz

Onboard:
Selectable filters: Three stage, Adaptive or Damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card (sold separately)

Display:
Seven-inch, 800 × 480 pixel, 500 or 1,000 NIT

Keys/Buttons:
22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 131 °F (-20 °C to 55 °C)

Rating/Material:
Universal: IP69K

Weight:
Universal enclosure: 11 lb (4.9 kg)

Warranty:
Two-year limited

EMC Immunity:
10 V/m

Power:
12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 120 mA (up to 16 × 350 ohm cells)

Analog Signal Input Range:
±39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

Sample Rate:
Single-channel up to 2,600 Hz, software selectable
4 channels up to 100 Hz, software selectable

Analog Output (if equipped):
Opt. isolated, 16-bit
0 to 20 mA, 4 to 20 mA (maximum 350 ohm)
0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)

Digital I/O:
Two inputs: 12/24 VDC
Two outputs: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
(1) RS-485 half duplex, (1) RS-232 full duplex
1 USB Micro B connector (device) for PC configuration

Pulse Input:
Dual inputs for redundancy

Display:
Six-digit 0.31 in (8 mm), red LED

Keys/Buttons:
Flat membrane panel, tactile feel

Dimensions:
(L × W × H)
Overall: 10.5 × 6.26 × 12.5 in
(266 × 159 × 318 mm)

Mounting Tabs:
8.0 × 13.12 in
(203 × 333 mm)

Weight:
27 lb

Rating/Material:
NEMA 4X (if using supplied enclosure)

Warranty:
One-year limited

Approvals:
CE-M EN 45501
